Krauss Maffei 1100-12000 MX
Krauss Maffei - 1100-12000 MX
2008
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Plastics Processing Machinery
- Kraus Maffei 1100-12000 MX Injection moulding machine

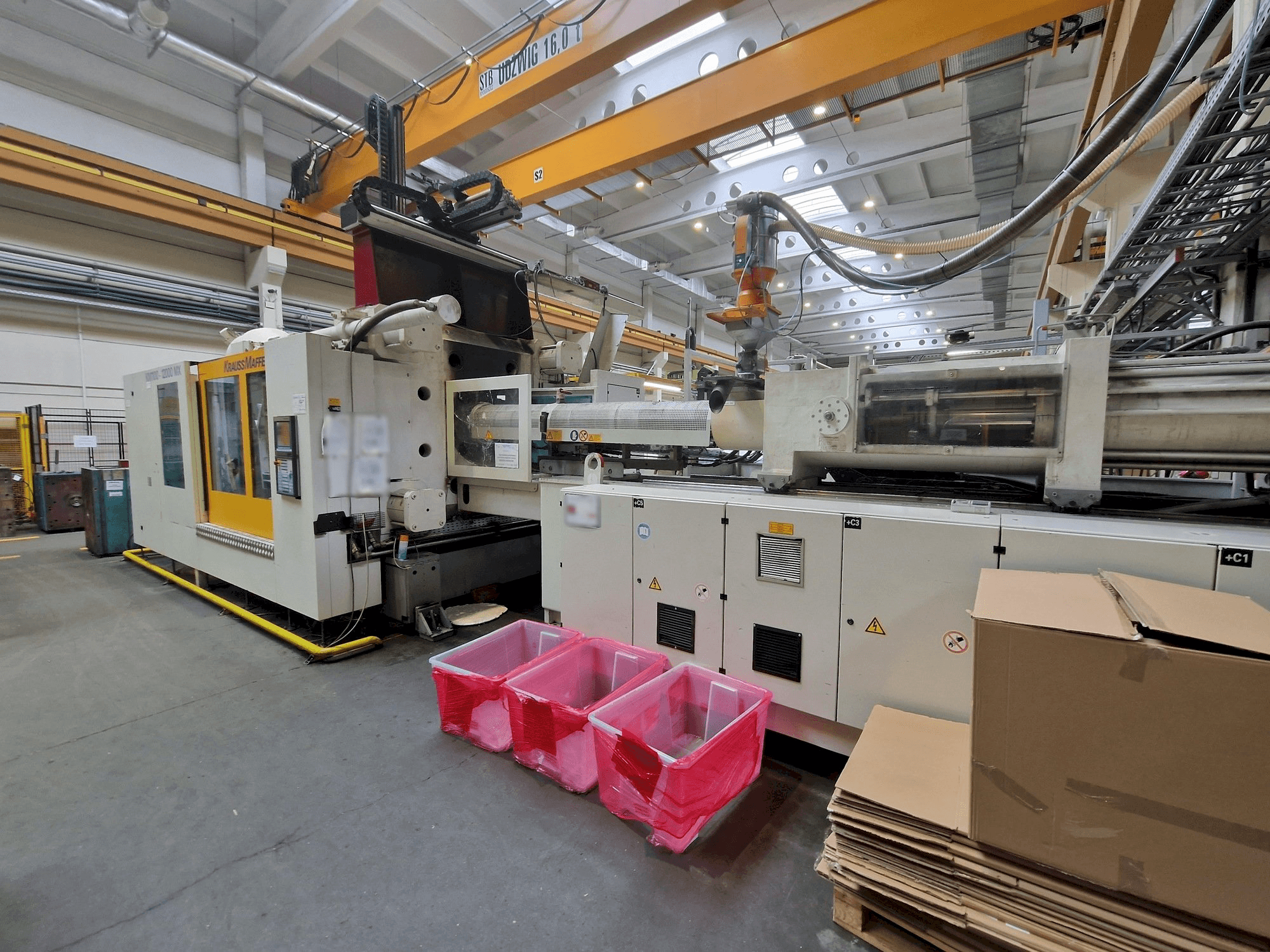

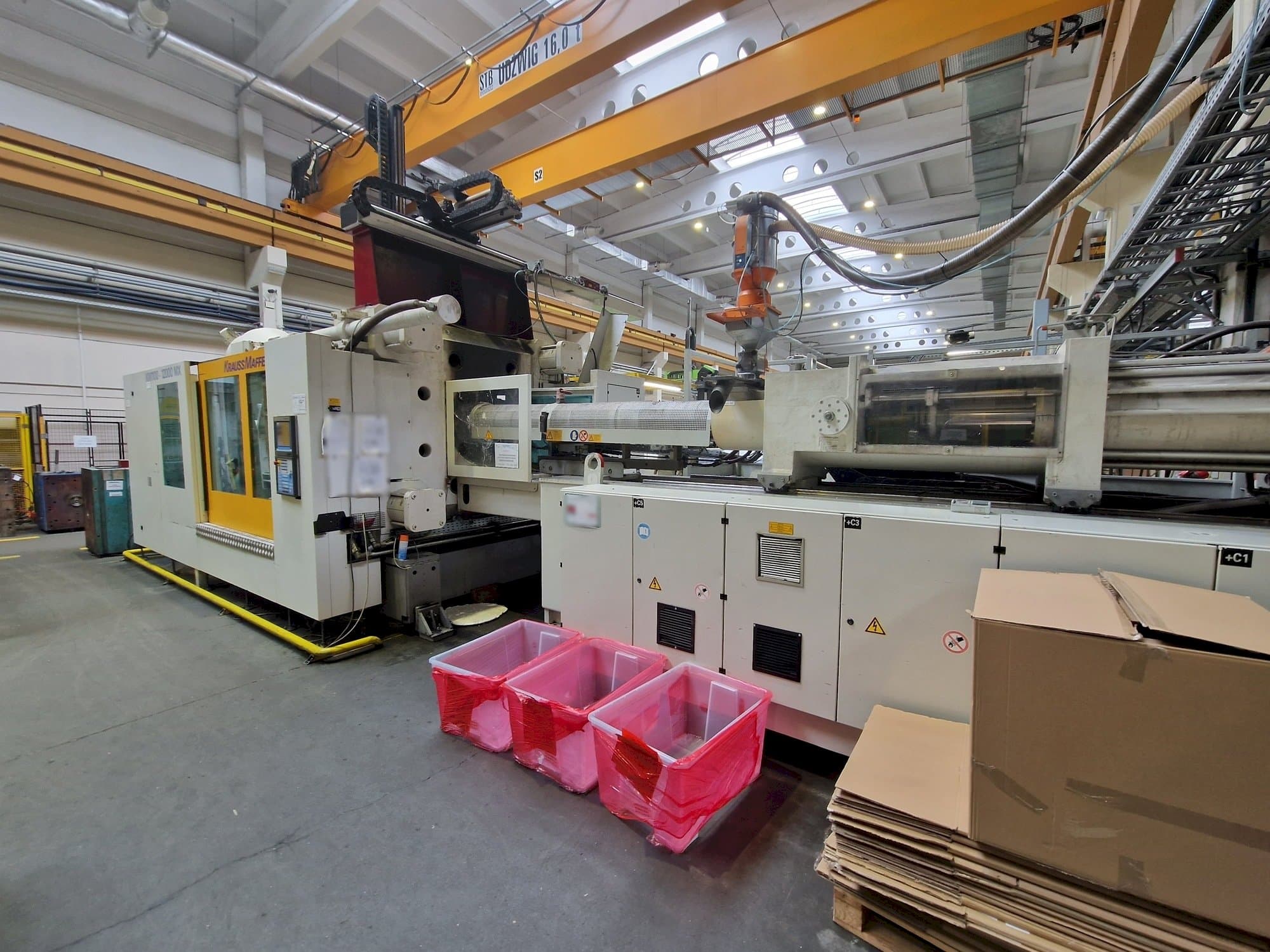

This Kraus Maffei 1100-12000 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 95845 production hours. It is equipped with a Krauss Maffei MC5 control unit. The machine has a clamping force of 11000 kN, is in good condition and well maintained.
Overview
- brand: Krauss Maffei
- year: 2008
- MODEL: 1100-12000 MX
- production hours: 95845
- application type: Injection Moulding
- Location: Poland
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Krauss Maffei
- GINDUMAC ID: PL-INJ-KRA-2008-00003
Technical Information
General Data
- Measurements width: 12470 mm
- Measurements depth: 3650 mm
- Measurements height: 2820 mm
- Machine weight: 73000 kg
Control Unit
- Brand: Krauss Maffei
- Model: MC5
Injection Unit
- Screw diameter: 120 mm
- Shot weight: 6175 g
- Stroke volume: 6786 CM³
- Injection pressure: 1758 bar
Clamping unit
- Clamping force: 11000 kN
- Opening stroke: 2000 mm
- Distance between bars: 1550 / 1250mm
- Mould height min: 600 mm
- Mould height max: 1200 mm
- Ejector stroke: 0 – 300 mm
Additional Information
- Technical Machine Benefits:
- - Clearance between the tables 2600 mm, capacity injection: 6786 cm3
- - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
- - Table whole tread: m24, quantity core pulling: 2 pcs
- - Quantity of hydraulic oil: 2440 liters
- - Motor: 132 / 147 kw, heating power: 85 kw
- - Safeguard the door: pneumatic, air valves: 5 valves
- - Valve terminal: 4 nozzles
- Qualitative Machine Benefits:
- - The machine is in very good condition, full documentation, and service history available, ready for tests.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
