- Krauss Maffei 380-2700 C3 Injection moulding machine

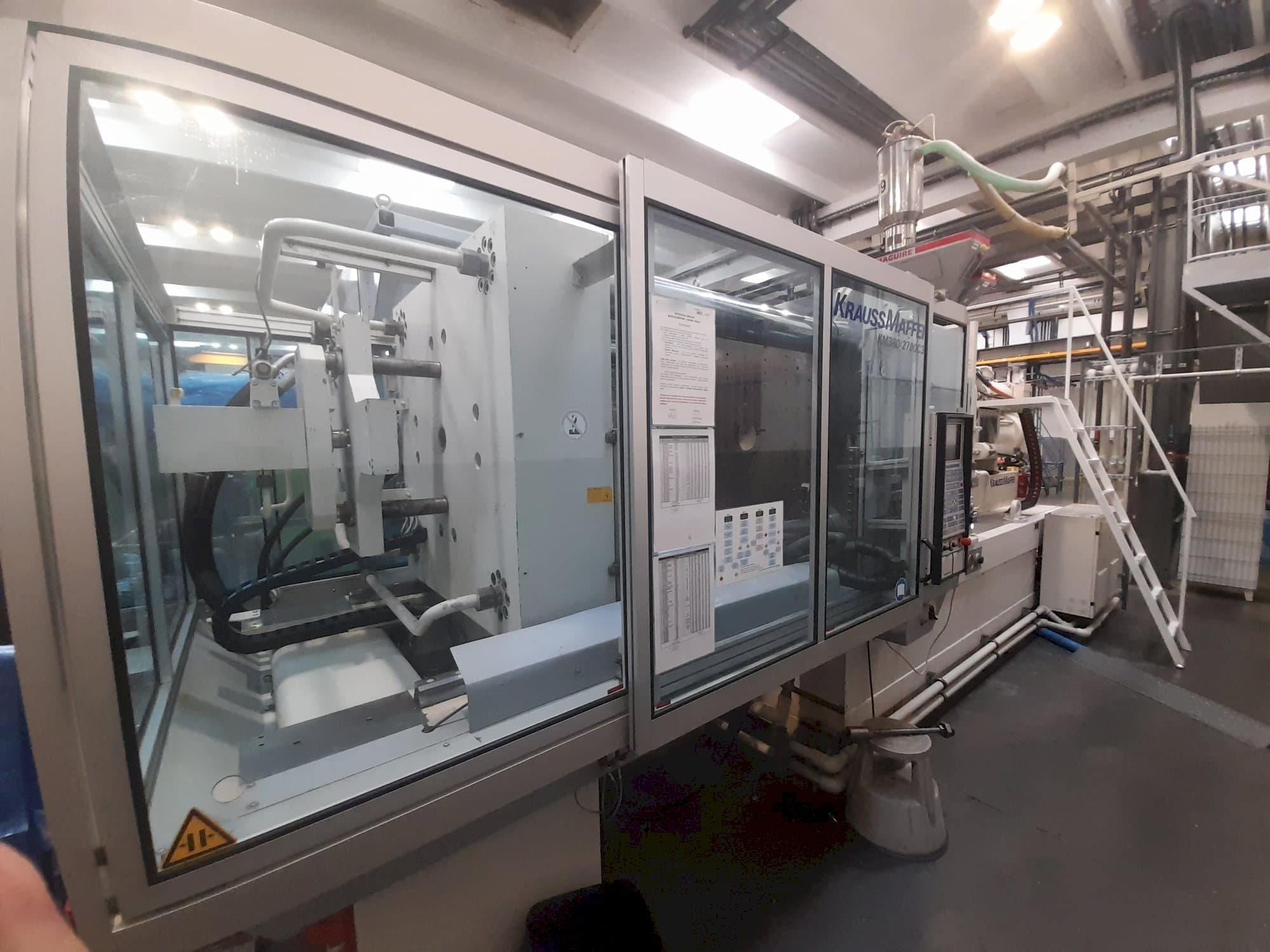

This Krauss Maffei 380-2700 C3 Injection moulding machine was made in the year 2008 and has 84588 hours. It is equipped with a Krauss Maffei MC4 control unit. The machine has a clamping force of 3500 kN and a screw diameter of 80 mm.
Overview
- brand: Krauss Maffei
- year: 2008
- MODEL: 380-2700 C3
- production hours: 84588
- application type: Injection Moulding
- Location: Poland
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Krauss Maffei
Technical Information - Krauss Maffei 380-2700 C3
General Data
- Measurements width: 7370 mm
- Measurements depth: 2310 mm
- Measurements height: 2510 mm
- Machine weight: 23200 kg
Control Unit
- Brand: Krauss Maffei
- Model: MC4
Injection Unit
- Screw diameter: 80 mm
- Shot weight: 1304 g
- Stroke volume: 1433 CM³
- Injection pressure: 1829 bar
Clamping unit
- Clamping force: 3500 kn
- Opening stroke: 250 kn
Additional Equipment
- - has a hydraulic ejector , hydraulic core x 1 , pneumatic core x 1 and single firing pin closure - no sequence
Additional Information
- Technical Machine Benefits:
- - Tie bar spacing (h) 800 mm
- - Tie bar spacing (v) 800 mm
- - Platen length: 1270 mm
- - Platen width: 1200 mm
- - Opening of the press: 1020 mm
- - L/d ratio: 23
- Qualitative Machine Benefits:
- - It is connected and ready for tests
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
