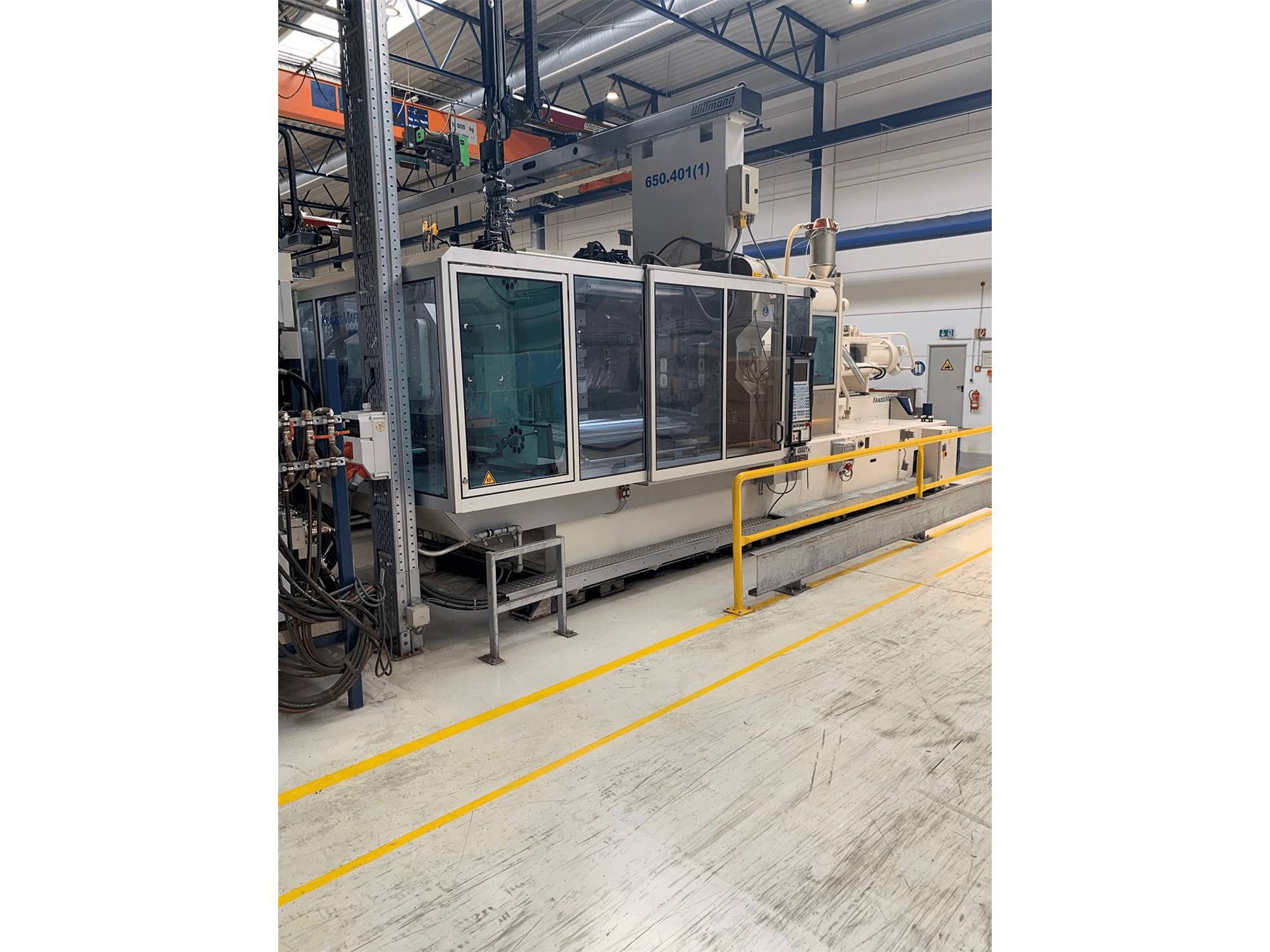

Front view of Krauss Maffei 650-2700-520 CL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 650-2700-520 CL

Photo Gallery

Krauss Maffei - 650-2700-520 CLDE-INJ-KRA-2005-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 650-2700-520 CL Injection moulding machine

This Krauss Maffei 650-2700-520 CL Injection moulding machine was built in Germany in 2005. It has 80000 production hours. It can works with a clamping force of 6500 kN and an opening stroke 1300 mm. The machine includes a Wittmann W643 - 352 handling tool.

Overview

brand: Krauss Maffei
year: 2005
MODEL: 650-2700-520 CL
production hours: 80000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Krauss Maffei 650-2700-520 CL

Technical Specification

Screw Diameter: 90 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Temp. Control units: 48
Capacity per zone: 2 kw
Number of hydraulic core pull fs/ms/ts: 2 / 2
Centering bar: 200/200
*handling tool: wittman w643 - 352 (2005)
*x-axis: 1200 mm
*y-axis: 2400 mm
*z-axis: 6000 mm

Technical Machine Benefits

Nozzle radius: 35 mm
Number of mould needles: 24
Clearance tie bars (h): 1000
High between tie bars (v): 930
Moveable way 2 inj. : 154 - 850 mm
Moveable high 2 inj. : ± 50
Distance 2 inj. To center: 330 mm
Max. Mould weight: 11400 kg
Max. Mould weight moved plate: 7600 kg
Max. Weight incl. Control cabinet without oil: 33370 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
