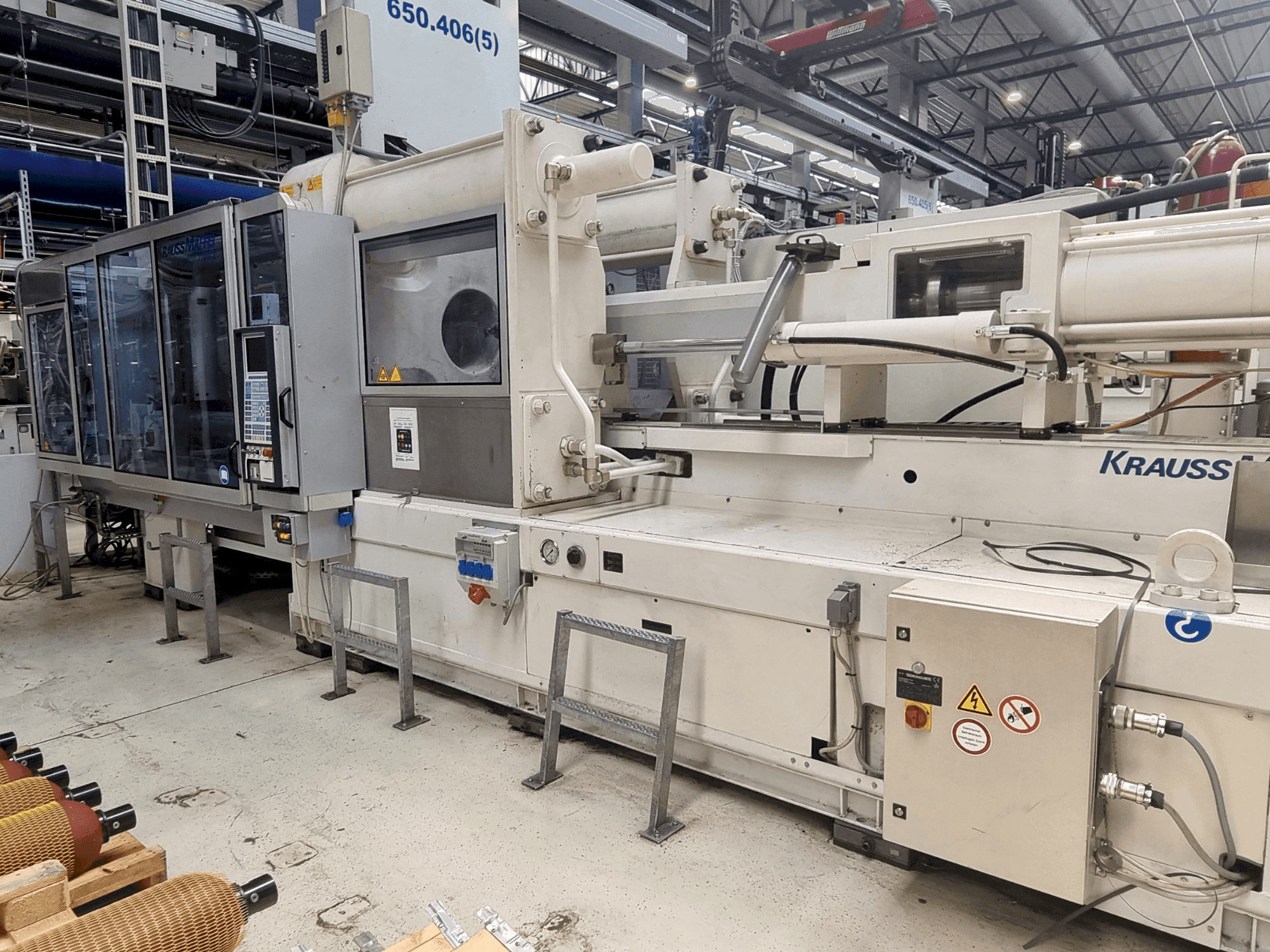

Front view of Krauss Maffei 650-2700 C2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 650-2700 C2

Photo Gallery

Krauss Maffei - 650-2700 C2DE-INJ-KRA-2004-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei 650-2700 C2 For Sale | gindumac.com

This hydraulic injection moulding machine was manufactured in 2004 by Krauss Maffei. It features a clamping force of 6500 kN and a screw diameter of 80 mm, capable of handling significant mould weights up to 11400 kg. The machine includes a horizontal assembly for efficient operation and a needle shut-off nozzle for precise injection control. A great opportunity to buy this Krauss Maffei 650-2700 C2 hydraulic injection moulding machine. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: Krauss Maffei
year: 2004
MODEL: 650-2700 C2
production hours: 30870
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Krauss Maffei 650-2700 C2

Technical Specification

Clamping Force: 6500 kN
Screw Diameter: 80 mm

Additional Information

Additional equipment

Needle shut-off nozzle (Injection Unit 1): Yes
Centering bar: Tecnomagnete

Machine Benefits

Technical Machine Benefits

Plasticising stroke (injection unit 1): 287 mm / plasticising stroke (injection unit 2): 162 mm
Nozzle radius (injection unit 1): 35 mm / nozzle radius (injection unit 2): 19 mm
High between tie bars: 930 mm
Mould weight max: 11400 kg // max mould weight with plate: 7600 kg
Accumulator number: 1
Machine pre-fusing current: 250 a
Heater pre-fusing current: 315 a
Amount of oil: 1240 liters
Clamping screw thread bwap: 16113. 56. 00
Clamping screw thread fwap: 16112. 55. 00

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
