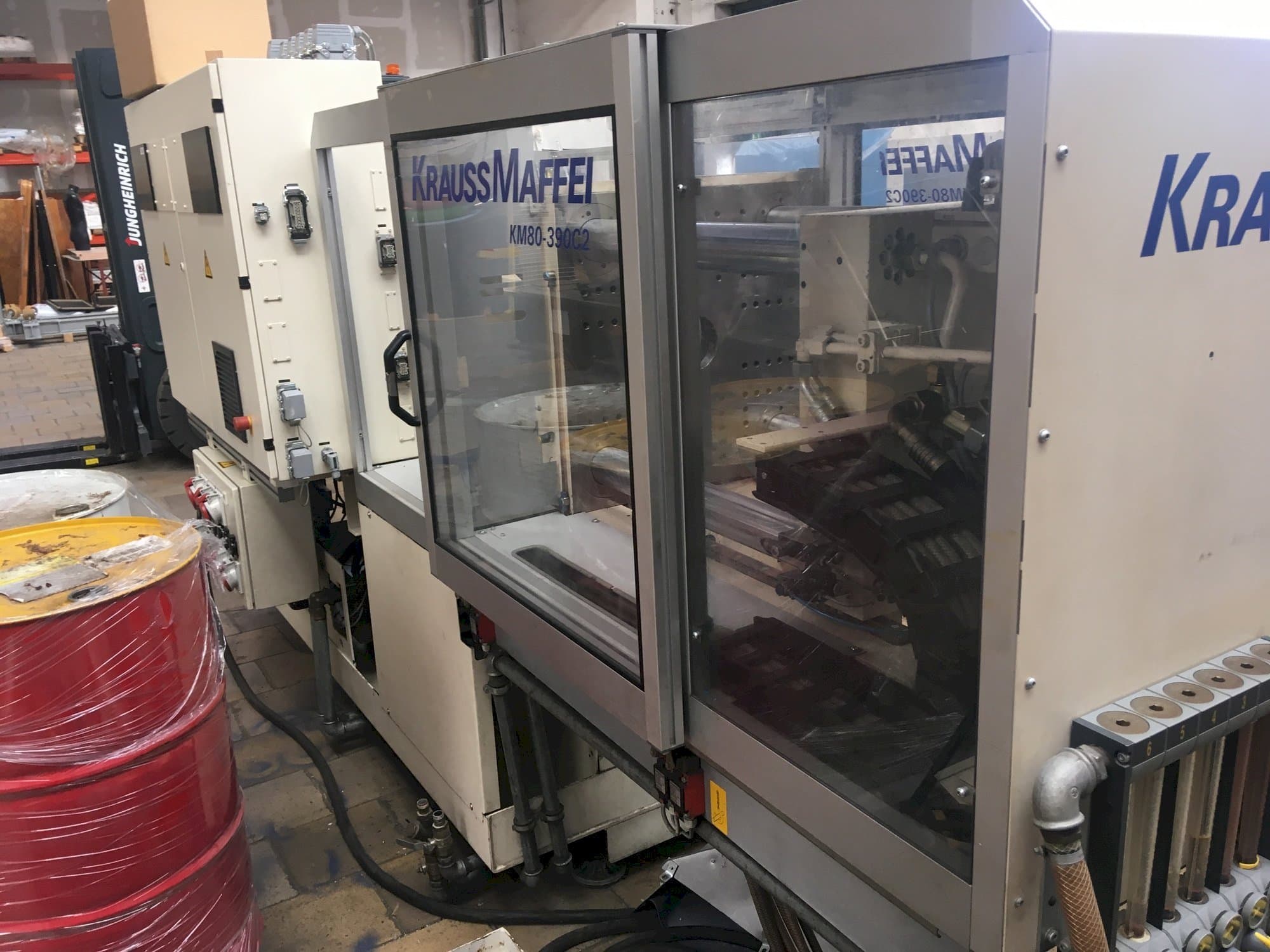

Right view of Krauss Maffei 80/390 C2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 80/390 C2

Krauss Maffei - 80/390 C2CZ-INJ-KRA-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei 80/390 C2 Injection Moulding Machine

This Krauss Maffei 80/390 C2 Injection Moulding Machine was produced in 2002 in Germany and has been operative for 64000 hours. Equipped with a control unit of the same brand, this machine offers a clamping force of 800 kN. It presents really good conditions, as it has been revised by Krauss Maffei technicians.

Overview

brand: Krauss Maffei
year: 2002
MODEL: 80/390 C2
production hours: 64000
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 80/390 C2

General Data

Measurements width: 4100 mm
Measurements depth: 1400 mm
Measurements height: 2200 mm
Machine weight: 3500 kg

Control Unit

Brand: KRAUSS MAFFEI
CNC main language: german
CNC language customizable: Yes

Injection Unit

Screw diameter: 35 mm
Shot weight: 142 g/PS
Stroke volume: 156 cm³
Injection pressure: 2429 bar
Screw speed: 310 rpm
Heating capacity: 12 kW
Nozzle pressure: 84 bar

Clamping unit

Clamping force: 800 kN
Opening stroke: 500 mm
Max open daylight: 750 mm
Distance between bars: 405 x 405 mm
Mould height min: 250 mm
Size of mold platens: 610 x 610 mm
Ejector stroke: 150 mm
Ejector force for / back: 22/10 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Robot interface as per euromap 18
- - 2x hotrunner controller
- - 6-fold waterbattery
- - Pneumatic valve

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
