Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Krauss Maffei - 800-5000MC4DE-INJ-KRA-2002-00009
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Krauss Maffei 800-5000MC4 For Sale | gindumac.com

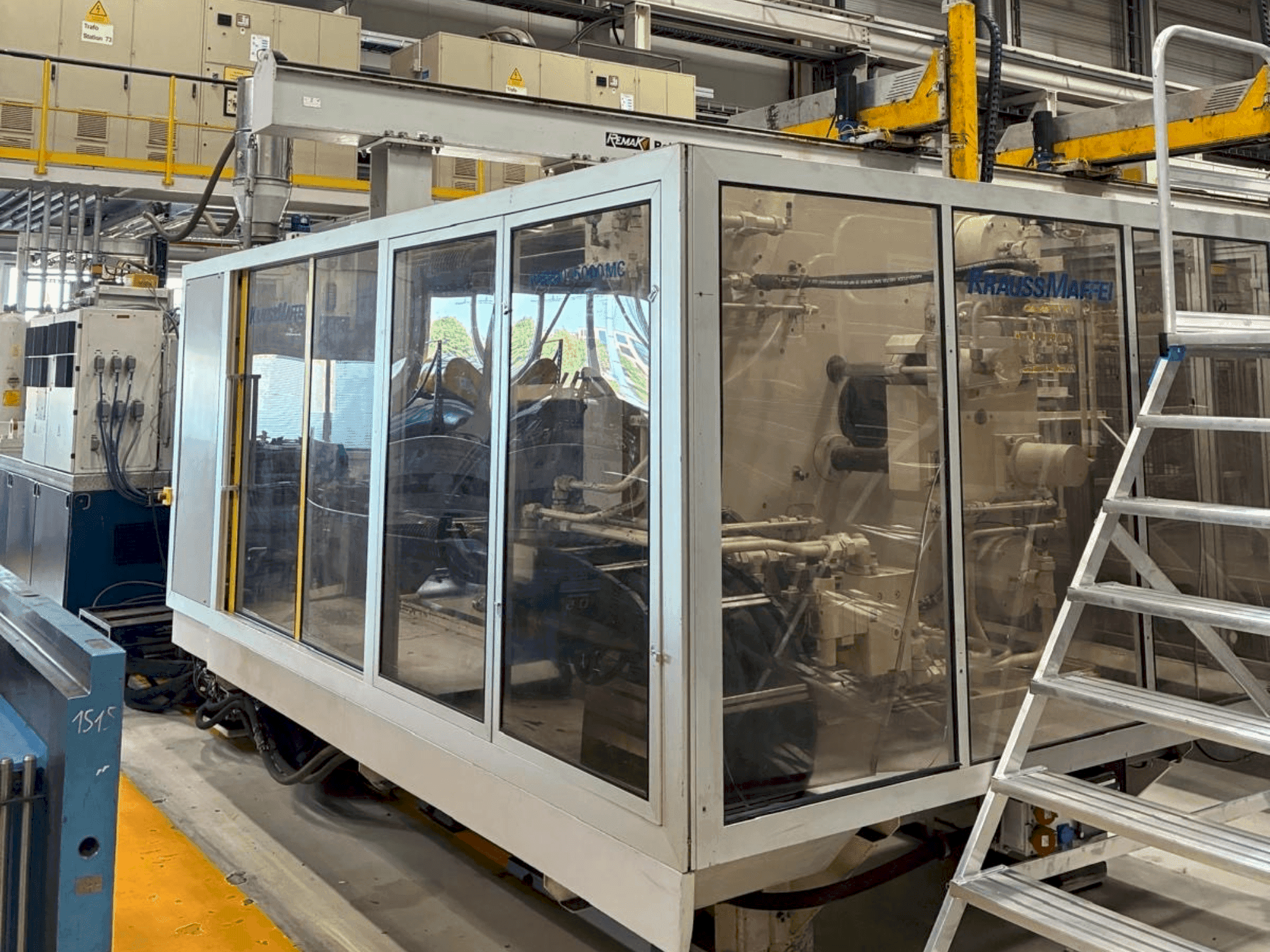

This 3-axis Krauss Maffei 800-5000MC4 was manufactured in 2002. It features a clamping force of 800 kN, a screw diameter of 90 mm, and a maximum shot volume of 2863 cc. The machine includes a Remak RD30CNC robot and supports a crane runway capacity of 50,000 kN. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei 800-5000MC4 machine we have for sale. Contact us for more information.
Overview
- brand: Krauss Maffei
- year: 2002
- MODEL: 800-5000MC4
- production hours: 70000
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei 800-5000MC4
Control Unit
- Control Brand: KRAUSS MAFFEI
Technical Specification
- Clamping Force: 800 kN
- Screw Diameter: 90 mm
Additional Information
Additional equipment
- Hydraulic pulley: 4
- Case service: 5x hydraulic, 8x pneumatic
- Robot type: Remak RD30CNC
- Crane runway: 50000 kN
- Distance from crane to boom with chain: > 2150 mm
Machine Benefits
Technical Machine Benefits
- Clear tie bar width horizontal-vertical: 1120x1000 mm
- Platelet size horizontal-vertical: 2000x1510 mm
- Minimum-maximum platen width: 600-1100 mm
- Platelet spacing max. : 2000 mm
- Centering ds/fs: 250/240 mm
- Maximum shot volume: 2863 cc
- Max. Injection speed in cc/s (theoretical): 1118
- Injection unit: standard
- Machine nozzle diameter: 4. 6 mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
