- ➤ Used Krauss Maffei KM 350-3000 For Sale | gindumac.com

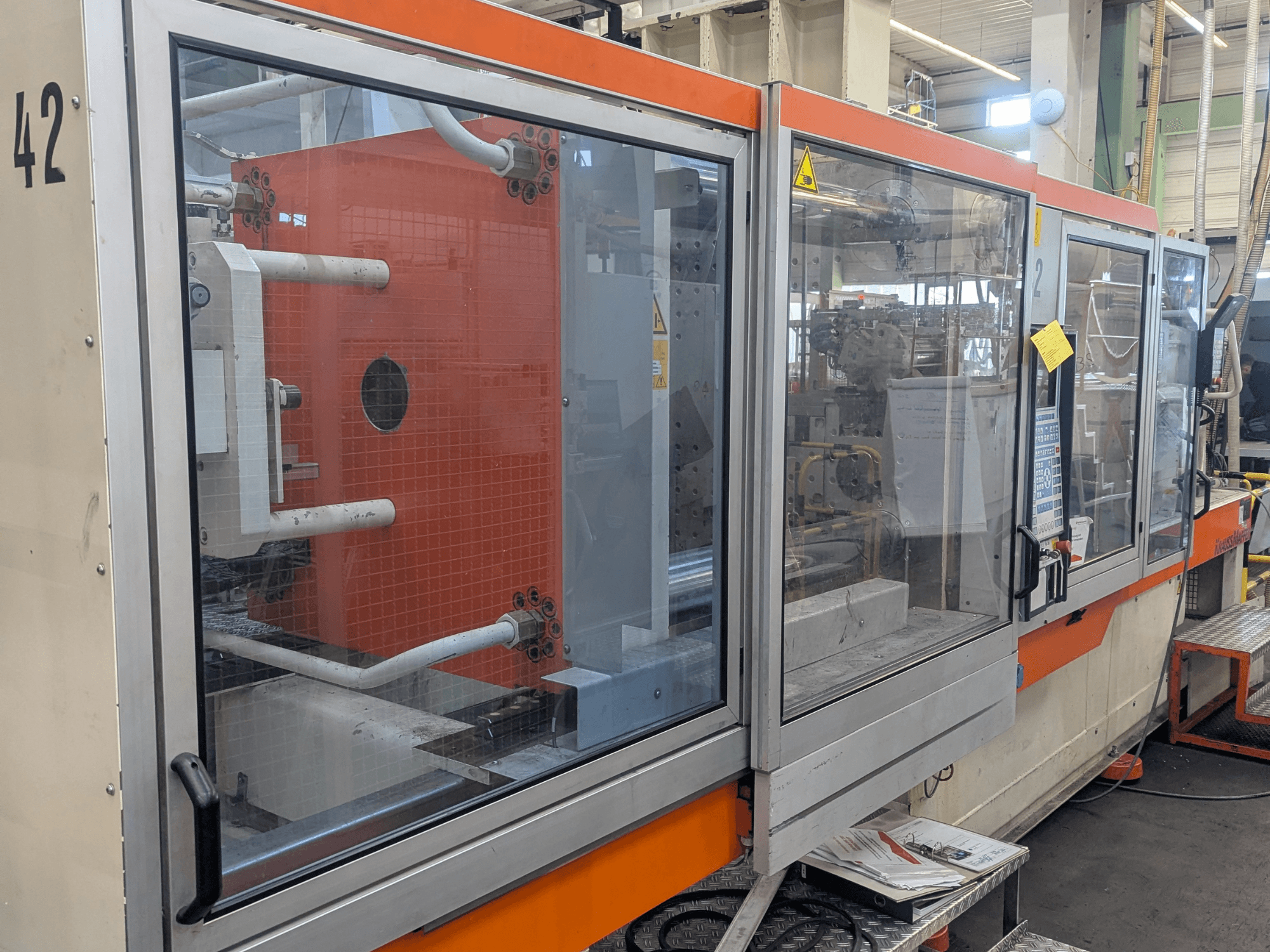

This 3-axis Krauss Maffei KM 350-3000 was manufactured in 2003. It features a clamping force of 3500 kN and a maximum opening stroke of 920 mm. The machine is capable of processing various materials including PA, PP, PE, and ABS. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei KM 350-3000 hydraulic injection moulding machine we have for sale. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2003
- MODEL: KM 350-3000
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei KM 350-3000
Technical Specification
- Clamping Force: 3500 kN
- Max. Shot Weight: 998 g
- Screw Diameter: 70 mm
Additional Information
Stroke volume: 1097 cm³
Processed materials: PA, PP, PE, ABS
Cylinder temperature: up to 450 °C
Mold opening force: 220 kN
Travel force (moving plate): opening 105 kN / closing 95 kN
Max. opening stroke: 920 mm
Min. mold height: 380 mm
Max. daylight: 1300 mm
Size of mold platens (H x V): 1060 x 1095 mm
Distance between tie bars (H x V): 710 x 710 mm
Ejector stroke: 250 mm
Ejector force (forward/backward): 95 / 49 kN
Max. mold weight: 4950 kg
Additional equipment
Handling system: Wittmann
Robot travel (X/Y/Z): 420 / 1200 / 2000 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
