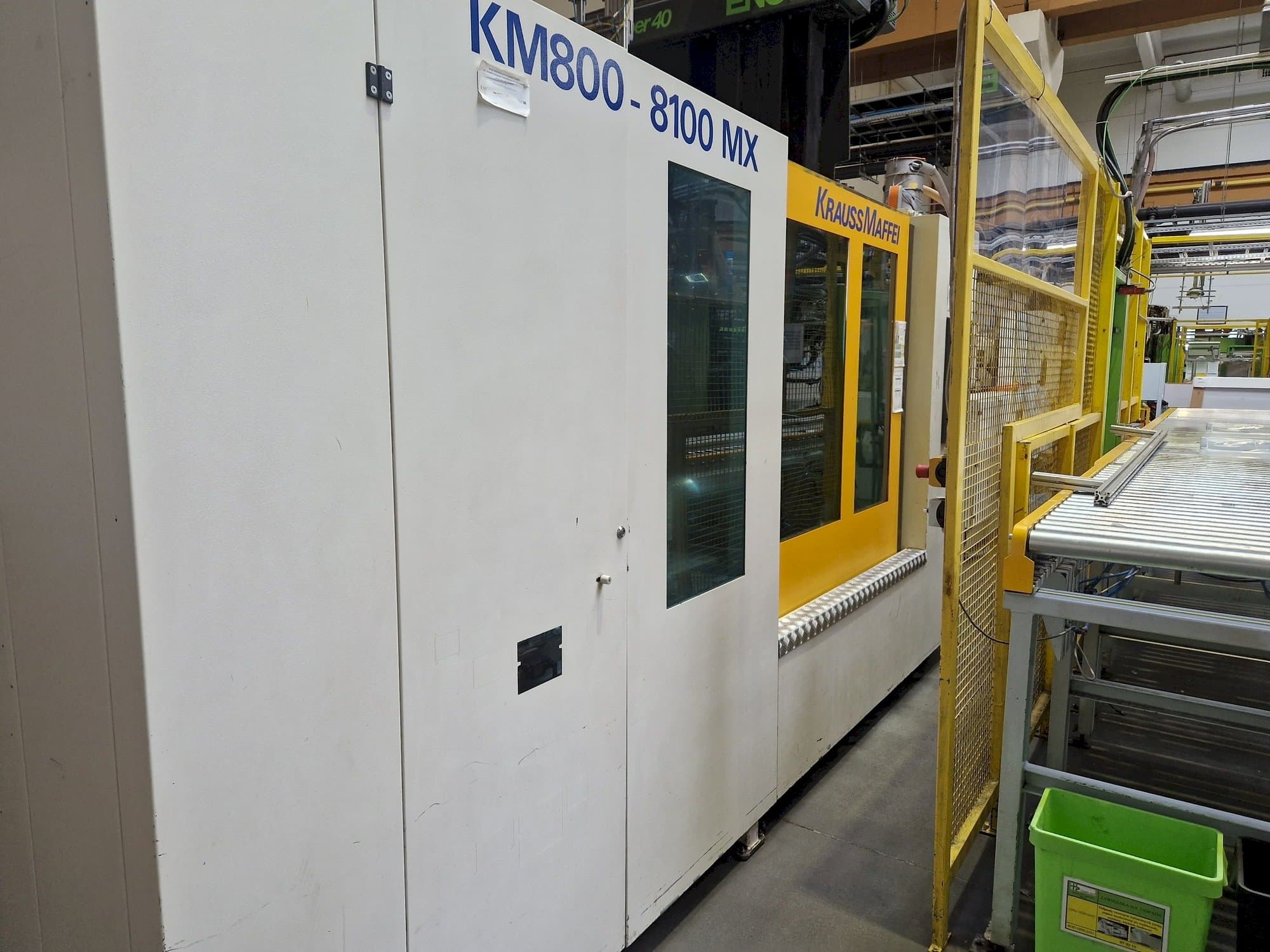

Left side view of Krauss Maffei 800-8100 MX  machine

Krauss Maffei 800-8100 MX

Krauss Maffei - 800-8100 MX

2008

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Krauss Maffei 800-8100 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 93845 production hours. It is equipped with a Krauss Maffei MC5 control unit. The machine has a clamping force of 8000 kN and a screw diameter of 105 mm.

Overview

  • brand: Krauss Maffei
  • year: 2008
  • MODEL: 800-8100 MX
  • production hours: 93845
  • application type: Injection Moulding
  • Location: Poland
  • machine type: Injection Moulding Machines
  • availability: Sold
  • control unit brand: Krauss Maffei
  • GINDUMAC ID: PL-INJ-KRA-2008-00001

Technical Information

General Data

  • Measurements width: 10810 mm
  • Measurements depth: 2920 mm
  • Measurements height: 2510 mm
  • Machine weight: 45000 kg

Control Unit

  • Brand: Krauss Maffei
  • Model: MC5

Injection Unit

  • Screw diameter: 105 mm
  • Injection pressure: 4546 BAR

Clamping unit

  • Clamping force: 8000 kN
  • Opening stroke: 1600 mm
  • Distance between bars: 1120 / 1000 mm
  • Mould height min: 500 mm
  • Mould height max: 1100 mm
  • Ejector stroke: 0 – 300 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Diameter of center ring injection side: 250 mm, diameter of center ring ejection side: 250 mm
      • - Clearance between the tables (mm) 2100 mm
      • - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
      • - Quantity core pulling: 2 pcs, table whole tread: m24
      • - Quantity of hydraulic oil: 1500 liters, heating power: 59 kw
      • - Motor: 110 / 117 kw
      • - Safeguard the door: pneumatic, valve terminal: 8 nozzles
      • - Air valves: 8 valves
    • Qualitative Machine Benefits:
      • - The machine is in very good condition, full documentation and service history available, ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
