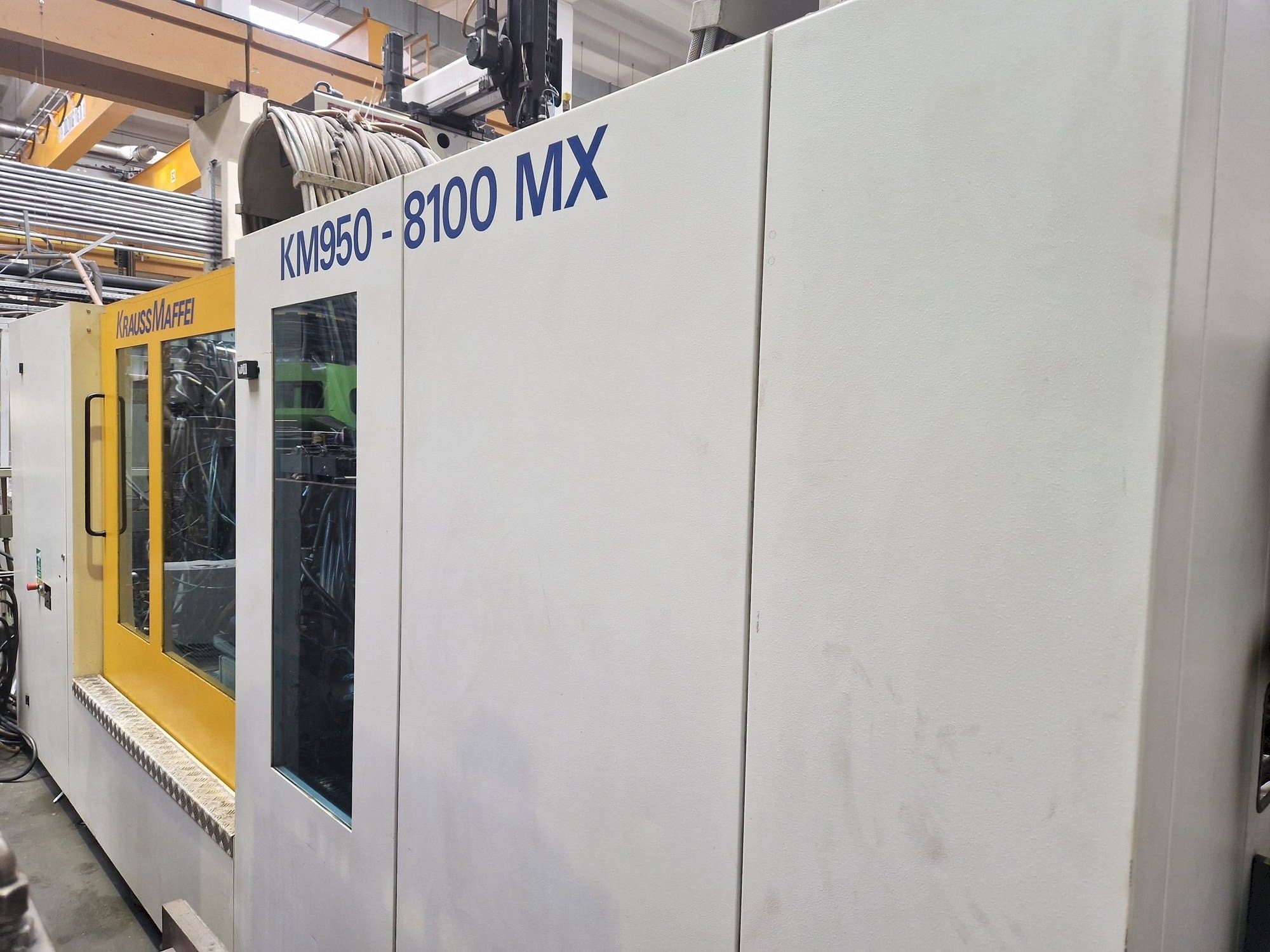

Front view of Krauss Maffei 950-8100 MX  machine

Krauss Maffei - 950-8100 MXPL-INJ-KRA-2008-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Krauss Maffei 950-8100 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 98085 production hours. It is equipped with Krauss Maffei MC5 control unit. The machine has a clamping force of 9500 kN and a screw diameter of 105 mm, is in good condition and well maintained.

Overview

  • brand: Krauss Maffei
  • year: 2008
  • MODEL: 950-8100 MX
  • production hours: 98085
  • application type: Injection Moulding
  • Location: Poland
  • machine type: Injection Moulding Machines
  • availability: Sold
  • control unit brand: Krauss Maffei

Technical Information - Krauss Maffei 950-8100 MX

General Data

  • Measurements width: 11230 mm
  • Measurements depth: 3420 mm
  • Measurements height: 2610 mm
  • Machine weight: 56000 kg

Control Unit

  • Brand: Krauss Maffei
  • Model: MC5

Injection Unit

  • Screw diameter: 105 mm
  • Injection pressure: 4546 BAR

Clamping unit

  • Clamping force: 9500 kN
  • Opening stroke: 1900 mm
  • Distance between bars: 1400 / 1150 mm
  • Mould height min: 500 mm
  • Mould height max: 1200 mm
  • Ejector stroke: 0 – 300 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Diameter of center ring injection side: 250 mm, diameter of center ring ejection side: 250 mm
      • - Clearance between the tables (mm) 2400 mm
      • - Capacity injection: 4546 cm3
      • - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
      • - Table whole tread: m24, quantity of hydraulic oil: 1500 liters
      • - Motor: 110 / 117 kw, heating power: 59 kw
      • - Safeguard the door: pneumatic
      • - Valve terminal: 8 nozzles
      • - Air valves: 3 valves
    • Qualitative Machine Benefits:
      • - The machine is in very good condition, full documentation, and service history available, ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
