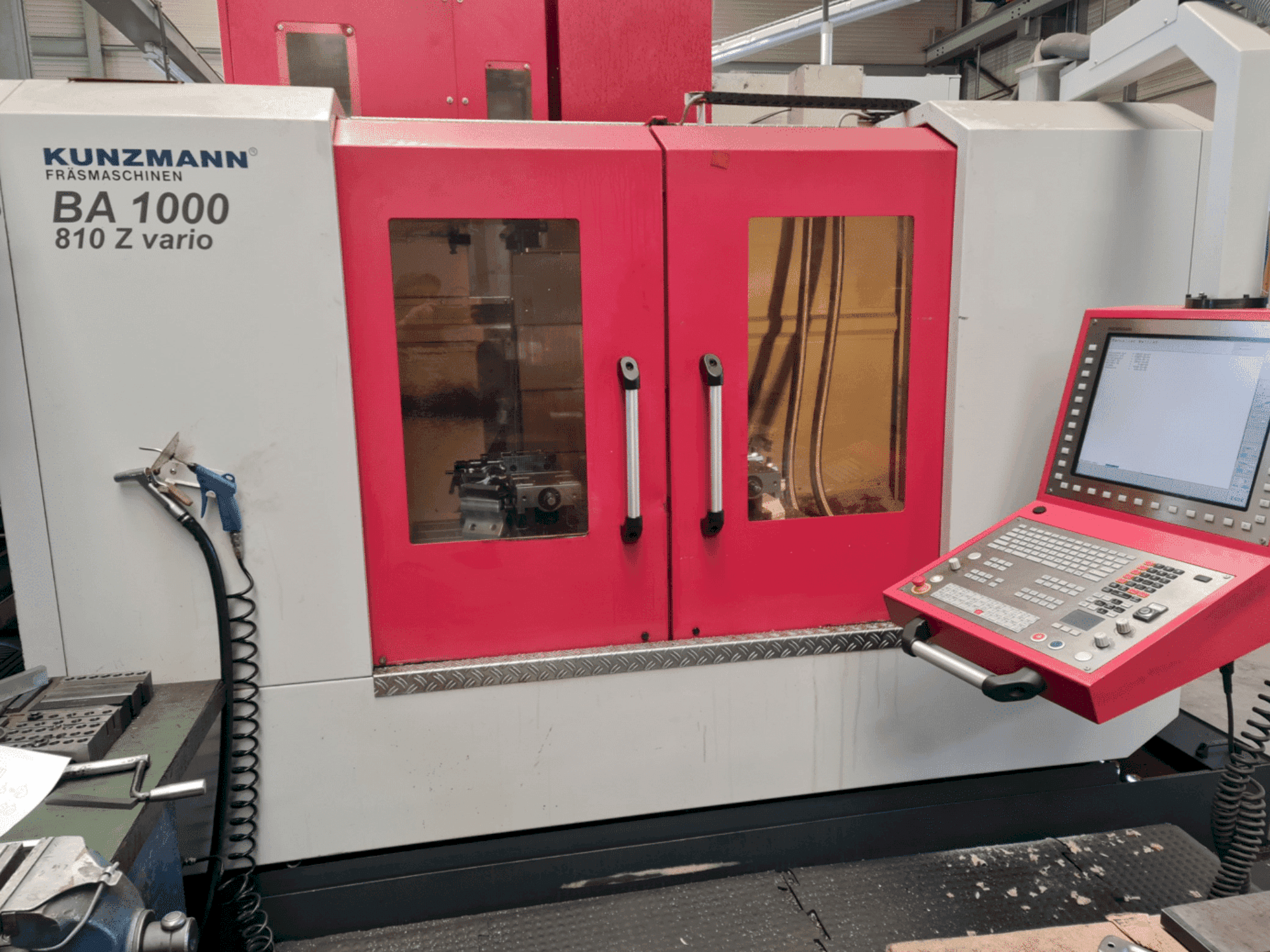

Front view of KUNZMANN BA 1000/810 Vario (2013) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KUNZMANN BA 1000/810 Vario

Photo Gallery

KUNZMANN - BA 1000/810 VarioDE-MIL-KUN-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KUNZMANN BA 1000/810 Vario For sale | gindumac.com

This 4-Axis KUNZMANN BA 1000/810 Vario milling machine, manufactured in 2013, features advanced technology including a Walter with AMF zero point system and an IKZ 25 bar. It offers a broad travel range with X at 1000mm, Z at 800mm, and Y at 600mm. Equipped with a high-performance milling spindle and a spindle speed of 12000 rpm, it ensures precise and efficient operations. The machine also includes a 3D probe and an accuracy package with a direct measuring system in all axes. Reach out for more information about this milling machine.

Overview

brand: KUNZMANN
year: 2013
MODEL: BA 1000/810 Vario
production hours: 19500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KUNZMANN BA 1000/810 Vario

Control Unit

Brand: HEIDENHAIN
Model: iTNC530

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Tool taper: SK40
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 800 mm

Media

Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 25 bar

Additional Equipment

- 4-axis Walter with AMF zero point system
- Spindle cooling
- 3D probe
- Accuracy package
- Rotary stroke gear WZW
- Complete oscillating arm for WZW
- High-performance milling spindle In-Line
- Electronic handwheel HR 410
- Hinged belt conveyor
- Fixed tailstock

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The machine has no extraction system, but can be connected via an existing roof opening
- - Tool package with approx. 60 holders
- - Wohlhaupter spindle system tools
- - 5 vices 2x r%c3%b6hm
- - 3x hilma lenzkes clamps and much more

Extra information

- Rapid traverse reduced, seal diameter Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
