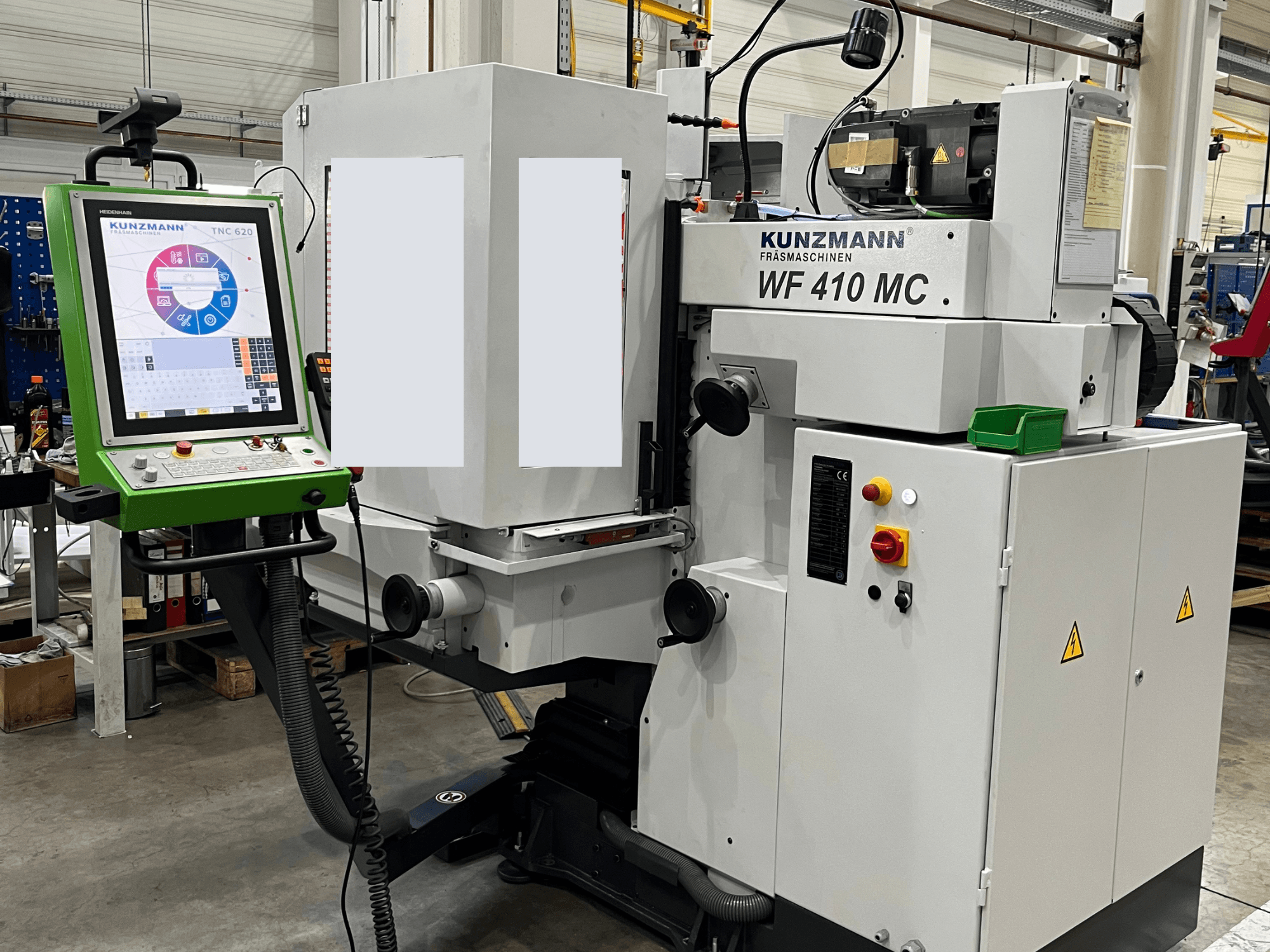

KUNZMANN - WF 410 MC DE-MIL-KUN-2019-00001

• Control Unit Brand: HEIDENHAIN

• Control Unit Model: TNC 620 FS

• Table Size: 650 × 375 mm

• Maximum Table Load: 250 kg

• Spindle Taper: SK40 DIN ISO 7388-1 Form AD

• Maximum Spindle Speed: 5,000 rpm

• Spindle Power: 6.8 kW

• Rapid Feed X/Y/Z: 5 / 5 / 5 m/min

• Quill Stroke: 70 mm

• Operating Voltage: 400 V

• Mains Frequency: 50 Hz

• Number of Phases: 3

• Connection Power: 13 kVA

• Rated Current: 18 A

• Main Fuse: 25 A

• Short-Circuit Breaking Capacity: 10 kA

• Control Voltage: 24 V

• Machine Weight: Approx. 1,800 kg

• Maximum Transport Weight: 2,025 kg

Accessories:

• Machine Enclosure with Safety Doors

• Machine Light (LED Flexible Arm)

• Central Lubrication System

• Coolant System (66 L Tank)

• Automatic Mechanical Tool Clamping

• Electronic Feed and Spindle Override Potentiometers

• Electronic Handwheel HEIDENHAIN HR 510 FS

• Probe Preparation Kit for TS 220 / TS 260

• 4th Axis Preparation Kit

Extra Information:

• Machine only used in training workshop

• Fully refurbished in 2026

• 6-month warranty

• Retrofitting and commissioning available on request at an additional cost
