➤ Used KAFO KFO 620 5AX For Sale | gindumac.com

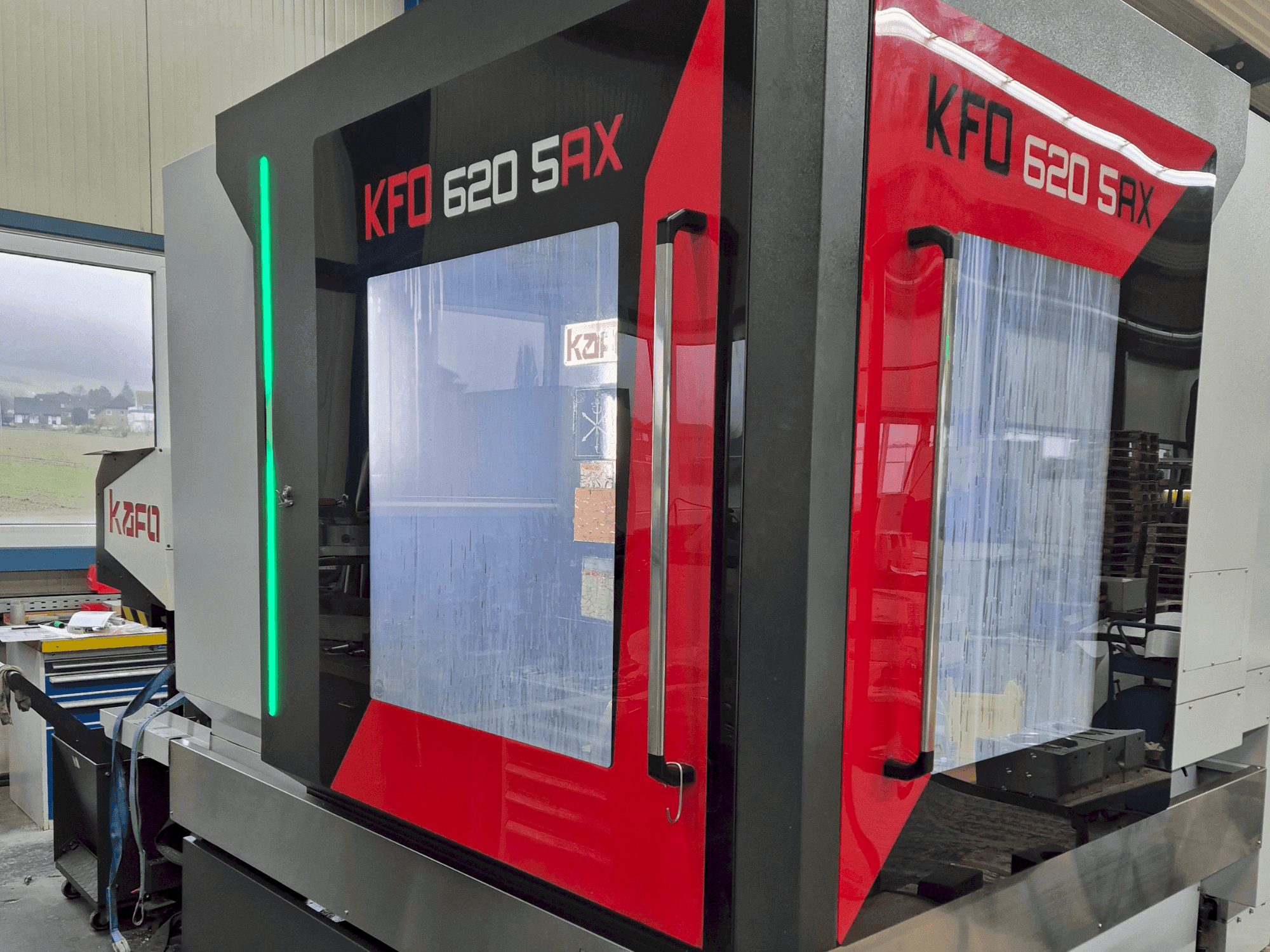

This 5-axis KAFO KFO 620 5AX was manufactured in 2019. It features a spindle speed of 12,000 rpm, a tool changer with a capacity of 40 tools, and a spindle taper SK 40. The machine dimensions are 4210x2325x3108 mm, and it weighs 9500 kg. It includes a chip conveyor, spindle oil cooler, and is CE compliant. If you are looking to get high-quality milling capabilities consider the KAFO KFO 620 5AX machine we have for sale. Contact us for more information.

Overview

brand: KAFO
year: 2019
MODEL: KFO 620 5AX
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KAFO KFO 620 5AX

General Data

Measurements width: 2325 mm
Measurements depth: 4210 mm
Measurements height: 3108 mm
Machine weight: 9500 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 640

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: SK 40
Number of axis: 5

Movement

X-AXIS Movement: 620 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 460 mm

Tools

Max weight: 7 kg
Max tool diameter: 78/125 mm
Max tool length: 250 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- CE compliant
- Kinematics HH
- Linear scales in X/Y/Z
- Blum probe for workpiece measurement
- Spindle expansion compensation
- Handwheel
- Water gun
- Working area flushing
- Spindle oil cooler
- Oil skimmer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis: 110 to -50 degrees
- - C-axis: 0. 001 degrees
- - Distance from spindle to table: 160-600 mm
- - Spindle bearing: 70 mm
- - Tool changer capacity: 40 tools

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
