POSmill - H 500 UDE-MIL-POS-2020-00004

Name: POSmill H 500 U
Brand: POSmill
SKU: DE-MIL-POS-2020-00004
Price: 160000 EUR
Availability: InStock

160,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used POSmill H 500 U For Sale | gindumac.com

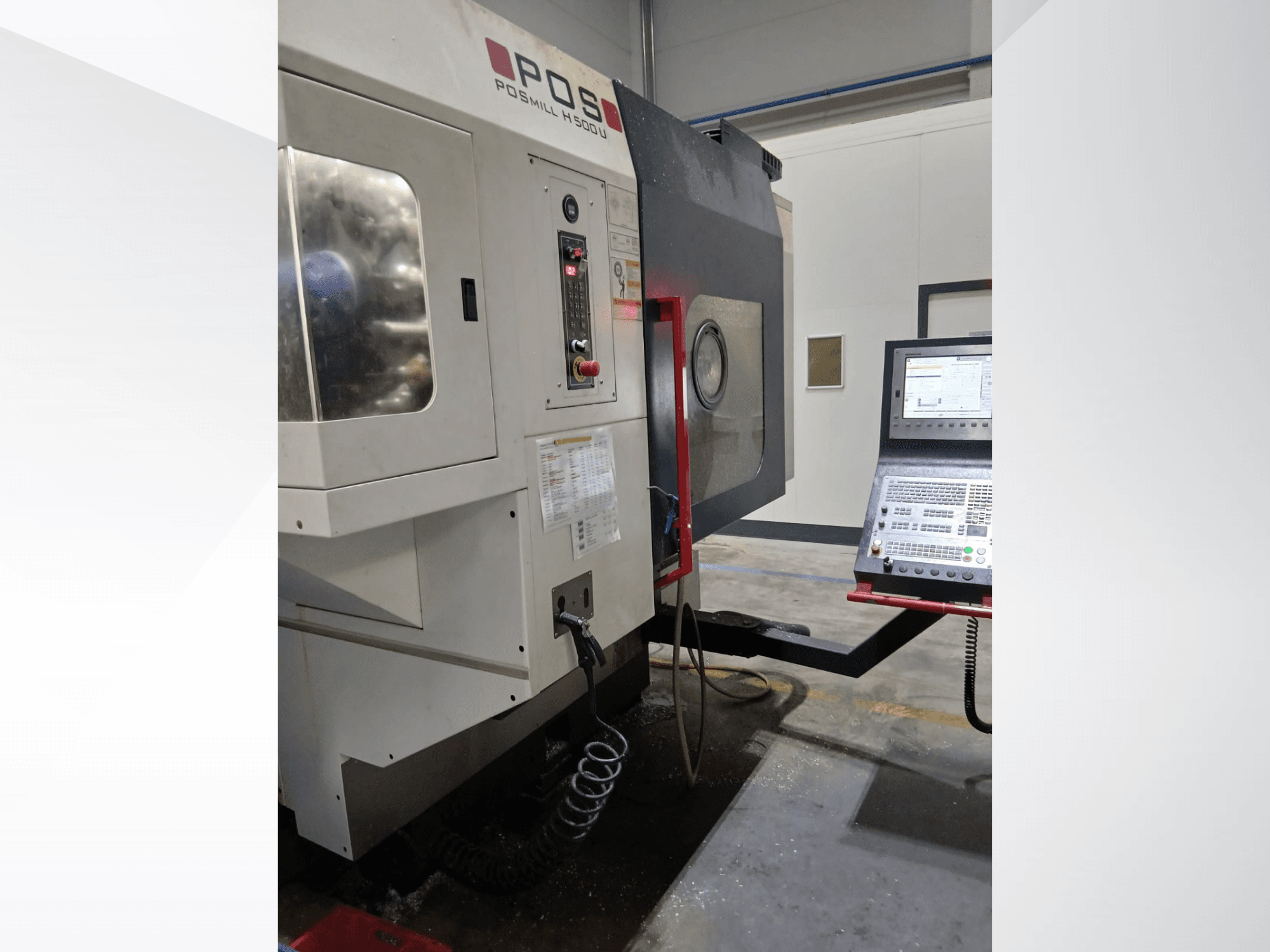

This 5-axis POSmill H 500 U was manufactured in 2020. It features a Heidenhain TNC 640 control system and includes additional equipment such as a chip conveyor and an external cooling unit. With a nominal power of 60 kVA and extensive operational hours, this machine is well-equipped for high-quality machining tasks. If you are looking to get high-quality machining capabilities, consider the POSmill H 500 U vertical machining centre we have for sale. Contact us for further details.

Overview

brand: POSmill
year: 2020
MODEL: H 500 U
production hours: 11395
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill H 500 U

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 640

Dimensions

Machine Weight: 13000 kg

Movement

Number of Axes: 5
X-axis Travel: 650 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

- Control Type: Heidenhain TNC 640 (NC Software: 340590 09 SP2)

- Nominal Power: 60 kVA

- Full Load Current: 80 A

- Max. Load Current: 115 A

- Short Circuit Resistance: 25 kA

- Voltage: 400 V, 50 Hz (3-Phase)

- Control On Hours: 24,470:15:33

- Machine On Hours: 22,600:24:22

- Program Run Hours: 14,169:52:59

- Hydraulic Hours: 22,633:39:41

- Axis Hours: 11,234:28:24

- Spindle S1 Hours: 11,395:56:49

- Additional Equipment: Chip conveyor, external cooling/chiller unit, handheld pendant control unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
