KUNZMANN WF 650

Photo Gallery

KUNZMANN - WF 650DE-MIL-KUN-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KUNZMANN WF 650 For sale | gindumac.com

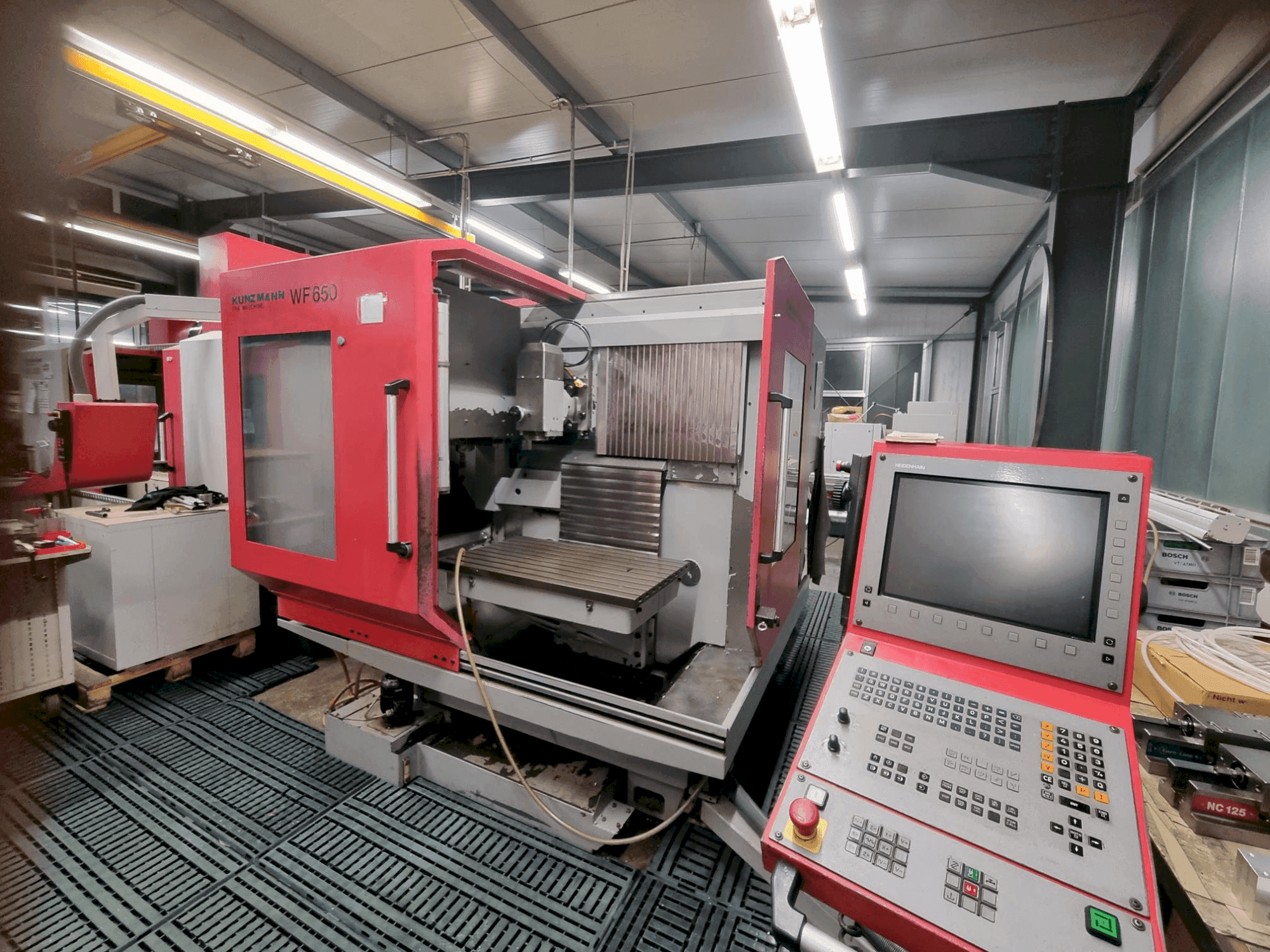

This 3-axis KUNZMANN WF 650 was manufactured in 2006. A vertical machining center featuring a robust angled table measuring 1,000 x 600 mm, iTNC 530 control, and a pull-out chip box. It includes a 2-stage gearbox with a spindle speed up to 6,500 rpm and SK 40 taper. With 20 tool places and spindle hours at 5,355, the KUNZMANN WF 650 machine we have for sale represents a solid opportunity. Contact us for further details.

Overview

brand: KUNZMANN
year: 2006
MODEL: WF 650
production hours: 20
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - KUNZMANN WF 650

Dimensions

Machine Depth: 2300 mm
Machine Height: 2250 mm
Table Length: 1000 mm
Table Width: 600 mm

Movement

Number of Axes: 5

Technical Specification

Spindle Speed: 6500 RPM
Taper Size: SK 40
Tool Stations: 20

Additional Information

Additional equipment

Chip flushing gun
Pull-out chip box
Table top edge to horizontal spindle center max 720mm
Upper edge of table to lower edge of milling spindle max 550mm
Max. workpiece weight 400kg
Torque 300Nm
Quill stroke 60mm // Quill diameter 98mm
20 tool places

Machine Benefits

Technical Machine Benefits

Spindle hours: 5,355 h
Switch-on hours: approx. 20,000 h
Speeds: stage 1: 1-1625 min-1 stage 2 1626-6500 min-1
Weight with rigid angular table 4800kg
Weight with fixed angled table and tool changer 5300kg

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
