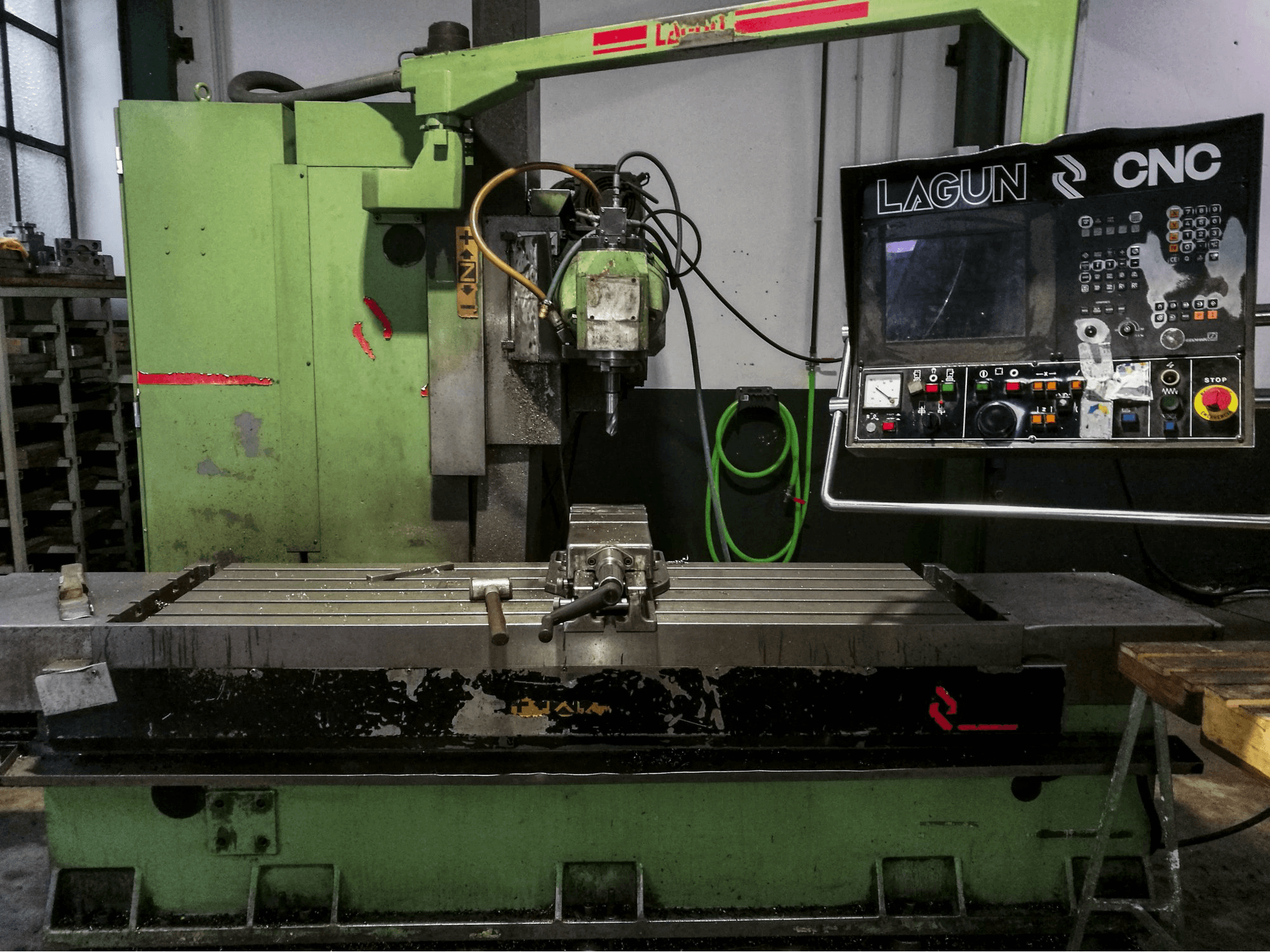

The Lagun FBF 1800 is a Milling Machine from 1992 that has a production record of approximately 20000 working hours. It is equipped with an easy to program HEIDENHAIN TNC 360 Control unit and a variety of additional tool holders. During production this machine benefits from its large, 1800 mm long and 550 mm wide working table and its special turning head, which makes the FBF 1800 work like a 4 axis machine.
Overview
- brand: LAGUN
- year: 1992
- MODEL: FBF 1800
- production hours: 20000
- application type: Milling
- Location: Spain
- machine type: Horizontal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - LAGUN FBF 1800
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 360
Dimensions
- Machine Depth: 2000 mm
- Machine Height: 2550 mm
- Machine Weight: 9000 kg
- Table Length: 1800 mm
- Table Width: 550 mm
Movement
- X-axis Travel: 1700 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 3000 RPM
- Taper Size: ISO 50
Additional Information
Additional equipment
- Tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
