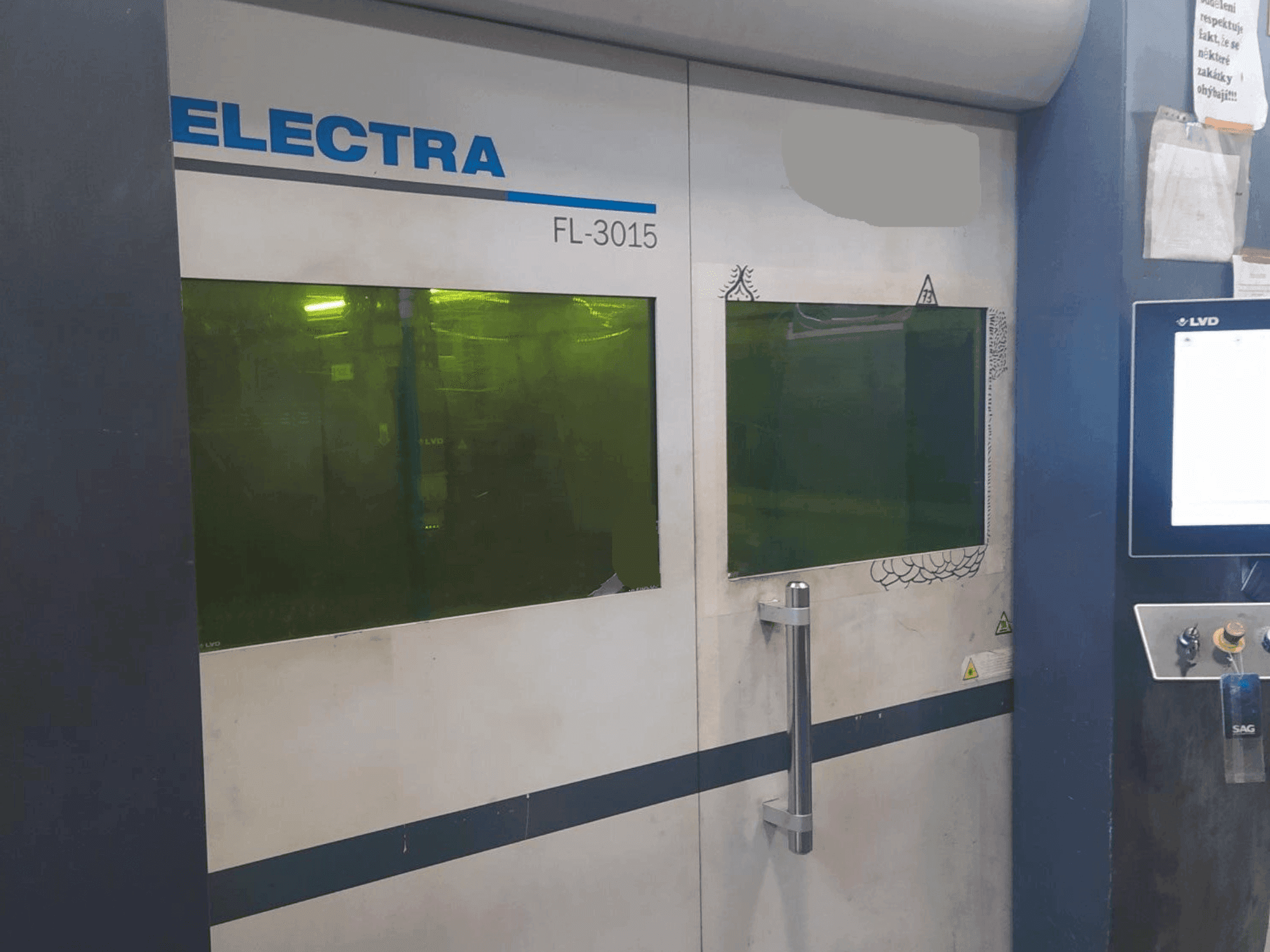

Front view of LVD ELECTRA FL-3015 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

LVD ELECTRA FL-3015

Photo Gallery

LVD - ELECTRA FL-3015CZ-LAS-LVD-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
LVD ELECTRA FL-3015 Fiber laser cutting machine

This LVD ELECTRA FL-3015 Fiber laser cutting machine was manufactured in 2015 and is equipped with a 4 kW FL 040 Rofin laser with Precitec cutting head. The machine is operated with a Siemens Sinumerik 840D control unit and can cut up to 10mm ST3, 8mm INOX and 6 mm PA11. It comes with a Rittal cooling unit. The table cutting area is 3000 x 1500 mm with X, Y, Z axis movement range of 3080 x 1555 x 100 mm. In January 2024 the cutting head was replaced. This Fiber laser cutting machine is in very good conditions with only 12,000 cutting hours. It is still under production and can be visited at any time.

Overview

brand: LVD
year: 2015
MODEL: ELECTRA FL-3015
production hours: 12000
application type: Cutting
Location: Czech Republic
machine type: Fiber Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - LVD ELECTRA FL-3015

General Data

Machine weight: 15000 kg

Control Unit

Model: SINUMERIK 840D sl
Brand: SIEMENS

Main drive

Laserpower: 4 KW
Laser type: Fiber
Maximum sheet thickness: ST3: 10 mm, INOX: 8 mm, PA11: 6 mm
Laser brand: FL 040 Rofin

Movement

X-AXIS Movement: 3080 MM
Y-AXIS Movement: 1555 MM
Z-AXIS Movement: 100 MM

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 10 mm
Stainless steel: 8 mm
Aluminum: 6 mm

Machine specific data

Laser Cutting Head: PRECITEC

Additional Information

Additional equipment

Cooling Unit: Rittal

Machine Benefits

Qualitative Machine Benefits

4kw fiber laser
12. 000 cutting hours
01/2024 new cutting head

Technical Machine Benefits

Table cutting area: 3000 x 1500 mm
X, y, z axis movement range: 3080 x 1555 x 100 mm
Rapid feed speed: 170 m/min
Maximum thickness of cut material: st3: 10 mm, inox: 8 mm, pa11: 6 mm
Laser source: fl 040 rofin
Cutting head: precitec

Extra Information

Machine is under power and can be inspected at any time

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
