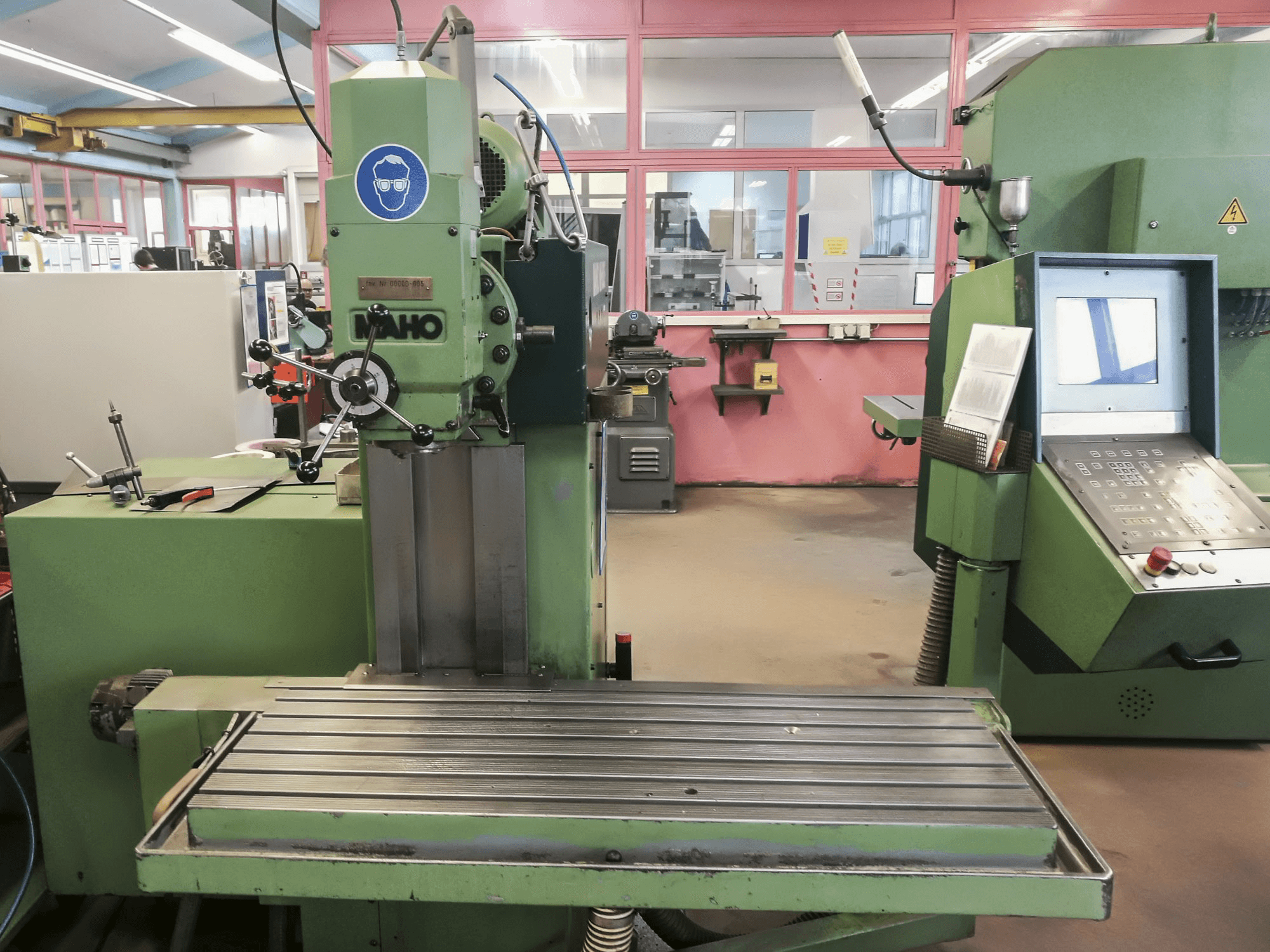

This Maho MH 600 E Milling Machine with a working record of approximately 9900 production hours was manufactured in 1985 in Germany. Controlled through a Maho CNC 532 Control unit, this machine has mostly processed steel preparing workpieces for other metal working machines during the past.
Overview
- brand: MAHO
- year: 1985
- MODEL: MH 600 E
- production hours: 9900
- application type: Milling
- Location: Switzerland
- machine type: Milling Machine
- availability: Sold
- control unit brand: MAHO
- GINDUMAC ID: CH-MIL-MAH-1985-00001
Technical Information
General Data
- Measurements width: 2060 mm
- Measurements depth: 2941 mm
- Measurements height: 1844 mm
- Machine weight: 2100 kg
Control Unit
- Brand: Maho
- Model: CNC 532
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 1/min
Movement
- X-AXIS Movement: 600 mm
- X-AXIS Working Feed: 1500 mm/min
- X-AXIS Feed Force: 8 N
- X-AXIS Rapid traverse: 3 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Working Feed: 1500 mm/min
- Y-AXIS Feed Force: 3.7 N
- Y-AXIS Rapid traverse: 2.5 m/min
- Z-AXIS Movement: 400 mm
- Z-AXIS Working Feed: 1500 mm/min
- Z-AXIS Feed Force: 3.7 N
- Z-AXIS Rapid traverse: 2.5 m/min
Workpiece
- Workpiece drm: 80 mm
- Workpiece weight: 400 kg
Table
- Outer length: 1144 mm
- Outer width: 245 mm
- Number of tslots: 6
- Distance between: 63 mm
Tools
- Max weight: 8 kg
- Max tool length: 400 mm
Media
- Main electronic connection: 220 / 380 V
- Power consumption: 20 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
