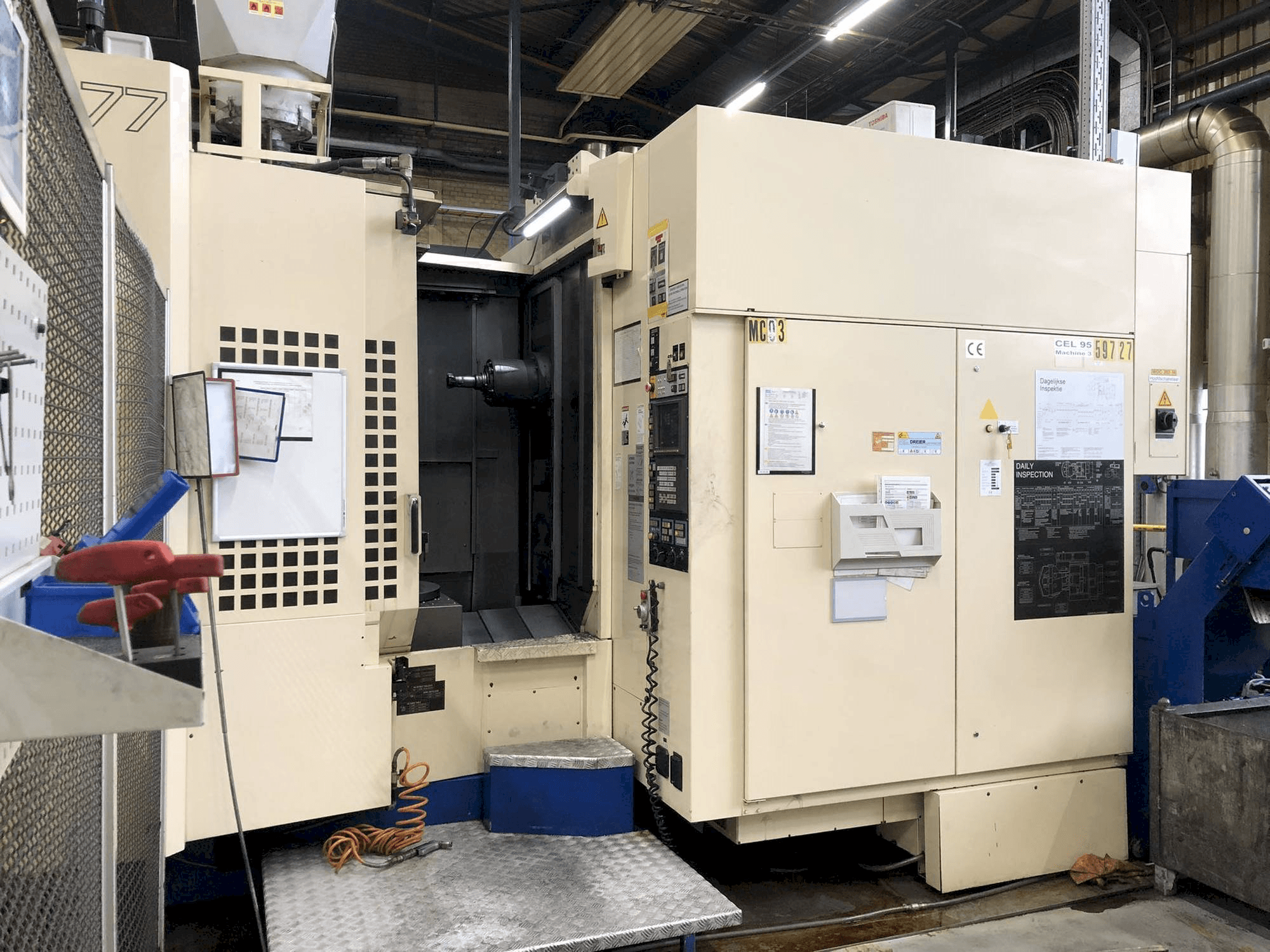

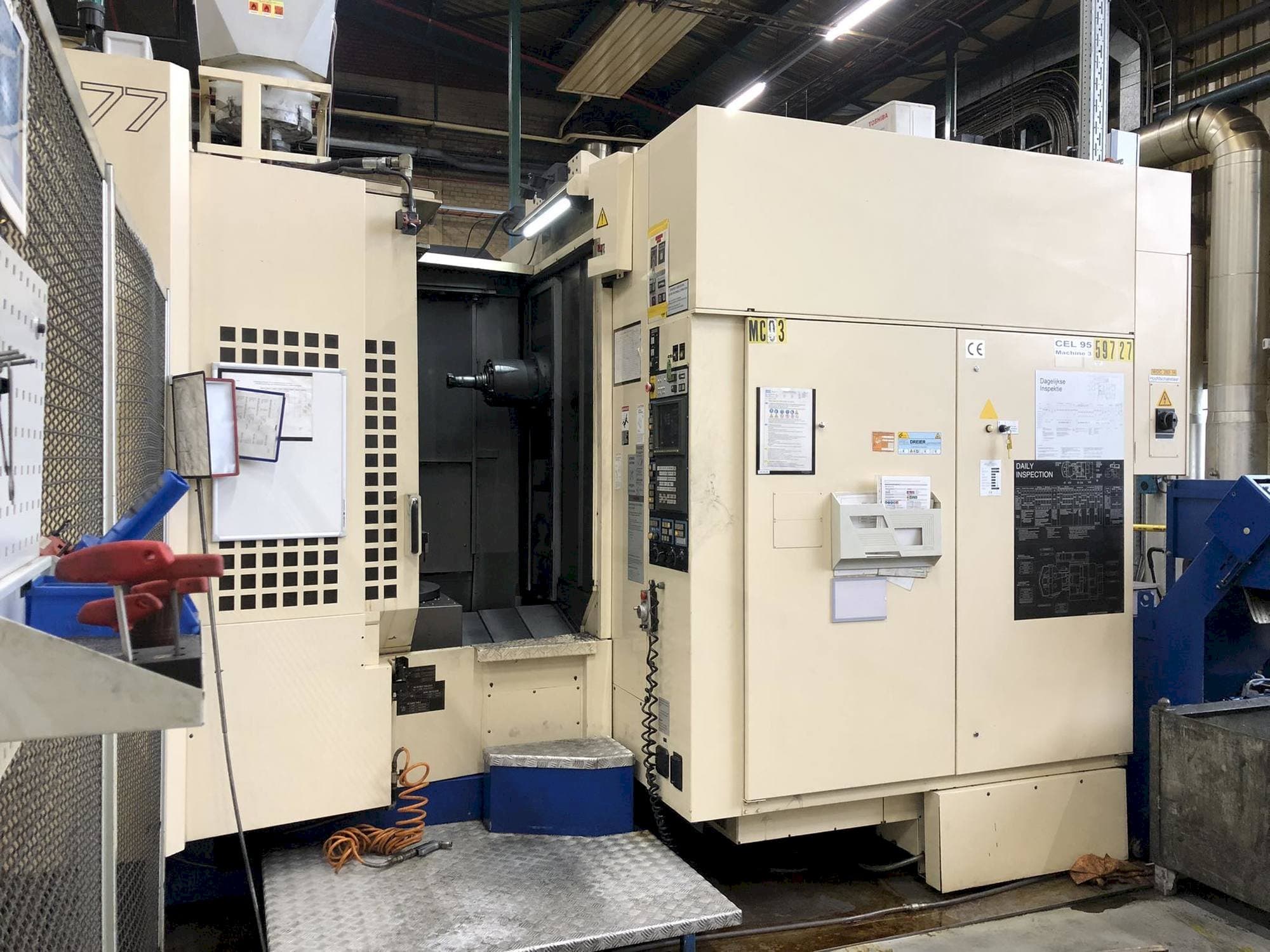

Makino A77 Horizontal Machining center

This Makino A77 Horizontal Machining center was manufactured in the year 1998 in Germany and has 15000 spindle hours. It is equipped with a Fanuc Series 160MC control unit. The machine has a spindle speed of 10000 rpm. 3 units are available.

Overview

brand: Makino
year: 1998
MODEL: A77
production hours: 15000
application type: Milling
Location: Belgium
machine type: Machining centers (horizontal)
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: BE-MIL-MAK-1998-00001

Technical Information

General Data

Measurements width: 2890 MM
Measurements depth: 5680 MM
Measurements height: 3300 MM
Machine weight: 15000 KG

Control Unit

Brand: Fanuc
Model: Series 160MC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 30/26 KW
Number of axis: 4

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 750 MM
Z-AXIS Movement: 770 mm

Workpiece

Workpiece weight: 1200 KG

Table

Outer length: 630 MM
Outer width: 630 MM

Tools

Slots in storage: 225
Type of tool holder: sk50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Incl 2 pallets for each machine
- - Fms system can be bought for an additional amount
- - A lot of spare parts available, can be bought for an additional amount

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
