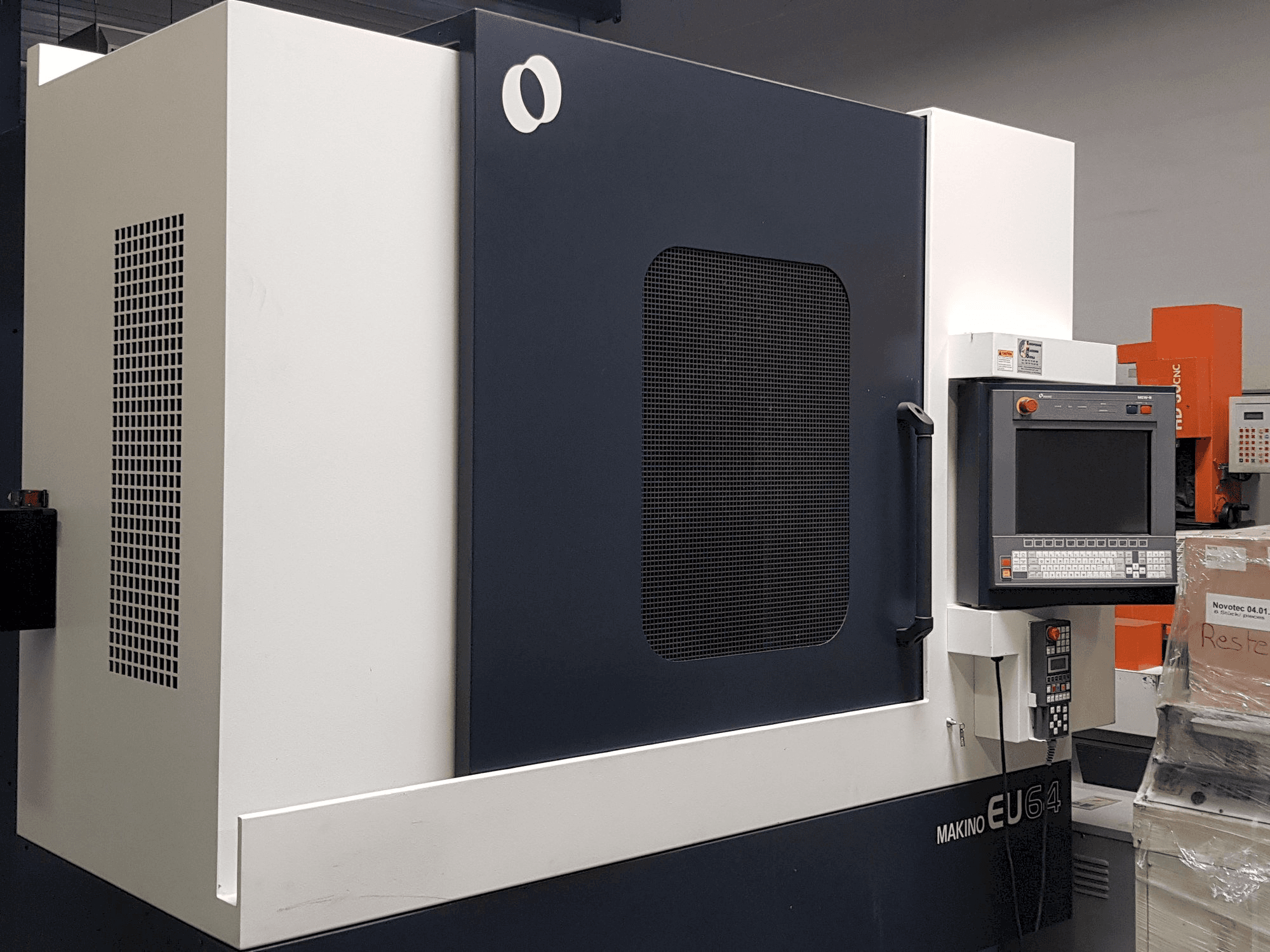

MAKINO EU 65 Erosion machine

This MAKINO EU 64 Erosion machine was made in 2004 in Singapore. It is equipped with a Makino MGW-R control unit and has 5 axis. The machine is refurbished, and in perfect condition.

Overview

brand: Makino
year: 2004
MODEL: EU 64
application type: EDM
Location: Portugal
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: Makino

Technical Information - Makino EU 64

General Data

Measurements width: 2500 mm
Measurements depth: 2500 mm
Measurements height: 2200 mm
Machine weight: 5000 kg

Control Unit

Brand: Makino
Model: MGW-R

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 260mm
V-Axis Movement: (+-) 75 mm
U-Axis Movement: (+-) 75 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Part dimension: 940 xz 650 x 260 mm
- - Max. Weight part: 1500 kg
- - Standard spool size: 25 kg
- - Awt (automatic wire threading): yes
- - Standard wire guides: 0,25 mm
- - Options: chiller included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
