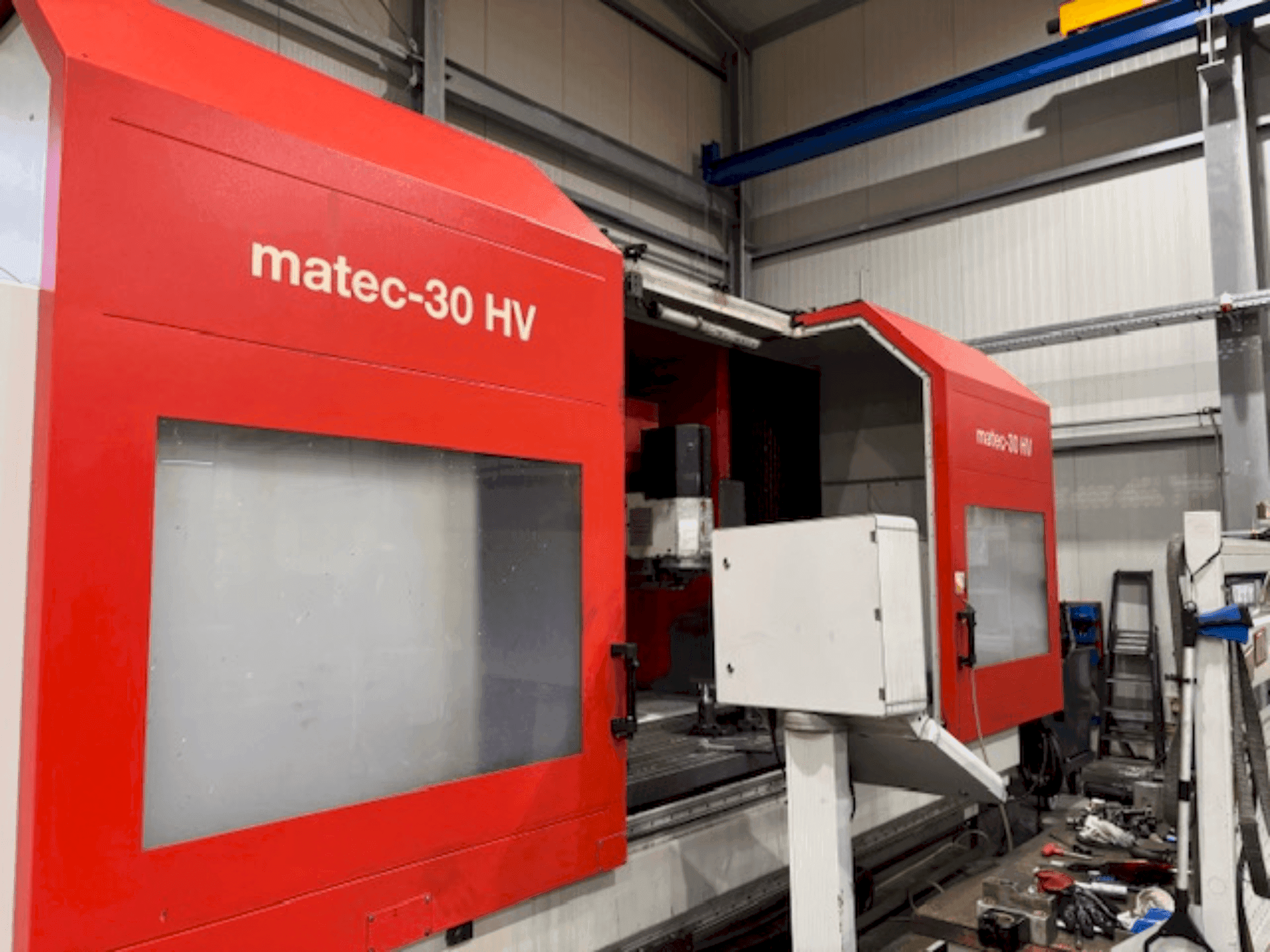

Matec 30-HV

Photo Gallery

Matec - 30-HVDE-MIL-MAT-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matec 30-HV For Sale | gindumac.com

This 3-axis Matec 30-HV vertical machining center was manufactured in 2008. Ideal for precision machining tasks, it offers robust construction and reliable performance. If you are looking to get high-quality milling capabilities, consider the Matec 30-HV machine we have for sale. Contact us for more information.

Overview

brand: Matec
year: 2008
MODEL: 30-HV
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Matec 30-HV

Control Unit

Control Brand: HEIDENHAIN

Movement

Number of Axes: 3

Technical Specification

Spindle Speed: 9000 RPM

Additional Information

Additional equipment

Tool magazine with 48 places/24 tool stations
Spülpistole
Öl-Central scheming
Prodution report 2-fach
Spender forer
Electronic handwheel

Machine Benefits

Technical Machine Benefits

Production output 16 kw/control bosch type 3 osa/activation elements/flushing gun/central oil lubrication
Production report 2-fold/dispenser front/pitch swivel head 3 degrees/y-axis 800 mm process paths/internal coolant supply 20 bar/1-axis nc swivel head +/- 105 degrees tiltable
Higher motor power max. 30 kw/torque max. 190 nm/drilling capacity in steel approx. 60 mm/milling capacity approx. 500 cm³
Thread cutting m30/partition wall for double station system/nc rotary table skh 4 / 630/horizontal faceplate
Face plate diameter 630 mm/standard height 300 mm/part accuracy +/- 12”/transport load max. 900 kg
Rotary table embedded in the machine table/direct measuring system for nc rotary tables/part accuracy +/- 51
Direct measuring system x-axis/(glass scale up to x = 2,000)/3d measuring probe with radio
With radio signal transmission to the control system incl. Control software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
