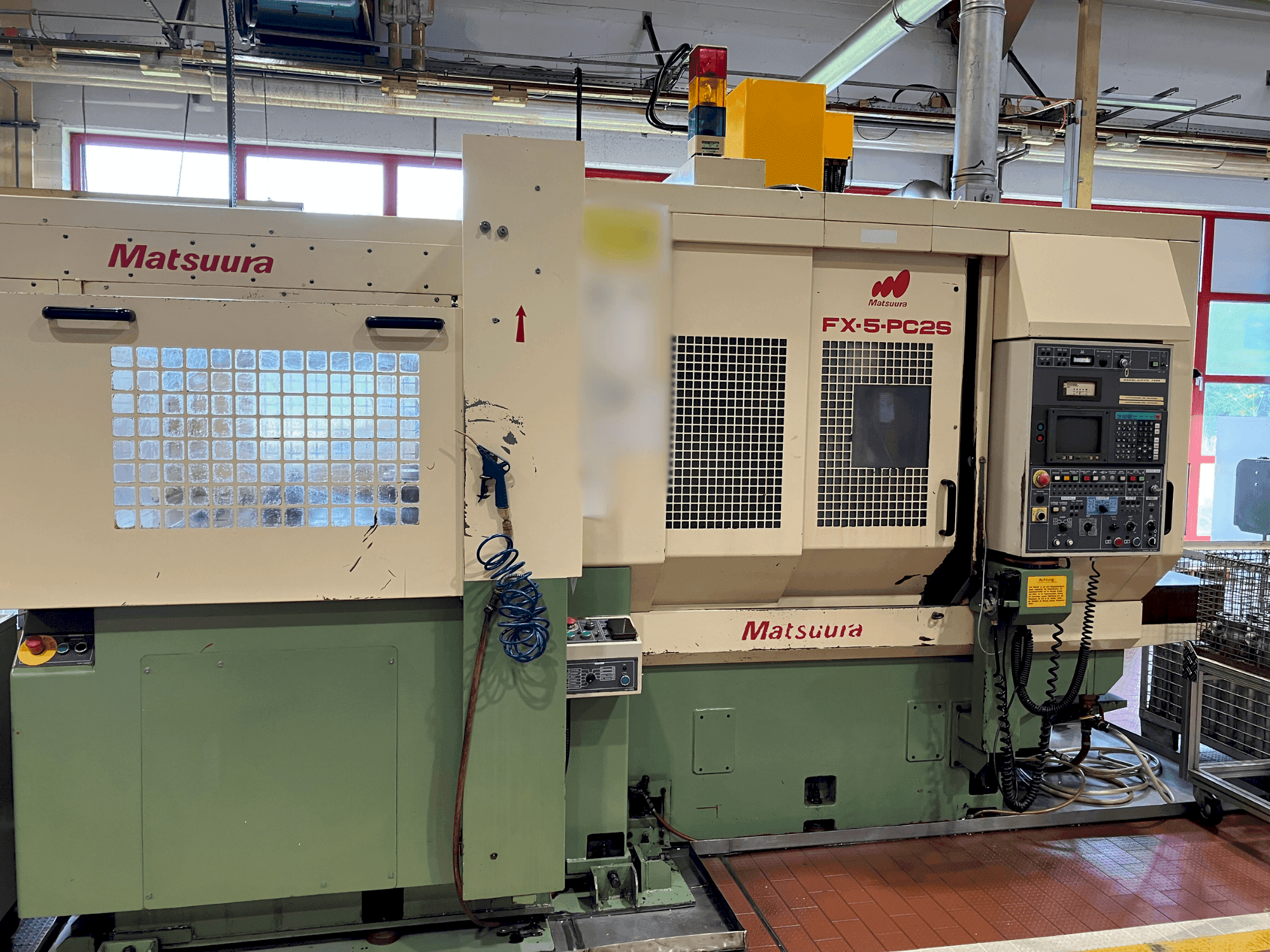

Front view of Matsuura FX-5-PC2S  machine

Matsuura - FX-5-PC2SDE-MIL-MAT-1993-00001

6,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Matsuura FX-5-PC2S was manufactured in 1993. A robust vertical machining centre featuring a pallet table of 1200*660 and a table load capacity of 600kg. It includes a chip conveyor, handwheel, and an oil cooler. The spindle operates at a power of 5.5/15 kW with a speed range of 200-2000 rpm. Ideal for those looking to buy this Matsuura FX-5-PC2S vertical machining centre. Reach out for further details regarding this vertical machining centre.

Overview

  • brand: Matsuura
  • year: 1993
  • MODEL: FX-5-PC2S
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: MATSUURA

Technical Information - Matsuura FX-5-PC2S

General Data

  • Measurements width: 5150 MM
  • Measurements depth: 7500 MM
  • Measurements height: 2825 MM
  • Machine weight: 10000 KG

Control Unit

  • Brand: MATSUURA

Main drive

  • Spindle speed range: 200-2000 1/MIN
  • Spindle motor power: 5.5/15 kW
  • Tool taper: SK 40

Movement

  • X-AXIS Movement: 1020 mm
  • X-AXIS Rapid traverse: 25 m/min
  • Y-AXIS Movement: 560 mm
  • Y-AXIS Rapid traverse: 25 m/min
  • Z-AXIS Movement: 400 mm
  • Z-AXIS Rapid traverse: 15 m/min

Table

  • Outer length: 1200 mm
  • Outer width: 660 mm
  • Table load: 600 kg

    Additional Equipment

    • - C-axis
    • - Chip conveyor link belt
    • - Handwheel
    • - Oil cooler

    Additional Information

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
