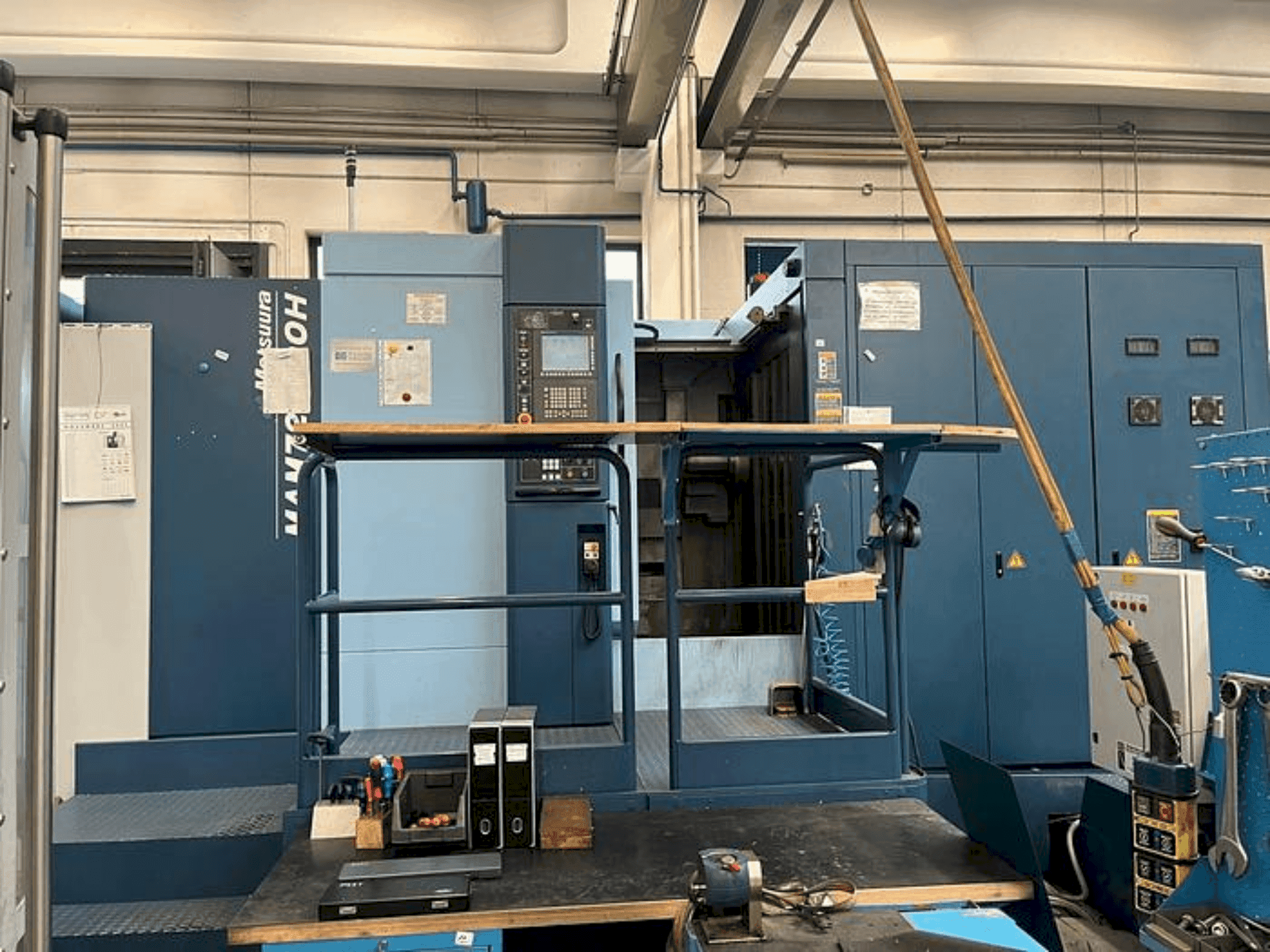

This 5-axis Matsuura MAM 72-100H was manufactured in 2016, offering advanced capabilities for efficient and precise machining. Ideal for complex parts, this horizontal machining centre is a robust addition to any production line. Consider the opportunity to buy this Matsuura MAM 72-100H horizontal machining centre. Contact us for more information.
Overview
- brand: Matsuura
- year: 2016
- MODEL: MAM 72-100H
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- availability: Immediately
Technical Information - Matsuura MAM 72-100H
General Data
- Measurements width: 3415 mm
- Measurements depth: 6015 mm
- Measurements height: 3500 mm
Movement
- X-AXIS Movement: 1050 MM
- Y-AXIS Movement: 920 MM
- Z-AXIS Movement: 960 MM
- A-AXIS Movement: +30°~-120° MM
- B-AXIS Movement: ±360° MM
Table
- Outer length: 630 mm
- Outer width: 630 mm
Media
- Chip conveyor: Yes
Additional Equipment
- - Tool Magazin: ATC 240 positions
- - Air Cleaner: AR Filtrazioni
- - Equipment: Chip conveyor, Laser tool presetting
Additional Information
- Technical Machine Benefits:
- - Rapid feed x-y: 60 m/min / rapid feed z: 50 m/min / rapid feed a-b: 50-75 rpm
- - Max work size: Ø 1000 mm x h 770 mm
- - Loading capacity: 780 kg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
