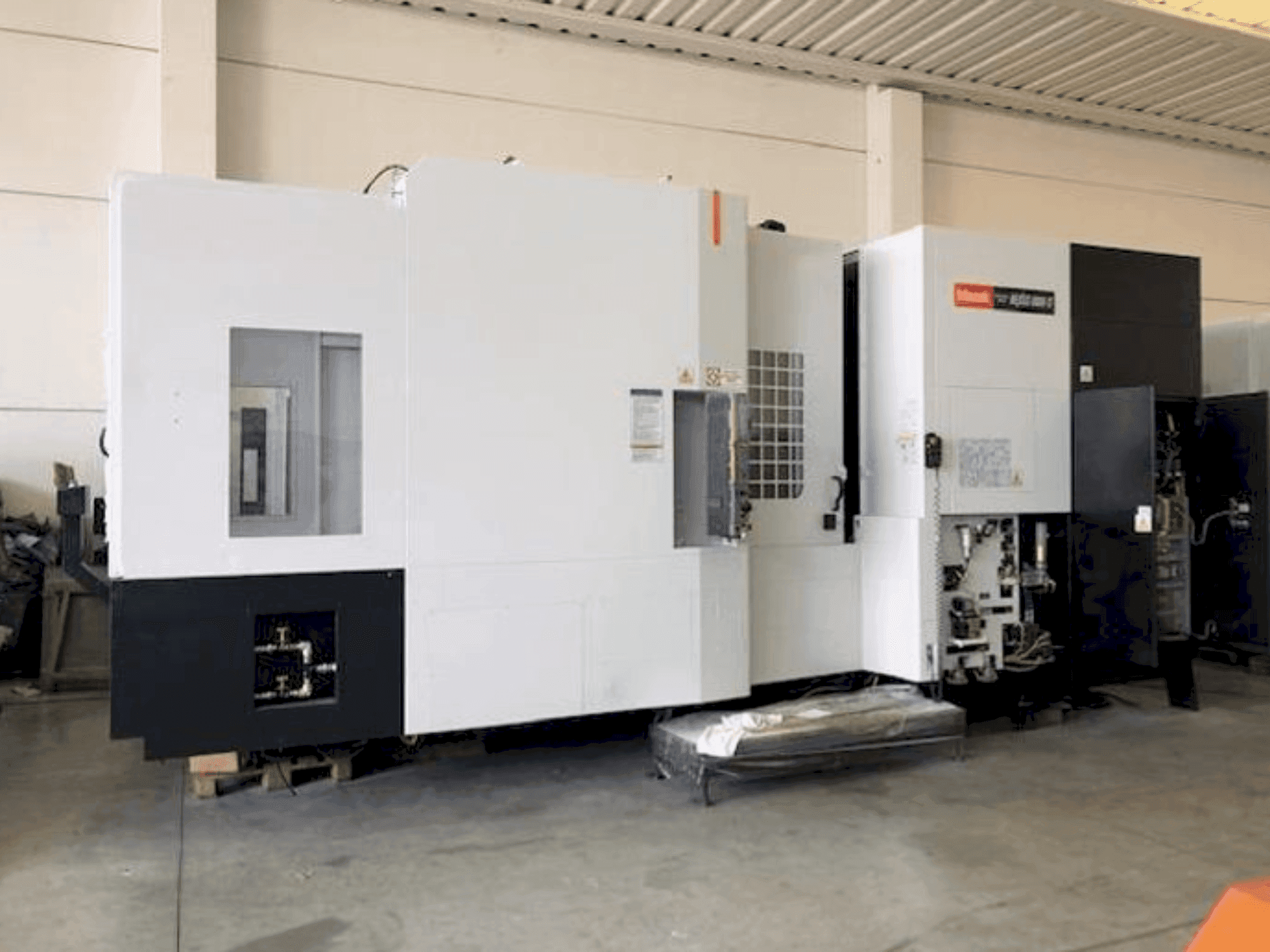

Front view of Mazak HCN-8800  machine

Mazak - HCN-8800IT-MIL-MAZ-2008-00003

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This MAZAK HCN-8800 Horizontal Machining centre was manufactured in the year 2008 in Japan. It is equipped with a MATRIX 1 control unit. The machine disposes of a 4 axis and a spindle. Tool magazin with a capacity of 120 tools.

Overview

  • brand: Mazak
  • year: 2008
  • MODEL: HCN-8800
  • application type: Milling
  • Location: Italy
  • machine type: Horizontal Machining Centre
  • availability: Sold

Technical Information - Mazak HCN-8800

General Data

  • Measurements width: 3881 mm
  • Measurements depth: 7966 mm
  • Measurements height: 3726 mm
  • Machine weight: 31300 kg

Control Unit

  • Model: 1

Main drive

  • Number of axis: 4

Movement

  • X-AXIS Movement: 1400 mm
  • X-AXIS Rapid traverse: 60000
  • Y-AXIS Movement: 1200 mm
  • Y-AXIS Rapid traverse: 60000
  • Z-AXIS Movement: 1325 mm
  • Z-AXIS Rapid traverse: 60000

Tools

  • Slots in storage: 120
  • Max weight: 30 kg
  • Max tool diameter: 250 MM
  • Max tool length: 630 MM

Media

  • Cooling pressure: 50 BAR

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Board length (board) 800 // board width (board) 800
      • - Distance between table top and spindle nose (table) 100-1425
      • - Max. Dimensions piece (length x width x height) (table) d. 1450 x h. 1450
      • - Table surface (spindle) tapped holes
      • - Max. Weight workpiece (mandrel) 2200
      • - Spindle (chuck) 8000 / spindle attachment (chuck) iso 50
      • - Torque (cont. / 10 min) (spindle) 1218 nm
      • - Tool selection method (atc magazine) fixed // tool change time (atc magazine) 5 sec.
      • - Cooling tank (coolant) 500l
      • - Table 800x800 4th axis continuous

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
