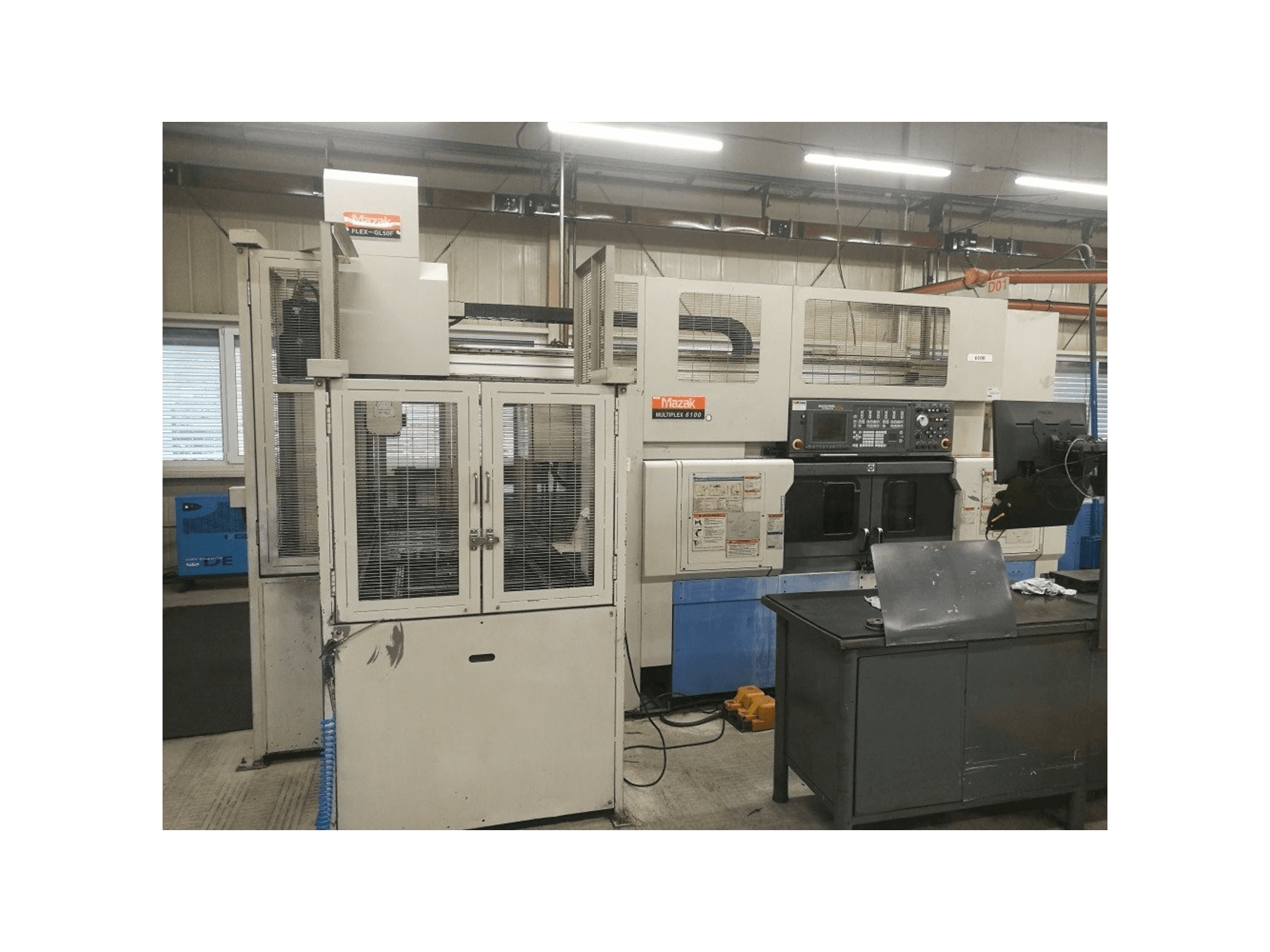

Front view of Mazak Multiplex 6100 + robot FLEX-GL50F machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Multiplex 6100 + robot FLEX-GL50F

Photo Gallery

Mazak - Multiplex 6100 + robot FLEX-GL50FCZ-TUR-MAZ-2001-00005

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MAZAK Multiplex 6100 + robot FLEX-GL50F Lathe

This MAZAK Multiplex 6100 + robot FLEX-GL50F Lathe was manufactured in the year 2001 in Japan. It is equipped with a Mazak Mazatrol 640T control unit and has 3 axis. The machine has a spindle speed of 6000 rpm, is in good condition and well maintained.

Overview

brand: Mazak
year: 2001
MODEL: Multiplex 6100 + robot FLEX-GL50F
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Multiplex 6100 + robot FLEX-GL50F

Control Unit

Control Brand: MAZATROL
Control Model: Mazatrol 640T

Dimensions

Machine Depth: 1650 mm
Machine Height: 2090 mm
Machine Weight: 6400 kg

Movement

Number of Axes: 3
X-axis Travel: 200 mm
Z-axis Travel: 365 mm

Technical Specification

Spindle Speed: 6000 RPM
Tool Stations: 12

Additional Information

Additional equipment

Mazak Flex GL-50F portal robot (2001)
Tool holders incl. driven holders
Tool holders - · External holder: 7x · Internal holder: 9x · Front holder: 4x · Horizontally driven: 10x · Vertically driven: 3x

Machine Benefits

Qualitative Machine Benefits

Good condition
Regularly serviced and maintained

Technical Machine Benefits

Maximum cutting diameter 230 mm
Distance between spindles 1030 mm
Maximum cutting length 700 mm
Spindle through hole 61 mm
Max. Bar diameter 51 mm
Spindle motor power (cont. /25%) 7. 5/11 kw
Rapid feedrates x/z/y 30/33 m/min
C axis on both spindles
Max. Milling tool speed 4500 rpm, power 3. 7 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
