- Mazak MTV 655/60N Vertical Machining center

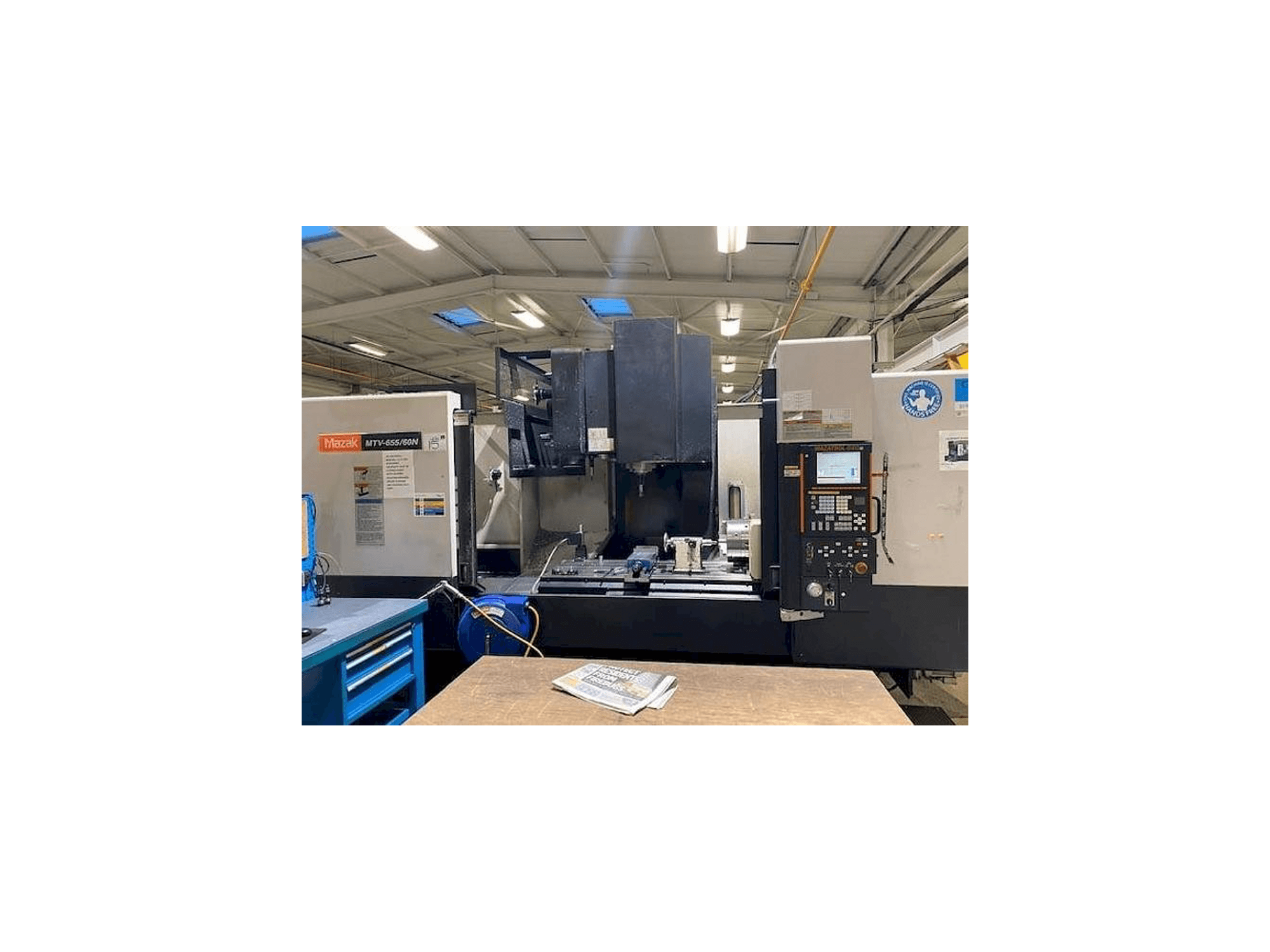

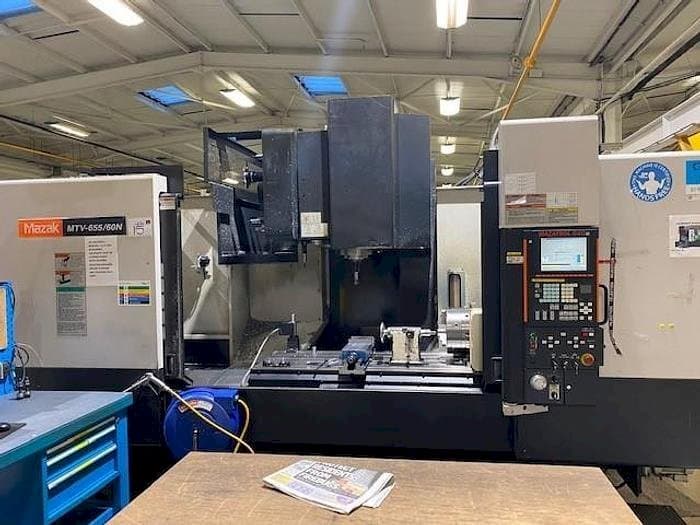

This Mazak MTV 655/60N Vertical Machining center was built in 2007. It is operated through a Mazatrol 640 control unit and has 4 axis. The machine works with a spindle speed of up to 6000 rpm. Includes a chip conveyor.
Overview
- brand: Mazak
- year: 2007
- MODEL: MTV 655/60N
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: MAZATROL
Technical Information - Mazak MTV 655/60N
Control Unit
- Brand: MAZATROL
- Model: 640
Main drive
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 18,5 Kw
- Number of axis: 4
Movement
- X-AXIS Movement: 1500 mm
- Y-AXIS Movement: 650 mm
- Z-AXIS Movement: 650 mm
Table
- Outer length: 1740 mm
- Outer width: 650 mm
Additional Equipment
- - Chip conveyor
Additional Information
- Technical Machine Benefits:
- - Rapid feed x, y 26 m/min - z 20 m/min
- - Tool turret 30 positions
- - Tool shank cat-50
- - The mazatrol 640 control is a conversation / dialoog
- - The 4 axis can be disassembled and is integrated by the cnc
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
