Mazak VTC-300C-II

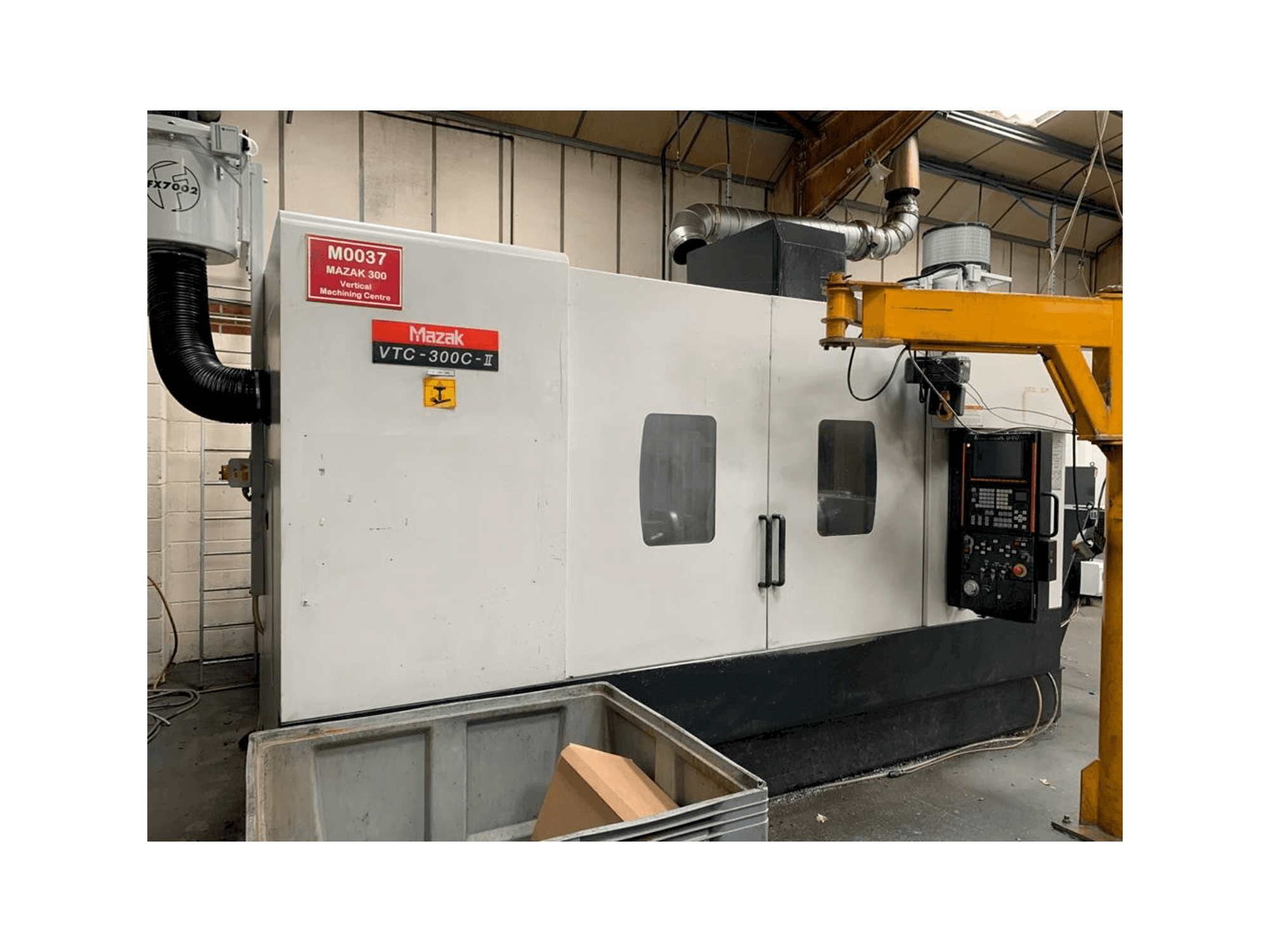

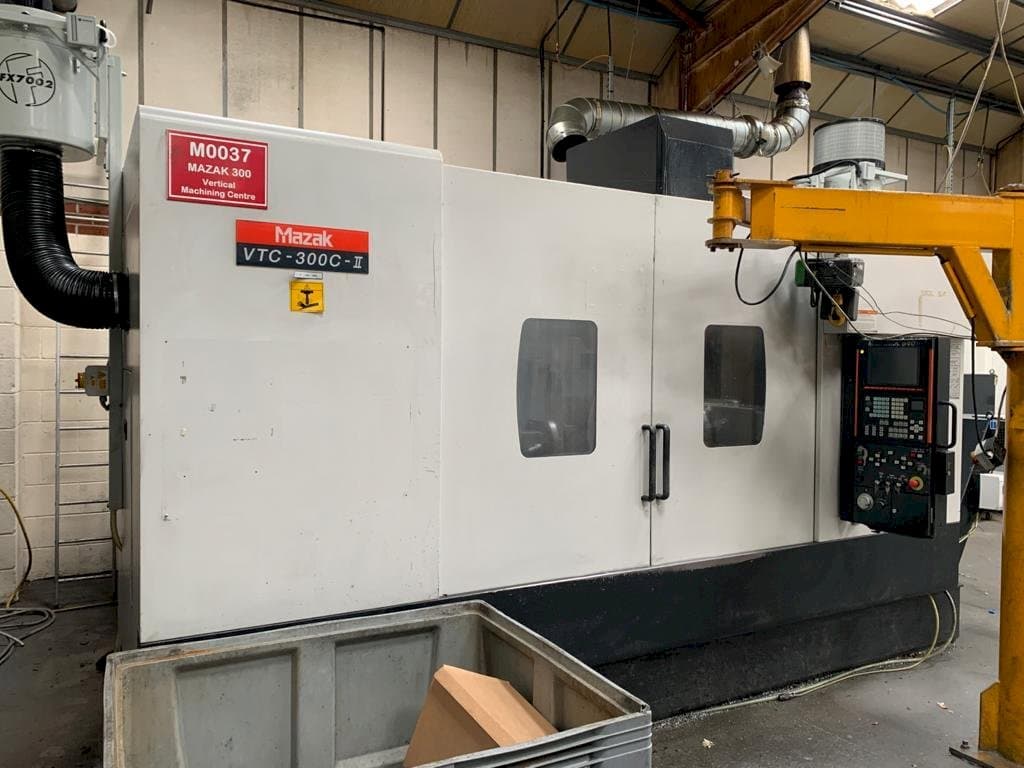

This Mazak VTC-300C-II Vertical Machining Center was made in the United Kingdom in the year 2009. It is equipped with a MAZATROL 640M control unit. This 3 axis machine counts with a spindle speed up to 12000 rpm. It includes an interlocked guards and a Low Volt Light as many other technical benefits. This machine is in very good conditions.

Overview

brand: Mazak
year: 2009
MODEL: VTC-300C-II
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VTC-300C-II

Control Unit

Control Brand: MAZATROL
Control Model: 640M

Dimensions

Machine Depth: 3460 mm
Machine Height: 3086 mm
Machine Weight: 11000 kg
Table Length: 2000 mm
Table Width: 760 mm

Movement

Number of Axes: 3
X-axis Travel: 1740 mm
Y-axis Travel: 760 mm
Z-axis Travel: 660 mm

Technical Specification

Number of Tools: 30
Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

4th axis rotary table
Coolant
Low volt light
Interlocked guards
Rapid feedrates 36 m/min
Swarf conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
