Mazak VTC 800/30 SR

Photo Gallery

Mazak - VTC 800/30 SRES-MIL-MAZ-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

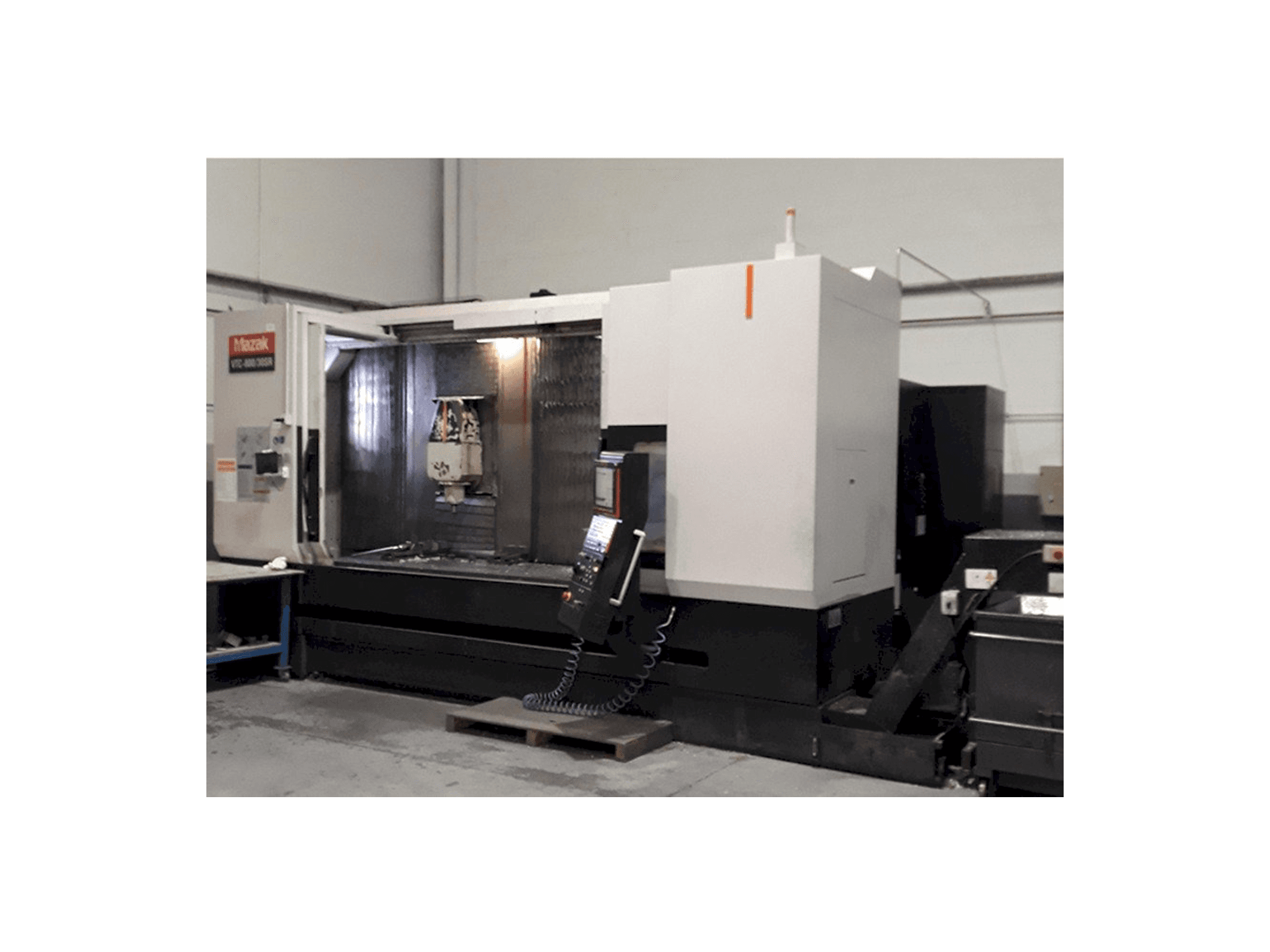

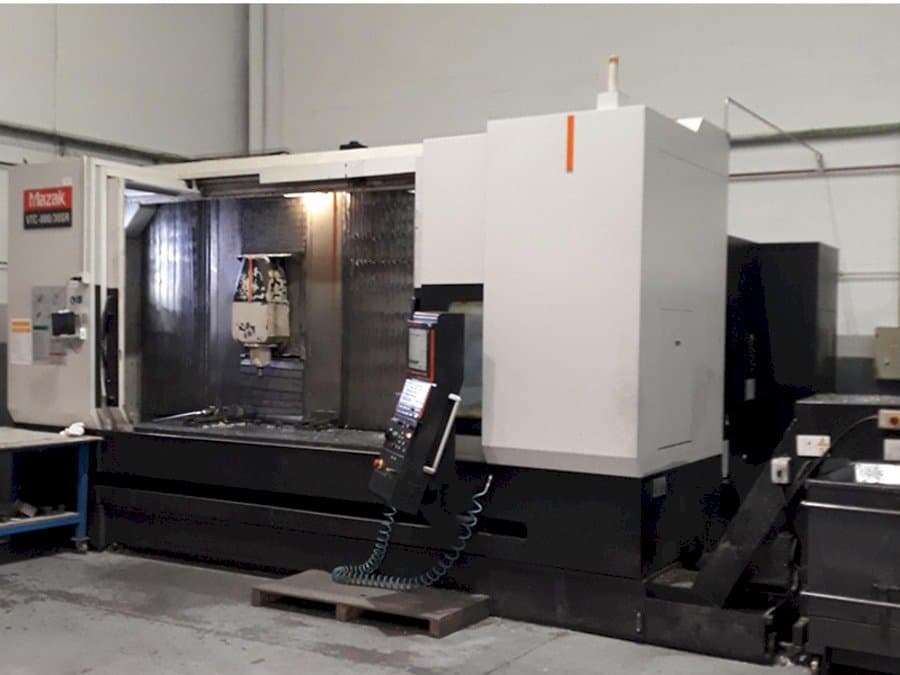

➤ Used Mazak VTC 800/30 SR Vertical Machining Center

This Mazak VTC 800/30 SR Vertical Machining Center was made in the year 2008. It is equipped with a Mazatrol Matrix control unit. It has been on for 28495, of which 14323 are spindle hours. This 5 axis machine is capable of performing with a spindle speed up to 18000 rpm.

Overview

brand: Mazak
year: 2008
MODEL: VTC 800/30 SR
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC 800/30 SR

General Data

Measurements width: 5250 mm
Measurements depth: 4174 mm
Measurements height: 3328 mm
Machine weight: 16300 kg

Control Unit

Model: MAZATROL MATRIX
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 2500 kg

Table

Outer length: 3500 mm
Outer width: 820 mm
Number of tslots: 7
Distance between: 100 mm

Tools

Slots in storage: 48
Max weight: 8 kg
Max tool diameter: 130 mm
Max tool length: 350 mm
Type of tool holder: BT 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
