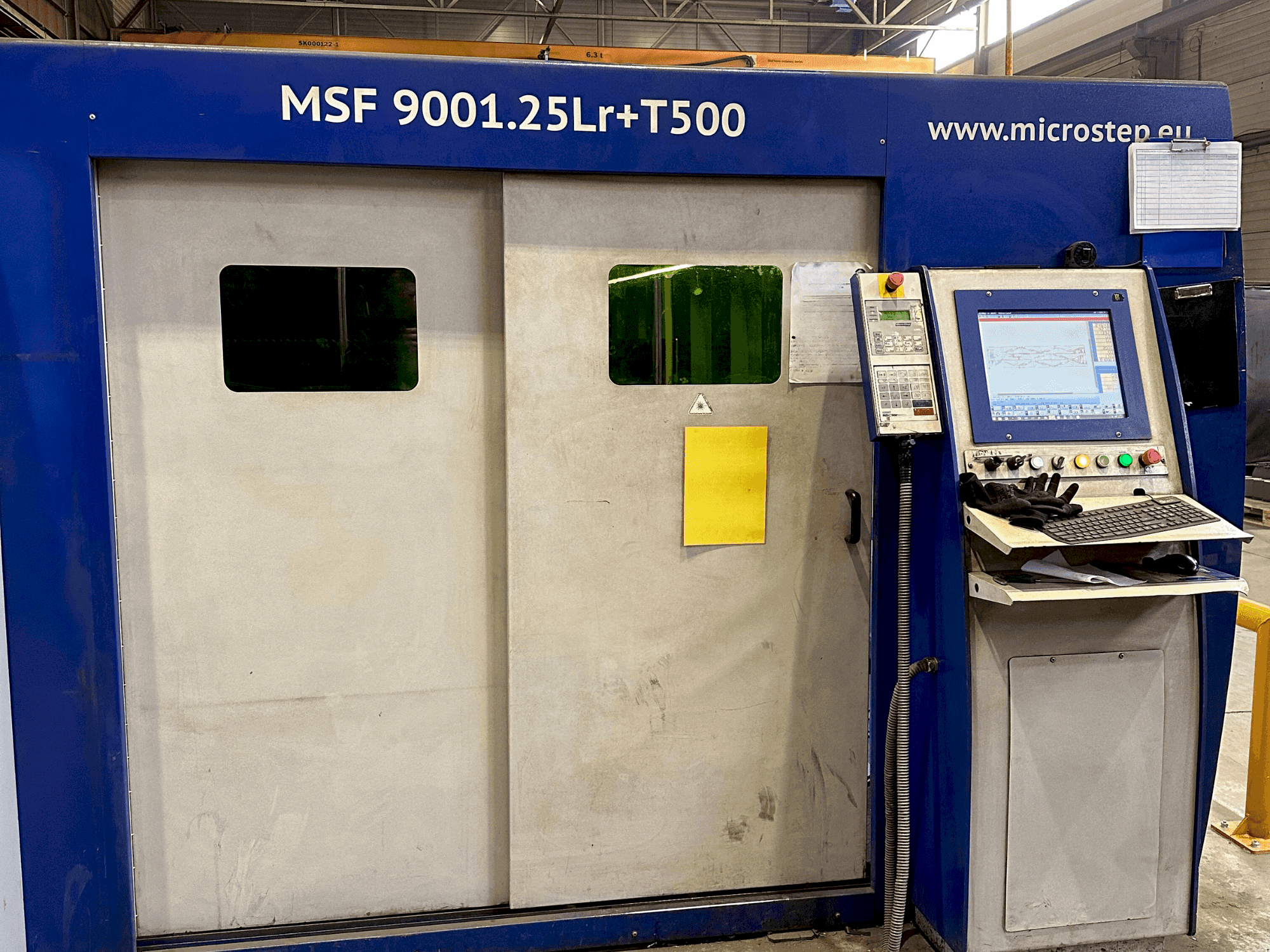

MicroStep - MSF 9001.25Lr+T500 (2015)SK-LAS-MIC-2015-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- MICROSTEP MSF 9001.25Lr+T500 Fiber laser cutting machine
This MICROSTEP MSF 9001.25Lr+T500 Fiber laser cutting machine was manufactured in 2015 in Slovakia. It is equipped with a 10kW laser, nLight CORONA-CFX-10000. The working area is 9000 x 2500 mm and the maximum cutting capacity is up to structural steel of 25 mm. As additional equipment the machine comes with Donaldson DFPR08 extraction equipment, automatic lubrication system and beam guidance via light cable. The machine was retrofitted in 2022.
Overview
- brand: MicroStep
- year: 2015
- MODEL: MSF 9001.25Lr+T500 (2015)
- production hours: 24000
- application type: Cutting
- Location: Slovakia
- machine type: Fiber Laser Cutting Machine
- availability: Immediately
Technical Information - MicroStep MSF 9001.25Lr+T500 (2015)
General Data
- Measurements width: 6000 mm
- Measurements depth: 23000 mm
- Measurements height: 2570 mm
Main drive
- Laserpower: 10 kW
Additional Equipment
- - Extraction: Donaldson DFPR08
- - Lubrication system: automatic
- - Beam guidance: via light cable
- - Automatic lower slag conveyor
- - 1x slag drawer
- - Suction segments under the grate
- - Pallet table changer 2 tables
- - Calibration station for bevel cut rotator
Additional Information
- Technical Machine Benefits:
- - 3d bevel head cutting up to 50°
- - Working area 9000 mm x 2500 mm (sheet 9x2. 5 m)
- - Source power: 10kw
- - Source: nlight corona-cfx-10000
- - Head: thermacut ex-trabeam-pro-360 komplet
- Qualitative Machine Benefits:
- - The maximum cutting capacity of the source with a power of 10kw (up to structural steel of 25 mm)
- - Positioning speed: up to 130m/min when moving in the direction of one axis; 140m/min when moving in both axes
- - Automatic nozzle cleaning
- - Automatic targeting of sheet rotation
- - Adaptive cutting – the head adapts itself to the sheet (e. G. Corrugated sheet)
- - Remote support
- - Protective glass against lens contamination
- - Camera in the head
- - 0-point laser sight
- - At 6kw source before the retrofit action → from 1/1/2018 to 31/3/2022 → number of hours cut 18001h after upgrading to 10kw source → from 1/4/2022 to 28/2/2024 → number of hours cut 6391h
- - Touch LED panel // Complete technical documentation // Software for programming the machine 2x Asper license // Consumable parts, e.g. (nozzles, head glasses, rings...) // Possible to Bevel cut of rounds, pipes, profiles in separated station near sheet cutting
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
