- ➤ Used MicroStep SPL-P 4501.25 For Sale | gindumac.com

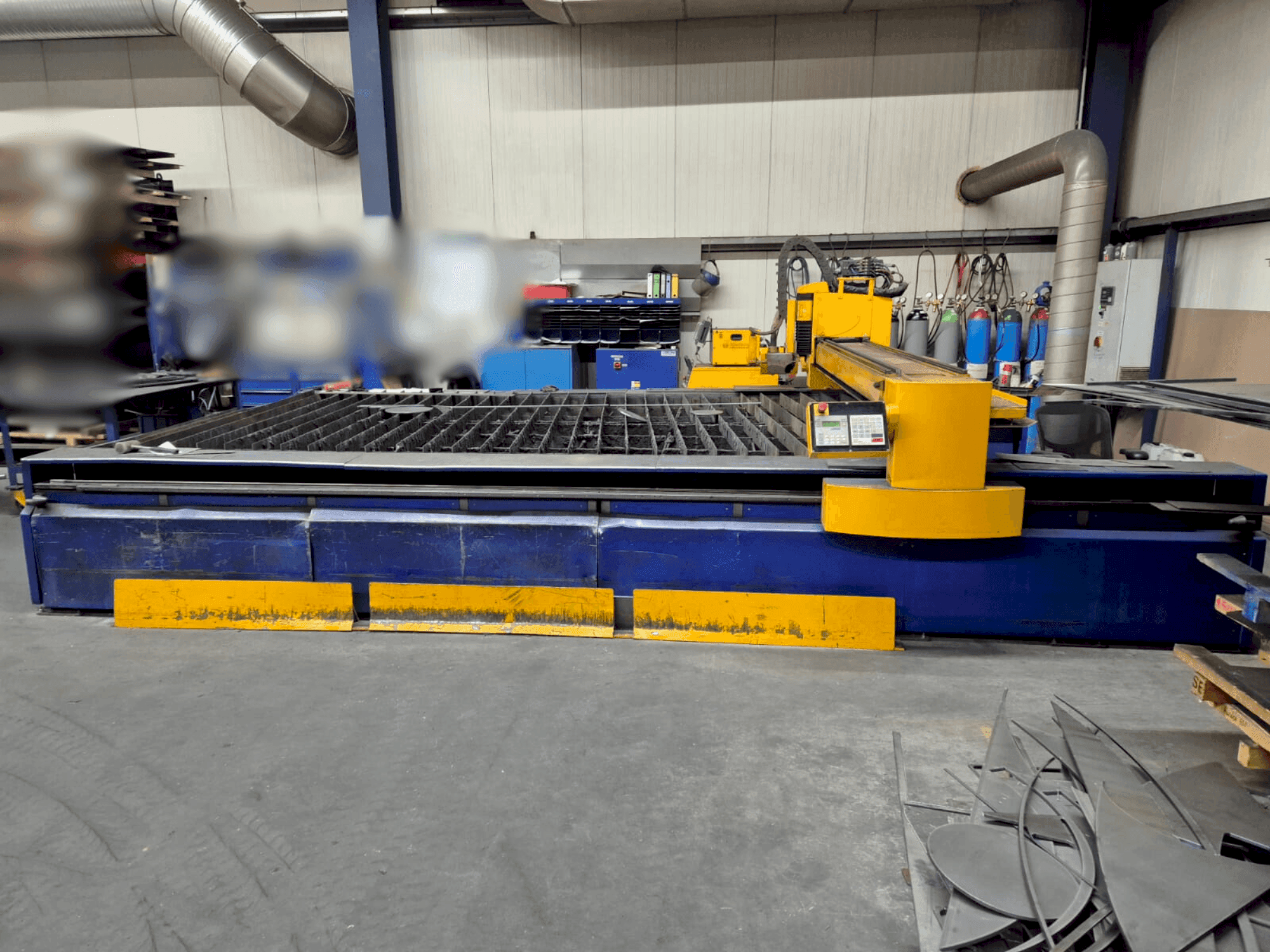

This plasma cutting machine was manufactured in 2008. It features a CNC control MSNC500P Windows and a plasma source with a cutting range of 0.5 to 25/30mm, adjustable from 10 to 160 A for cutting. The flame cutting table measures 4500x2000mm, suitable for both plasma and oxyfuel cutting. It operates efficiently within a temperature range of +5 to +45 °C. Consider the opportunity to buy this MicroStep SPL-P 4501.25 plasma cutting machine. Contact us for more information about this machine.
Overview
- brand: MicroStep
- year: 2008
- MODEL: SPL-P 4501.25
- production hours: 22560
- application type: Cutting
- Location: Germany
- machine type: Plasma Cutting Machine
- availability: Immediately
Technical Information - MicroStep SPL-P 4501.25
General Data
- Measurements width: 540 MM
- Measurements depth: 960 MM
- Measurements height: 1050 MM
- Machine weight: 196 KG
Table
- Outer length: 4500 mm
- Outer width: 2000 mm
Additional Information
- Technical Machine Benefits:
- - Cnc control: msnc500p windows
- - Plasma source cutting range: 0. 5 to 25/30mm (up to 50mm st-material separating cut)
- - Plasma source power: continuously adjustable from 10 to 160 a (cutting) and 4 to 25 a (marking)
- - Connected load: 38 kva
- - For plasma and oxyfuel cutting of sheet metal up to 100mm thickness
- - For plasma and oxyfuel cutting of sheet metal up to a material thickness of 100mm in a total length of 4500mm, section width 500mm, suction channel diameter 280mm
- - Overall dimensions: 6100x3384mm
- - Working temperature: +5 to +45 °c
- - Max. Humidity: 90% (at 20°c)
- - Power input: max. Kva 3 kw (230v, 50hz, 16a)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
