MIKRON - Multistar CX 24DE-MIL-MIK-2003-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Used Rotary Transfer Machine MIKRON Multistar CX 24 (2003) for sale | GINDUMAC.COM

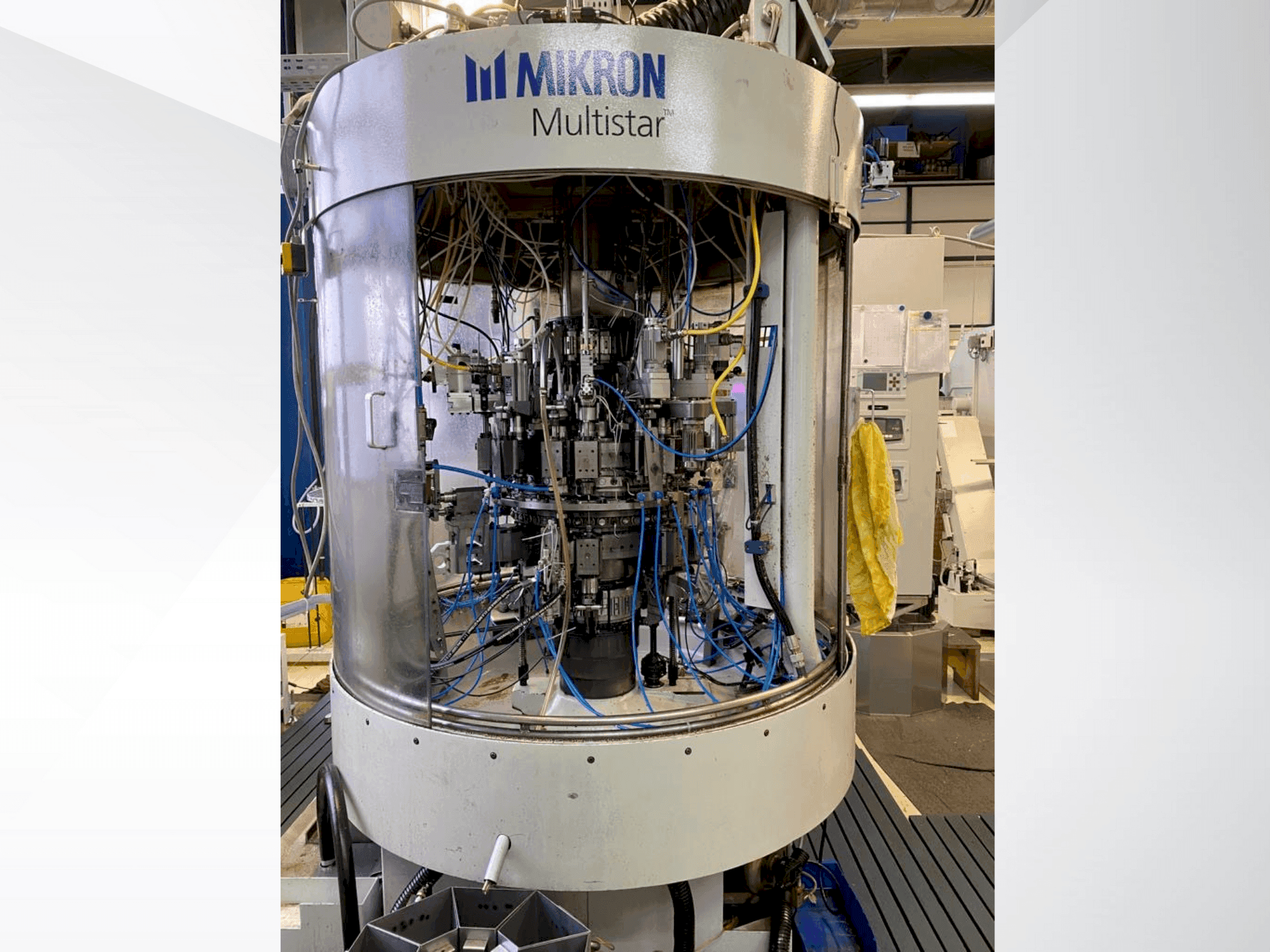

This MIKRON Multistar CX 24 Rotary Transfer Machine was manufactured in the year 2003 in Switzerland. It excels in accurately producing part families and intricate workpieces in large quantities. Its table index offers exceptional repeatability of ± 2.5 µm. With 24 stations equipped with up to 44 machining units, it ensures incredibly high output rates. This Rotary Transfer Machine located in Germany comes with loading station (brass D= 3.9mm), unloading station, part selector (8 compartment, see picture), lateral drilling unit, rotating straightener (October 2023 completely new in stock), feed / sawing unit (control and inverter overhauled in 2021), pneumatic loading (via feed pipe), chip conveyor with waste water pump, KNOLL coolant system (2,000 liters) with drum screen filter, flushing pump and vacuum pump including low-pressure pump (5 bar) and high-pressure pump (60 bar). Tailored for industries such as electrical, automotive, gas, medical, and watchmaking, the Mikron Multistar CX-24 is renowned for its precision, speed, adaptability, and ability to be tailored to specific needs – making it a standout performer in its class. Several modifications have been made for this machine, from cables replacement to complete overhaul of the saw (see extra information below for full description of all modifications). Product brochures (DE/EN) attached for more details information on technical specifications. Contact us anytime for further questions.
Overview
- brand: MIKRON
- year: 2003
- MODEL: Multistar CX 24
- application type: Milling
- Location: Germany
- machine type: CNC Milling Machine
- availability: Immediately
Technical Information - MIKRON Multistar CX 24
General Data
- Measurements width: 1950 mm
- Measurements depth: 5200 mm
- Measurements height: 2900 mm
- Machine weight: 4500 kg
Main drive
- Spindle speed range: 23000 1/MIN
Tools
- Number of stations: 24
Additional Information
- Technical Machine Benefits:
- - 1 x loading station (brass d= 3. 9mm)
- - 1 x unloading station
- - 1 x part selector (8 compartment, see picture)
- - 1 x lateral drilling unit
- - 1 x rotating straightener (october 2023 completely new in stock)
- - 1 x feed / sawing unit (control and inverter overhauled in 2021)
- - 1 x pneumatic loading (via feed pipe)
- - 1 x chip conveyor with waste water pump
- - 1 x knoll coolant system (2,000 liters) with drum screen filter, flushing pump and vacuum pump incl. Low-pressure pump (5 bar) and high-pressure pump (60 bar)
- Qualitative Machine Benefits:
- - Several modifications made from motor and sensor cables replacement to complete overhaul of the saw (see extra information for full description of the modifications)
- - The following modifications were made to the system: Machine (All motor cables replaced / All sensor cables replaced / PLC program was adapted to show and hide collets / Conversion to Knoll coolant system / Circuit diagram was changed by hand / Frequency converter was replaced / Parts selector was attached to the machine together with oil pump for oil return. /// Saw: The saw control system was converted to a Mitsubishi i-QR control system // The complete electronics of the saw were renewed // The saw was completely overhauled mechanically.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
