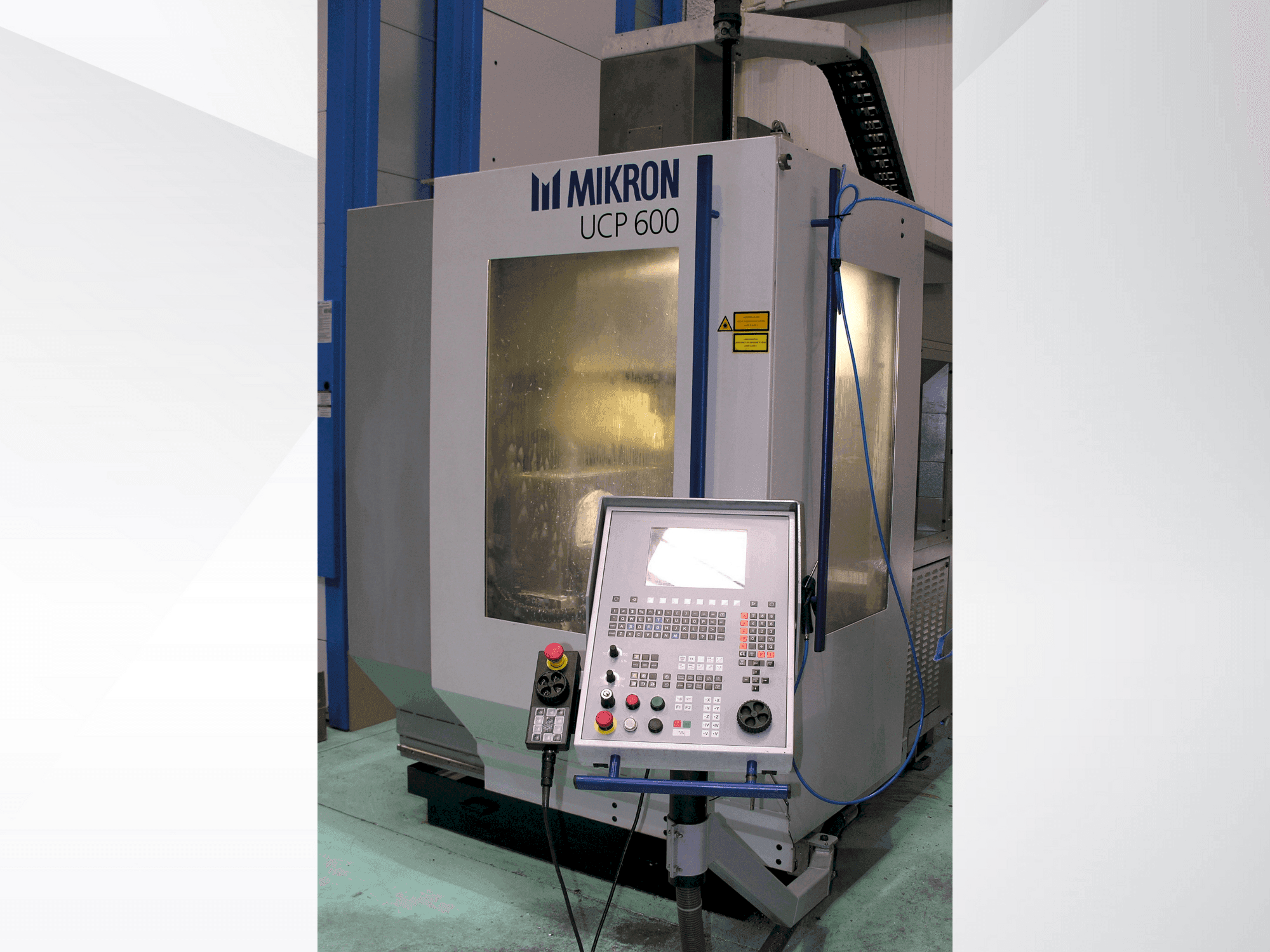

This 5-axis MIKRON UCP 600 vertical machining center was manufactured in 2000. It features a spindle speed of 42,000 rpm, a spindle power of 14 kW, and a rapid feed rate of 22 m/min. The machine includes a Heidenhain 430M CNC, Renishaw OMP 40 probe, and can handle a maximum table load of 200 kg. Ideal for complex and precise machining tasks, the MIKRON UCP 600 machine we have for sale is well-maintained and upgraded. Contact us for further details.
Overview
- brand: MIKRON
- year: 2000
- MODEL: UCP 600
- application type: Milling
- Location: Spain
- machine type: Universal Machining Centre
- availability: Immediately
- control unit brand: Heidenhain
Technical Information - MIKRON UCP 600
Control Unit
- Brand: Heidenhain
- Model: 430M
Main drive
- Spindle speed range: 42,000 1/MIN
- Spindle motor power: 14 kw
- Tool taper: HSK E-40
Movement
- X-AXIS Movement: 530 mm
- X-AXIS Working Feed: 15 m/min
- X-AXIS Feed Force: 22 m/min
- Y-AXIS Movement: 450 mm
- Y-AXIS Working Feed: 15 m/min
- Y-AXIS Feed Force: 22 m/min
- Z-AXIS Movement: 450 mm
- Z-AXIS Working Feed: 15 m/min
- Z-AXIS Feed Force: 22 m/min
Table
- Table load: Max 200kg
Tools
- Slots in storage: 36
- Max tool diameter: 16 mm
Additional Equipment
- - Workpiece Measurement Probe: Renishaw OMP 40
- - Workpiece Breakage Probe: BLUM (included but not installed)
- - Thermal cones, collet chucks, and Franken PGR holders
- - Custom-made post-processor for Mastercam with direct machine simulation
Additional Information
- Technical Machine Benefits:
- - Tool change time: 5 seconds
- - Cradle rotation: -15º to 122º
- - Table diameter: 280 mm
- Qualitative Machine Benefits:
- - Upgrades made to enhance the machine's precision, including a lubricated bushing on the cradle support, the spindle has been serviced with new bearings, tie rods, etc. , the bellows are brand new, and components that were worn out from use have been replaced
- - The original support was directly on cast iron, which tended to seize up
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
