➤ Used MIKRON UME-560 For Sale | gindumac.com

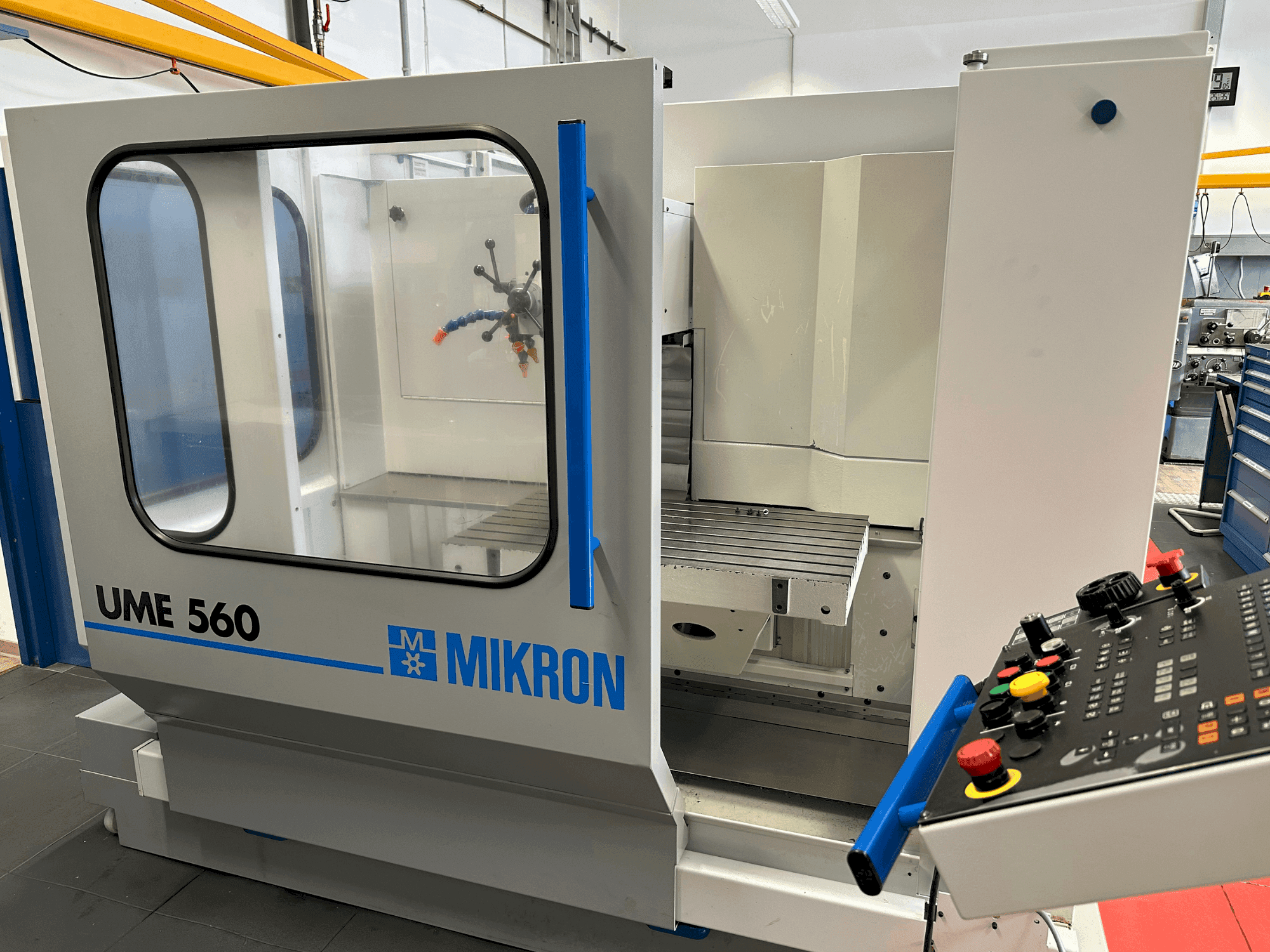

This 3-axis MIKRON UME-560 was manufactured in 1995. It features a longitudinal movement of 560 mm, transverse movement of 500 mm, and vertical movement of 400 mm. With a spindle speed range of 40-4000 rpm and a tool holder ISO 40, it's ideal for precise machining tasks. Consider the opportunity to buy this MIKRON UME-560 vertical machining centre. Contact us for more information about this machine.

Overview

brand: MIKRON
year: 1995
MODEL: UME-560
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON UME-560

Control Unit

Control Brand: HEIDENHAIN
Control Model: 415B

Additional Information

Machine Benefits

Technical Machine Benefits

Dimensions of machine (lxwxh): 2570x1800x2140 mm / weight (kg): 2570 kg / total installed power: 10 kw / effective power: 7. 3 kw / operating voltage and frequency: 3 x 380 v – 50/60 hz / control voltage: 24 v dc
Axes: 3 / longitudinal movement x: 560 mm / transverse movement y: 500 mm / vertical movement z: 400 mm / rapid traverse speed x and y axes: 5000 mm/min / rapid traverse speed z axis: 5000 mm/min
Tool holder: iso 40
Vertical quill stroke: 90 mm / feed rate: infinitely variable from 90-3000 mm/min
Standard color: textured paint ral 6011 green / basic machine equipment: according to configuration list wf 31 d

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
