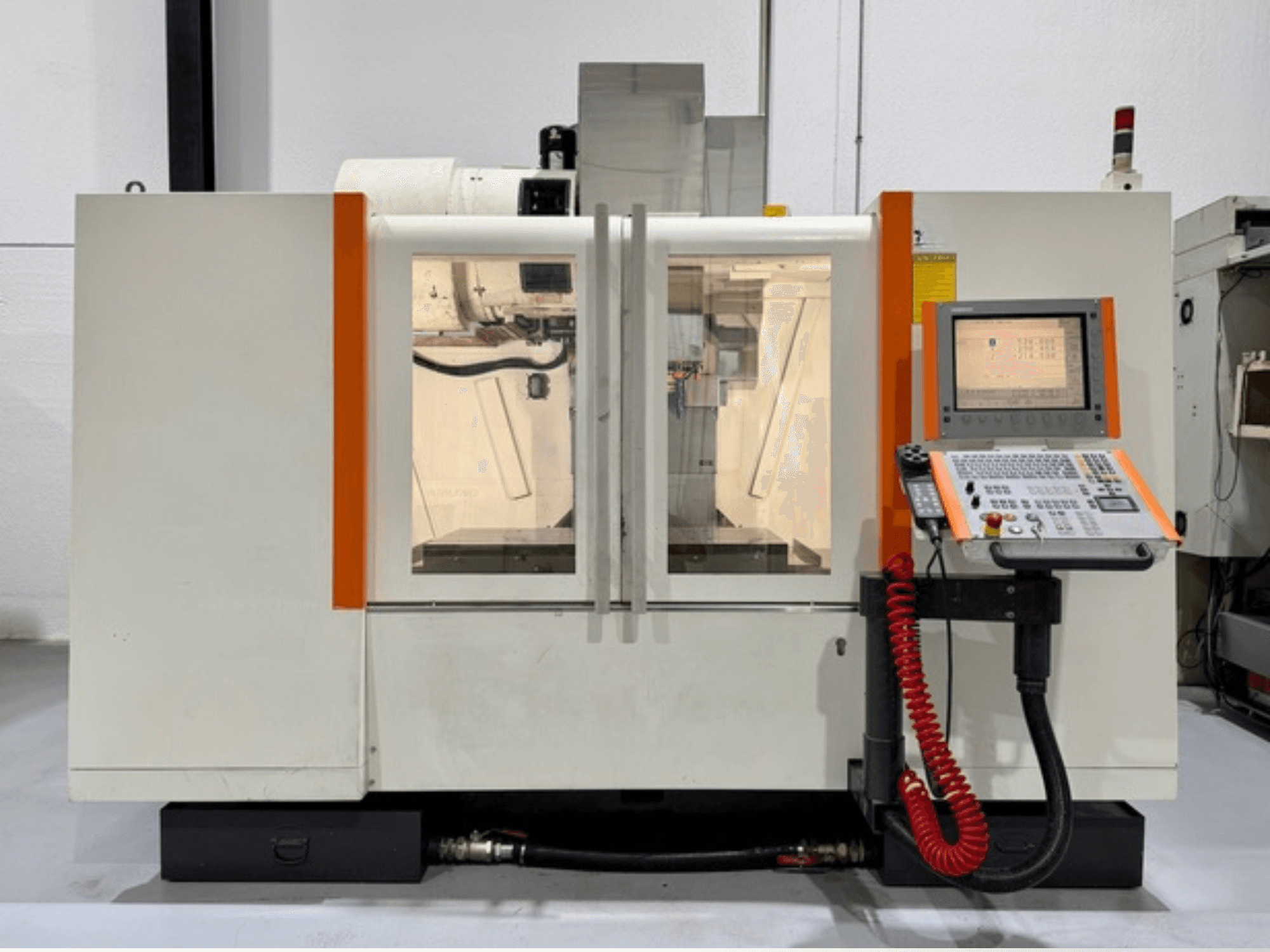

CNC machine with orange accents, front view. Includes control panel and visible interior workings.
CNC machine with orange accents, front view. Includes control panel and visible interior workings.

Thank you for your visit

This machine was recently sold.

Browse similar machines

MIKRON - VCE 1200 PROES-MIL-MIK-2011-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

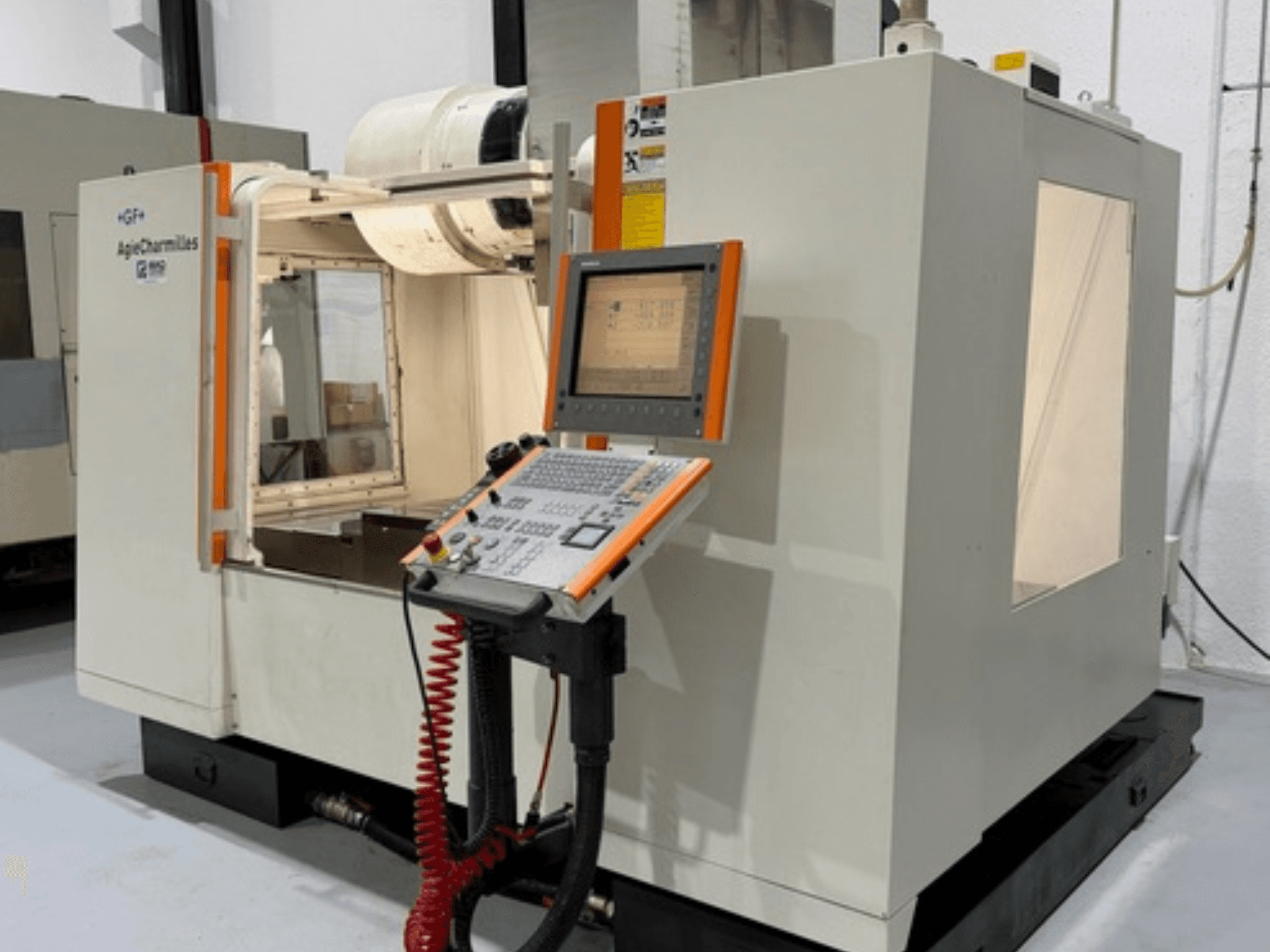

This 3-axis MIKRON VCE 1200 PRO was manufactured in 2011, featuring a robust vertical machining centre design. It boasts a table size of 1,220 x 620 mm, capable of handling a maximum weight of 1,700 Kg. Equipped with a spindle speed of 10,000 rpm and a motor power of 18.5 Kw, it ensures efficient machining. Tool capacity stands at 40 positions with a max tool diameter of 75 mm. Contact us for more information about this machine.

Overview

  • brand: MIKRON
  • year: 2011
  • MODEL: VCE 1200 PRO
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - MIKRON VCE 1200 PRO

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Height: 2790 mm
  • Machine Length: 3000 mm
  • Machine Weight: 8000 kg
  • Table Load: 1700 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1200 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 670 mm

Technical Specification

  • Spindle Power: 18.5 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: BT 40

Additional Information

  • X/Y/Z rapid traverse: 30 m/min

  • Tool stations: 40 positions

  • Max. tool diameter: 75 mm / 127 mm

  • Max. tool length: 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
