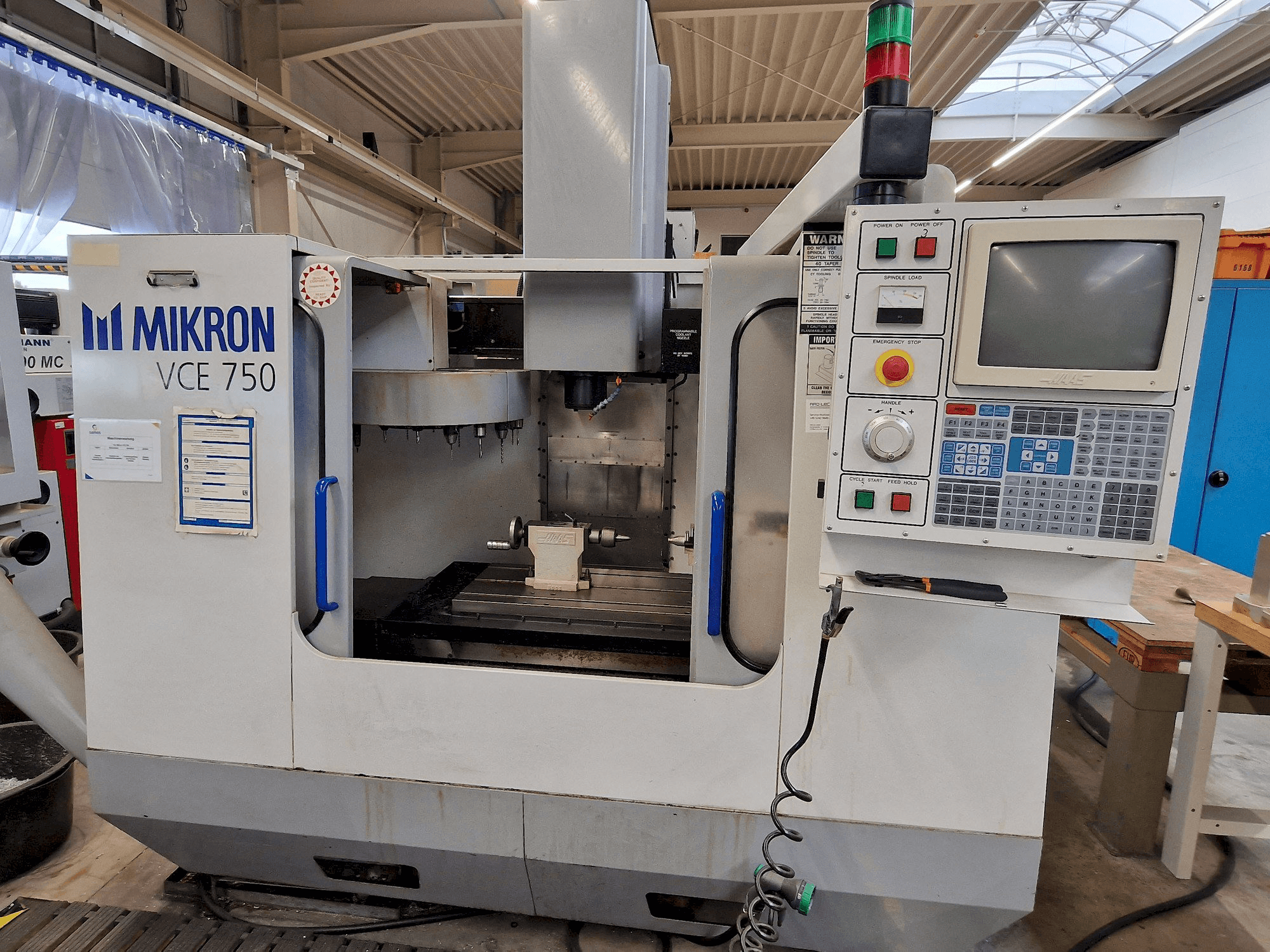

Front view of MIKRON Vce 750  machine

MIKRON Vce 750

MIKRON - Vce 750

2000

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This MIKRON Vce 750 Vertical Machining center was manufactured in the year 2000 in the United States. It is equipped with a HAAS HRT-210 control unit and has 3 axis. The machine has a spindle speed of 10- 7500 rpm.

Overview

  • brand: MIKRON
  • year: 2000
  • MODEL: Vce 750
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: HAAS
  • GINDUMAC ID: DE-MIL-MIK-2000-00002

Technical Information

General Data

  • Measurements width: 4500 mm
  • Measurements depth: 3700 mm
  • Measurements height: 2500 mm
  • Machine weight: 3600 kg

Control Unit

  • Brand: HAAS
  • Model: HRT-210

Main drive

  • Spindle speed range: 10-7500 1/MIN
  • Spindle motor power: 11 kW
  • Tool taper: ISO 40/DIN69871
  • Number of axis: 3

Movement

  • X-AXIS Movement: 760 mm
  • Y-AXIS Movement: 420 mm
  • Z-AXIS Movement: 500 mm

Table

  • Outer length: 910 mm
  • Outer width: 560 mm
  • Table load: 1350 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Feed max. : 5000 mm/ min.
      • - Rapid traverse max. : 12700 mm/ min
      • - Cnc path control haas 20-fold tool changer
      • - Coolant device
      • - Chip conveyor
      • - Dividing head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
