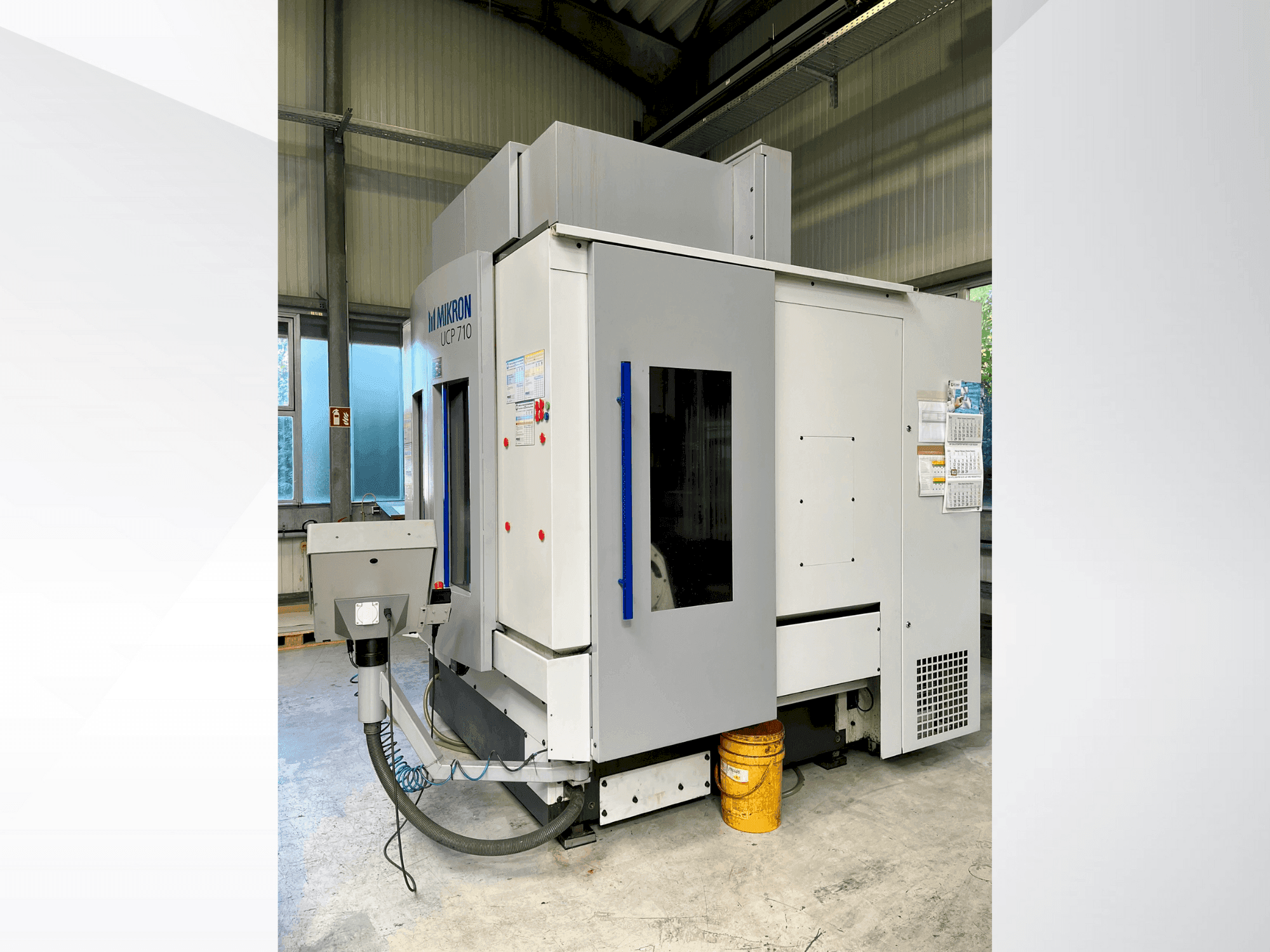

MIKRON - VCP/UCP 710DE-MIL-MIK-1999-00002

Additional Equipment

• - Number of Tools: 30-fold tool changer
• - Rotary Tilting Table
• - Belt Filter System: PITRAG
• - Tool Changer: Maximum tool diameter: 90 mm (fully loaded), 140 mm (partially loaded)/ Maximum tool length: 300 mm without taper/ Maximum tool weight: 8 kg / Maximum total weight of all tools: 180 kg in drum magazine
• - Feed Drives / Ball Screws: X-axis: 50 x 20 mm / Y/Z-axis: 40 x 20 mm
• - Programmable Speed: XY: 0-15,000 mm/min / Z: 0-20,000 mm/min / Maximum Rapid Traverse: XY: 30 m/min / Z: 30 m/min
• - Maximum Feed Force: X,Y: 7,000 N / X,Y: 7,000 N / Measurement Systems / Measurement Systems
• - Measurement Systems: VCP 710: 9,000 kg / UCP 710: 9,400 kg
• - Transport Dimensions (Pallet): Height: 3,250 mm / Length: 2,350 mm / Depth: 2,930 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Versatile rotary tilting table for enhanced machining capabilities.
  • - Large tool capacity for efficient tool management.
  • - Power: 16 kw at 44% duty cycle, 12 kw at 100% duty cycle
• Qualitative Machine Benefits:
  • - Precision control with the heidenhain tnc430 for accurate machining.

Extra information

• - Machine hours: Spindle on 14528 h / Programme on 19151 h / Machine on 170775 h
