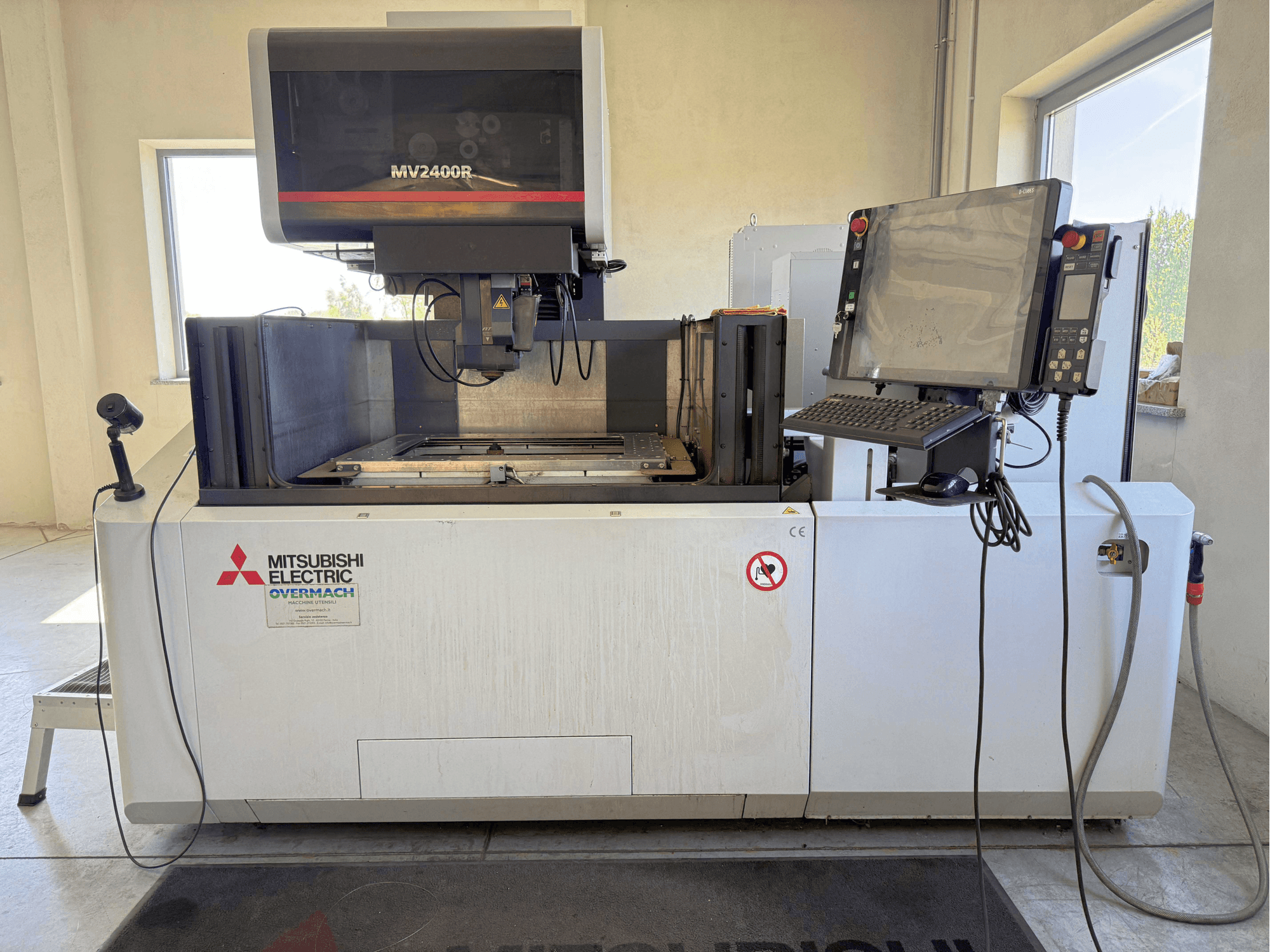

Mitsubishi MV2400R wire EDM machine in front view, featuring a control panel, workspace, and safety signage.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mitsubishi MV2400R

Photo Gallery

Mitsubishi - MV2400RPL-EDM-MIT-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mitsubishi MV2400R Wire EDM For Sale | gindumac.com

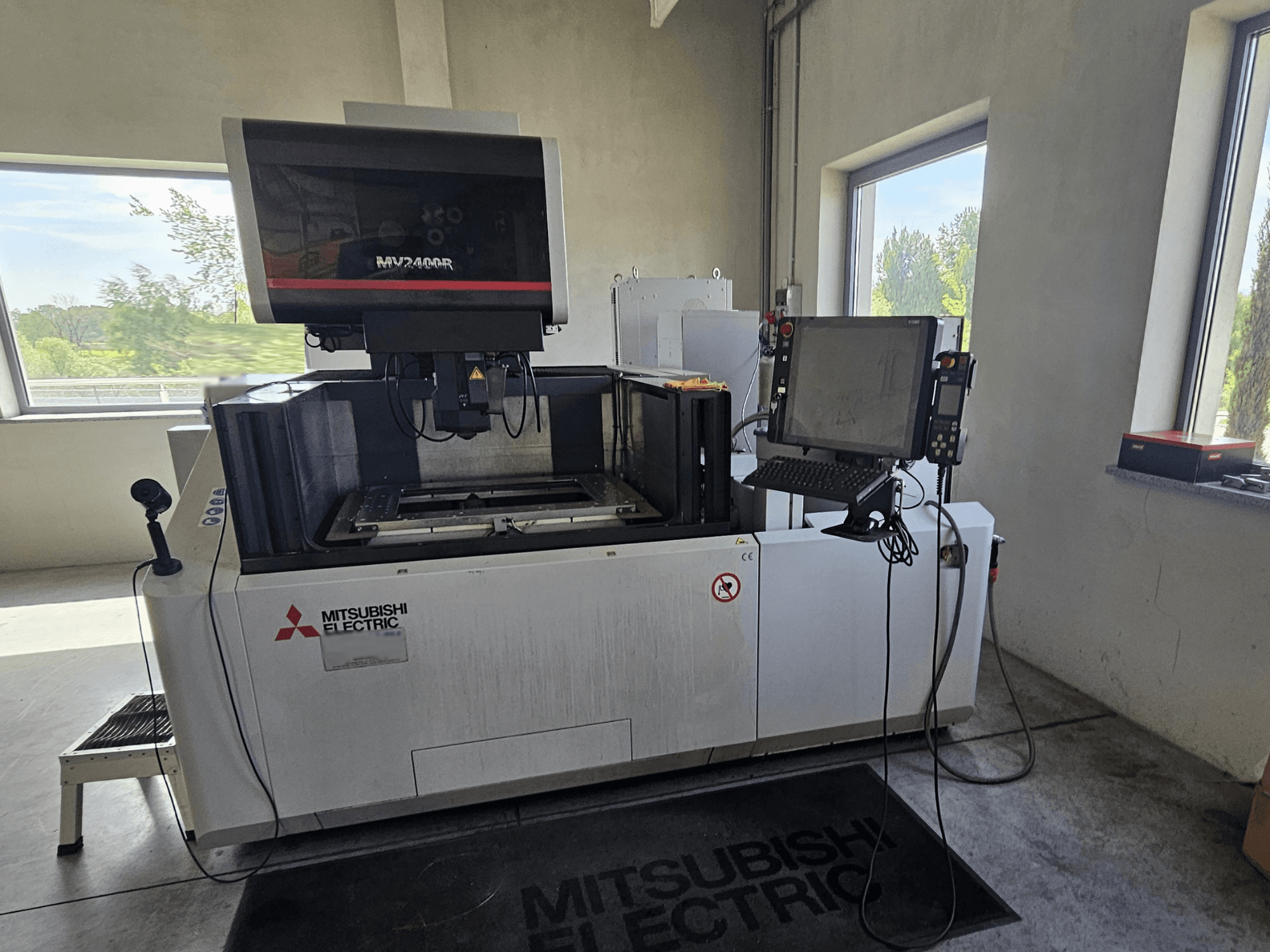

This 5-axis Mitsubishi MV2400R wire-cut EDM machine was manufactured in 2017. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 310 mm, accommodating workpieces up to 1050 × 820 × 305 mm and weighing up to 1500 kg. If you are looking to get high-quality wire-cutting capabilities, consider the Mitsubishi MV2400R machine we have for sale. Contact us for further details.

Overview

brand: Mitsubishi
year: 2017
MODEL: MV2400R
production hours: 4000
application type: EDM
Location: Poland
machine type: Wire EDM Machine
control unit brand: MITSUBISHI

Technical Information - Mitsubishi MV2400R

Control Unit

Control Brand: MITSUBISHI
Control Model: D‑CUBES / M800 series

Dimensions

Machine Height: 2150 mm
Machine Length: 3030 mm
Machine Weight: 3500 kg
Machine Width: 1050 mm

Movement

Number of Axes: 5
X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 310 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.1 mm

Additional Information

Axis travels: U ±75 mm, V ±75 mm
Max. workpiece dimensions (W × D × H): 1050 × 820 × 305 mm
Max. workpiece weight: 1500 kg
Table dimensions (W × D): 840 × 640 mm
Max. taper angle: 15° at 260 mm workpiece height
Wide‑angle taper (option): up to 45° at 60 mm (with special guides)
Positioning accuracy: ≤ ±2 μm over full stroke (MV‑R series spec)
Dielectric tank capacity: 860 L
CNC control: Mitsubishi D‑CUBES / M800 series; Industry 4.0 ready (networking and monitoring interface)
Machine condition: Excellent condition; very low hours
Industry 4.0: Prepared for connectivity

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
