Mitsubishi - SG8SIL-EDM-MIT-2023-00001

Name: Mitsubishi SG8S
Brand: Mitsubishi
SKU: IL-EDM-MIT-2023-00001
Price: 55000 EUR
Availability: InStock

55,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mitsubishi SG8S For Sale | gindumac.com

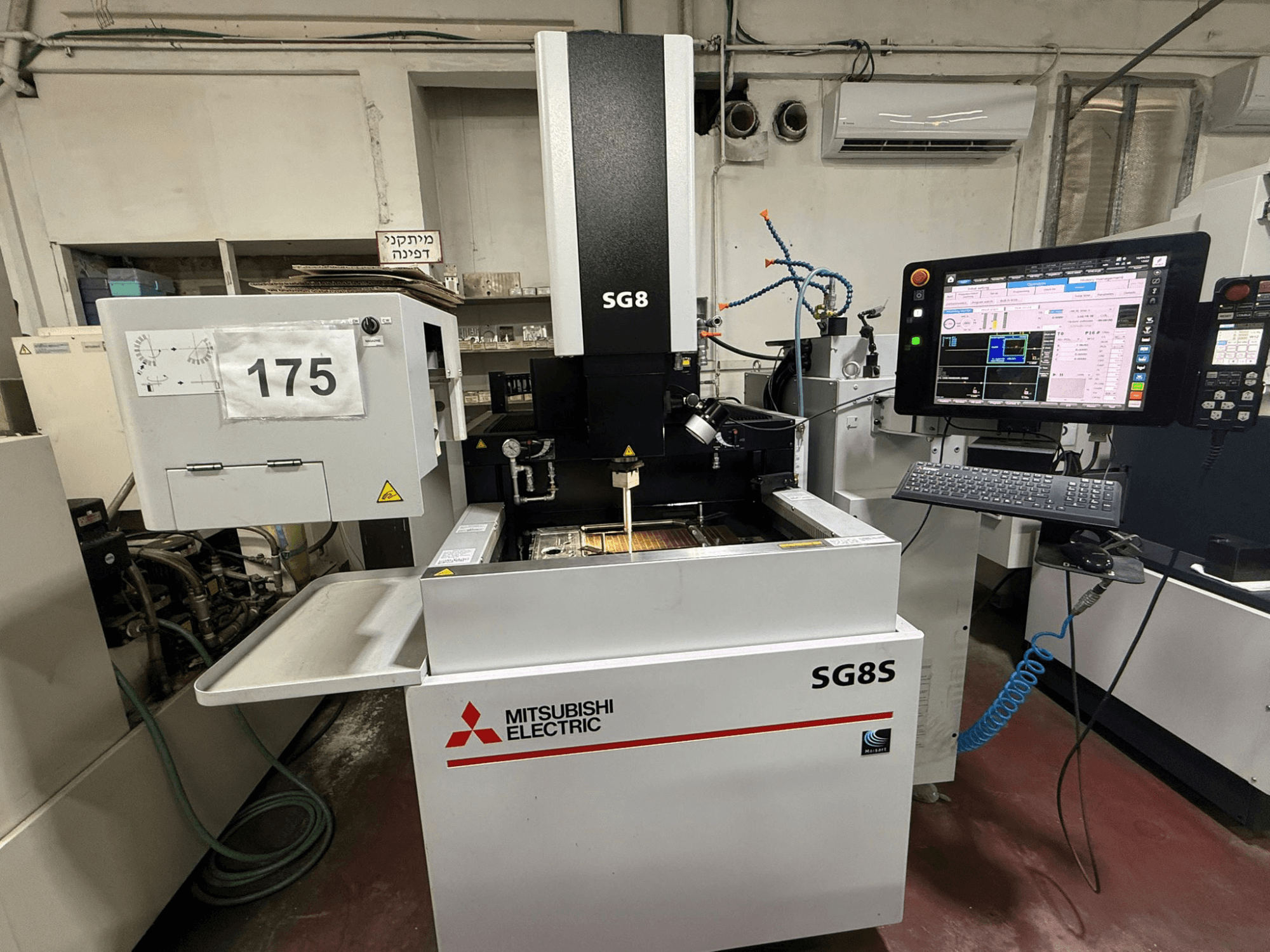

This 4-axis Mitsubishi SG8S was manufactured in 2023. It features a travel range of 300 mm in the X-axis, 250 mm in the Y-axis, and 250 mm in the Z-axis. The machine includes a worktable size of 500 x 350 mm and can accommodate a maximum workpiece weight of 550 kg. If you are looking to get high-quality die-sinking capabilities, consider the Mitsubishi SG8S machine we have for sale. Contact us for further details.

Overview

brand: Mitsubishi
year: 2023
MODEL: SG8S
application type: EDM
Location: Israel
machine type: Die-Sinking EDM Machine

Technical Information - Mitsubishi SG8S

Dimensions

Machine Height: 2140 mm
Machine Length: 2070 mm
Machine Width: 1530 mm

Movement

Number of Axes: 4
X-axis Travel: 300 mm
Y-axis Travel: 250 mm
Z-axis Travel: 250 mm

Additional Information

Worktable size: 500 x 350 mm
Distance table/quill: 150 / 400 mm
Max. electrode weight: 25 / 150 kg
Max. workpiece weight: 550 kg
Filling height of work tank: 250 mm
Generator current: 60 A
Power connection: 400 V
Mains frequency: 50 Hz
Power consumption: 8 kVA

Additional equipment

EROWA 20-position tool changer (ATC)
C-axis with EROWA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
