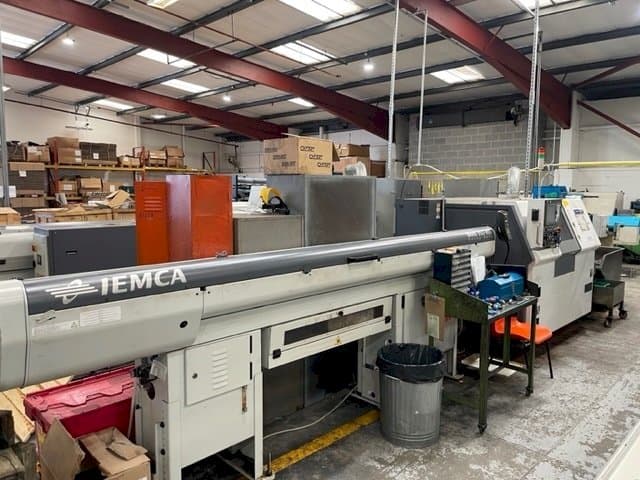

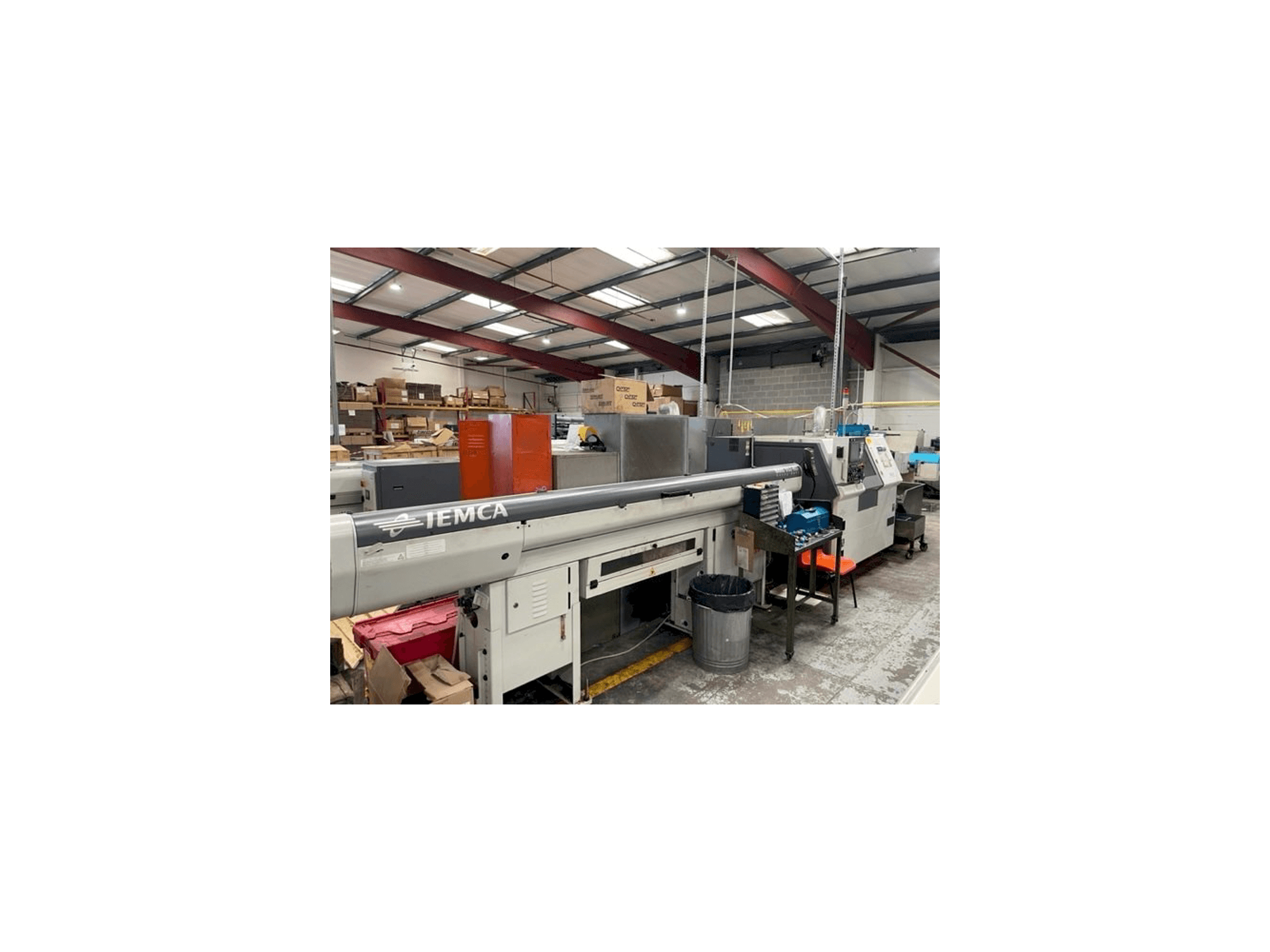

Miyano BNA-42MSY2 Lathe

This Miyano BNA-42MSY2 Lathe was manufactured in the year 2017. It is equipped with a Mitsubishi M730VS control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: Miyano
year: 2017
MODEL: BNA-42MSY2
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: MITSUBISHI

Technical Information - Miyano BNA-42MSY2

General Data

Measurements width: 2388 mm
Measurements depth: 1450 mm
Measurements height: 1600 mm
Machine weight: 3000 kg

Control Unit

Model: M730VS
Brand: MITSUBISHI

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN

Movement

Y-AXIS Movement: +/- 35 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 8

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Distance between spindles: 360 mm
Maximum cutting length: 235 mm
Maximum cutting diameter: 80 mm
Bar capacity: 42 mm
Sub spindle b axis movement: 360 mm
X1, x2, y, z1, z2: 20 x 12 x 12 x 20 x 20m/minute
Spindle motor power: 7. 5/11kw
Spindle & sub spindle c axis: 0. 001 degree
Sub spindle max speed 5000rpm, power 3. 7/5. 5kw
Collet chucks

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
