Miyano - BNE-64SYFI-TUR-MIY-2001-00001

Name: Miyano BNE-64SY
Brand: Miyano
SKU: FI-TUR-MIY-2001-00001
Price: 20000 EUR
Availability: InStock

20,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Miyano BNE-64SY For Sale | gindumac.com

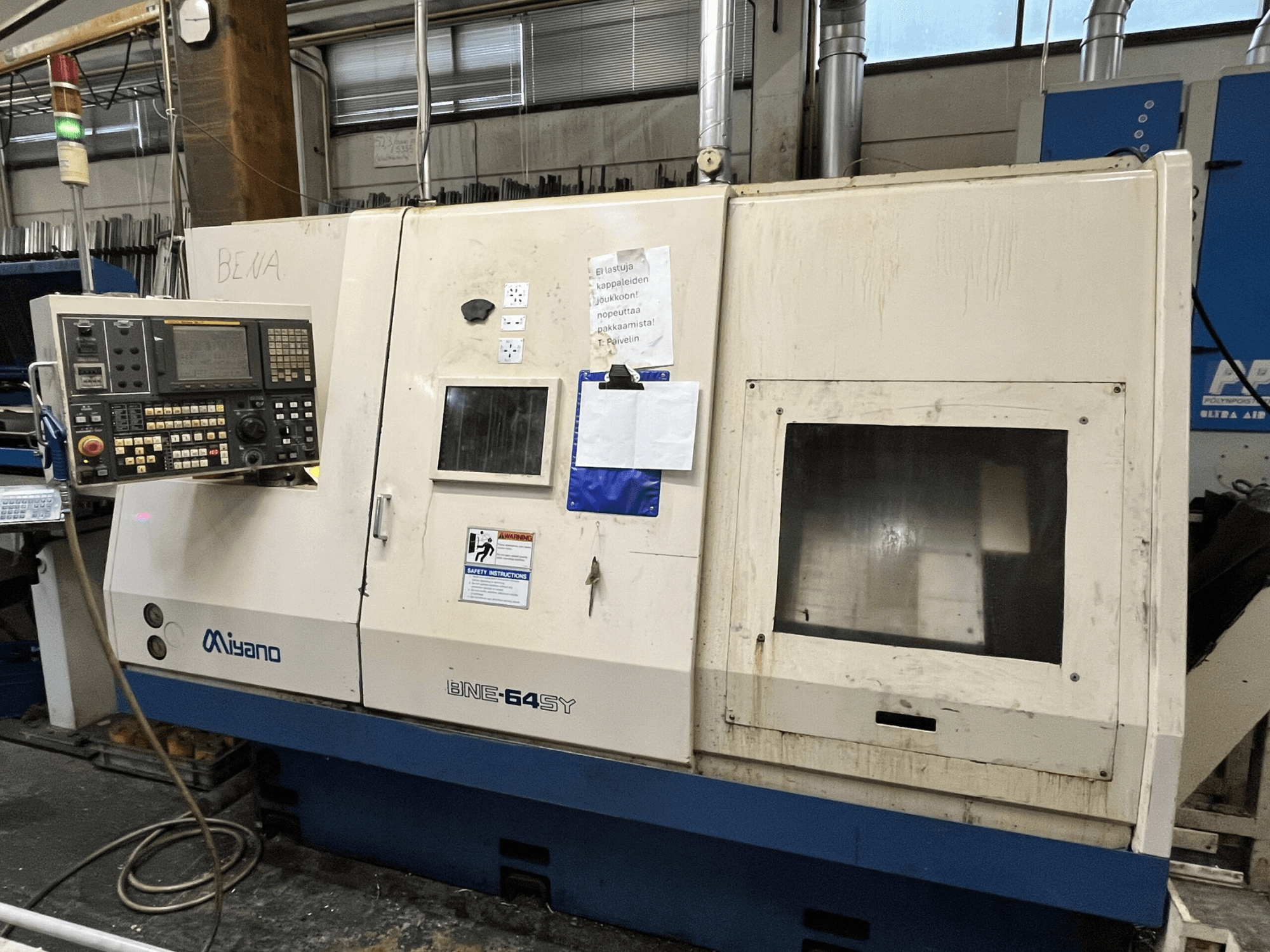

This 3-axis Miyano BNE-64SY horizontal turning machine was manufactured in 2001. It features a main spindle speed up to 4,000 rpm, a sub-spindle with a speed range up to 5,000 rpm, and a spindle bore of 65 mm. Equipped with a chip conveyor, bar feeder, and coolant skimmer, it offers robust functionality for efficient turning operations. If you are looking to get high-quality turning capabilities, consider the Miyano BNE-64SY machine we have for sale. Contact us for more information.

Overview

brand: Miyano
year: 2001
MODEL: BNE-64SY
application type: Turning
Location: Finland
machine type: Horizontal Turning Machine

Technical Information - Miyano BNE-64SY

Dimensions

Machine Height: 2050 mm
Machine Length: 2975 mm
Machine Weight: 7500 kg

Movement

Number of Axes: 3
X-axis Travel: 205 mm
Y-axis Travel: 40 mm
Z-axis Travel: 540 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 18.5 kW
Spindle Speed: 4000 RPM

Additional Information

Spindle (main)
- Bore: 65 mm
- Power: 18.5 kW
Sub-spindle
- Speed range: 67–5,000 rpm
- External cooling: Yes
Rotating tools (driven tools)
- Max speed: 4,000 rpm
- Power: 2.8 kW
- Tool holders: Yes
Capacity
- Swing over carriage: 340 mm
- Max turning length: 514 mm
Machine dimensions
- Depth: 2,400 mm
Operating hours: 83,000 h
Country of origin: Japan

Additional equipment

Chip conveyor: Yes
Bar feeder: FMB
Coolant skimmer: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
