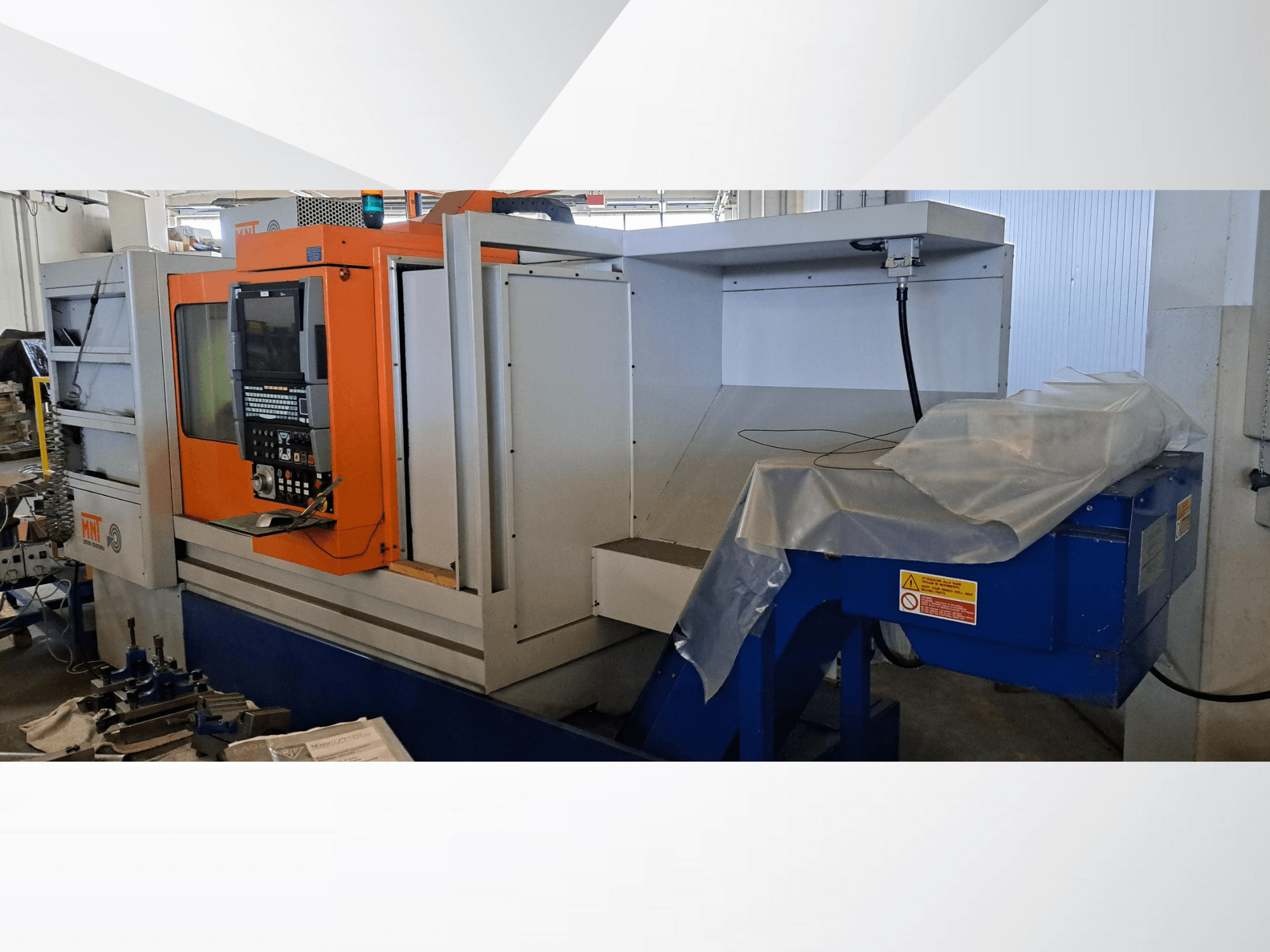

MNT CNC machine, front view, featuring orange control panel, large machining area, and blue chip disposal unit.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MNT 430

Photo Gallery

MNT - 430 IT-TUR-MNT-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MNT 430 Horizontal Lathe For Sale | gindumac.com

This MNT 430 horizontal turning machine was manufactured in 2005. It features a maximum turning diameter and swing of 460 mm, with a turning length up to 1000 mm. Equipped with a Siemens SINUMERIK CNC control, it supports various systems for precise operations. The spindle speed can reach up to 3000 rpm, powered by a 22 kW motor. Contact us for more information about this machine.

Overview

brand: MNT
year: 2005
MODEL: 430
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - MNT 430

Dimensions

Machine Depth: 2040 mm
Machine Height: 1830 mm
Machine Length: 5570 mm
Machine Weight: 7200 kg

Movement

X-axis Travel: 300 mm
Z-axis Travel: 1000 mm

Additional Information

Spindle Speed: 0–3000 rpm
Spindle Motor Power: 22 kW
Rapid Traverse X-axis: 15 m/min
Rapid Traverse Z-axis: 15 m/min
Maximum Turning Diameter: 460 mm
Maximum Swing Diameter: 460 mm
Maximum Turning Length: 1000 mm
Maximum Distance Between Chucks/Attachments: 1300 mm
Standard Chuck Diameter: 315 / 350 mm
Spindle Bore Diameter: 82–102 mm
Front Spindle Bearing Inner Diameter: 120–140 mm
Spindle Nose Type: ISO A8
CNC Control: Siemens SINUMERIK
Compatible Systems: 805 / 810 / 840
Siemens Drives with Variable Speed Control
Note: The provided information has been summarized and organized according to the relevant machine specifications and capabilities.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
