➤ Used Monforts RNC 3 For Sale | gindumac.com

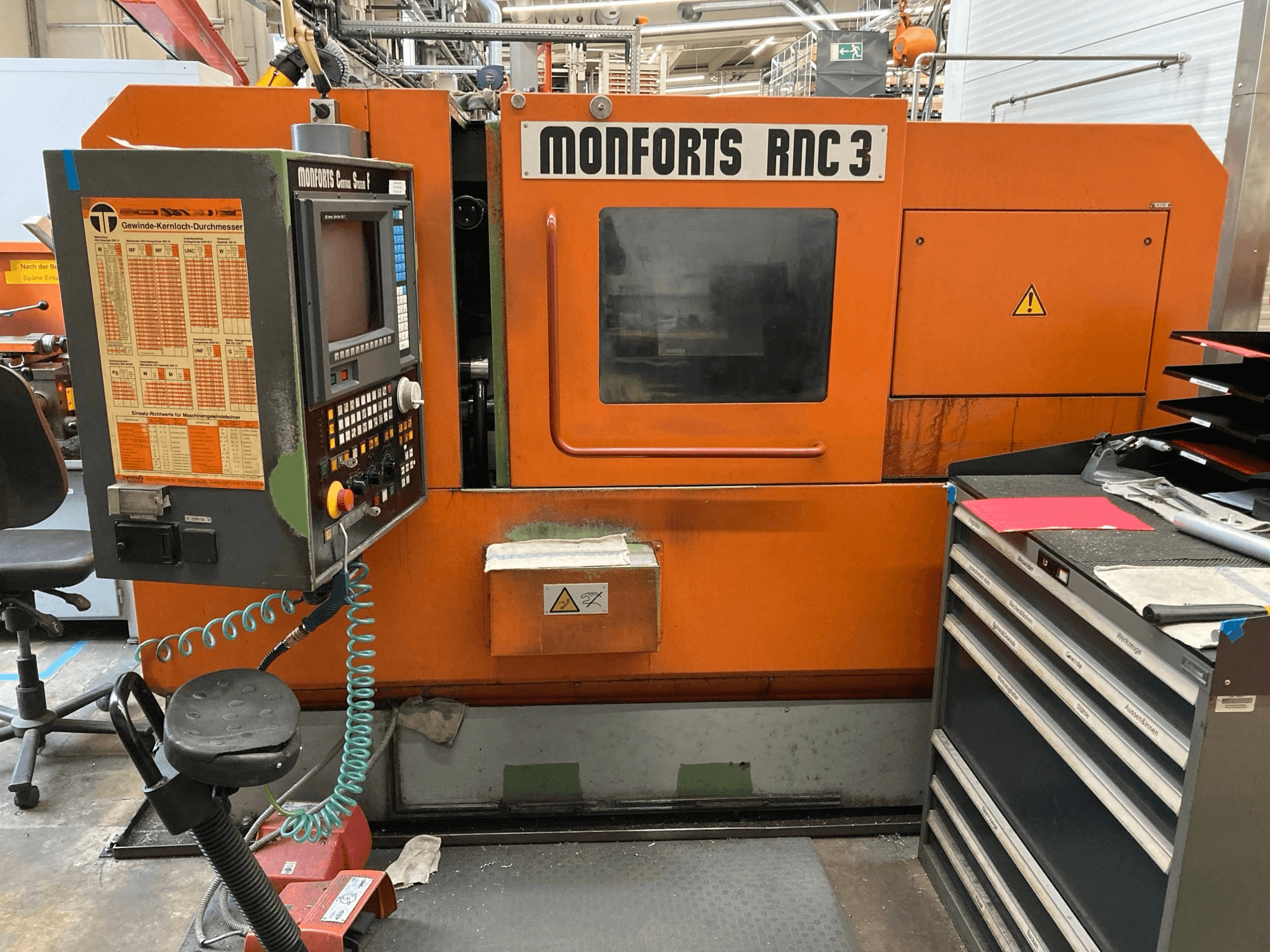

This Monforts RNC 3 horizontal turning machine was manufactured in 1991. It features a three-jaw power chuck, hydraulic hollow clamping device, manual tailstock, and a Fanuc control system. Additional highlights include a chip conveyor with a discharge height of 1200 mm and a manual swing-in measuring probe for tool measurement. If you are looking to get high-quality turning capabilities, consider the Monforts RNC 3 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Monforts
year: 1991
MODEL: RNC 3
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
Available from: 09/12/2025
control unit brand: FANUC

Technical Information - Monforts RNC 3

Control Unit

Brand: FANUC
Model: 15T

Additional Information

Chuck: Three-jaw power chuck, Forkardt NHF 200-48; spindle mount A3; speed rating 6300 rpm
Hollow clamping device: Hydraulic
Tailstock: Included, manual setting
CNC control: Fanuc
Measuring system: Fanuc
Main drive: Fanuc
Feed drive: Fanuc
Control sets (Steuersätze): Fanuc
Contactors/relays: Siemens
Handwheel: Switchable X/Z, integrated in the control panel
Programming system: Integrated “Symbolic FAPT” for control variant NCS F (15T-F)

Additional equipment (robots, automation, chip conveyor, bar feeder,..)

Chip conveyor: Hinge belt type, discharge height 1200 mm
Measuring probe: Manual swing-in tool setter in the work area
Bar machining accessories: Complete gripper collet with jaws
Bush carrier draw tube: With spacer tubes and centering bushing
Guide bushes: 7 sets (10, 12, 15, 20, 25, 30, 40 mm)
Workpiece removal device: Collection tray
Part counter: J 676, displays power-on time, cycle time, and cutting time
Soft top jaws: WBL 11/5 for Forkardt NHF power chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
