➤ Used MORI SEIKI NL2000Y/500 For Sale | gindumac.com

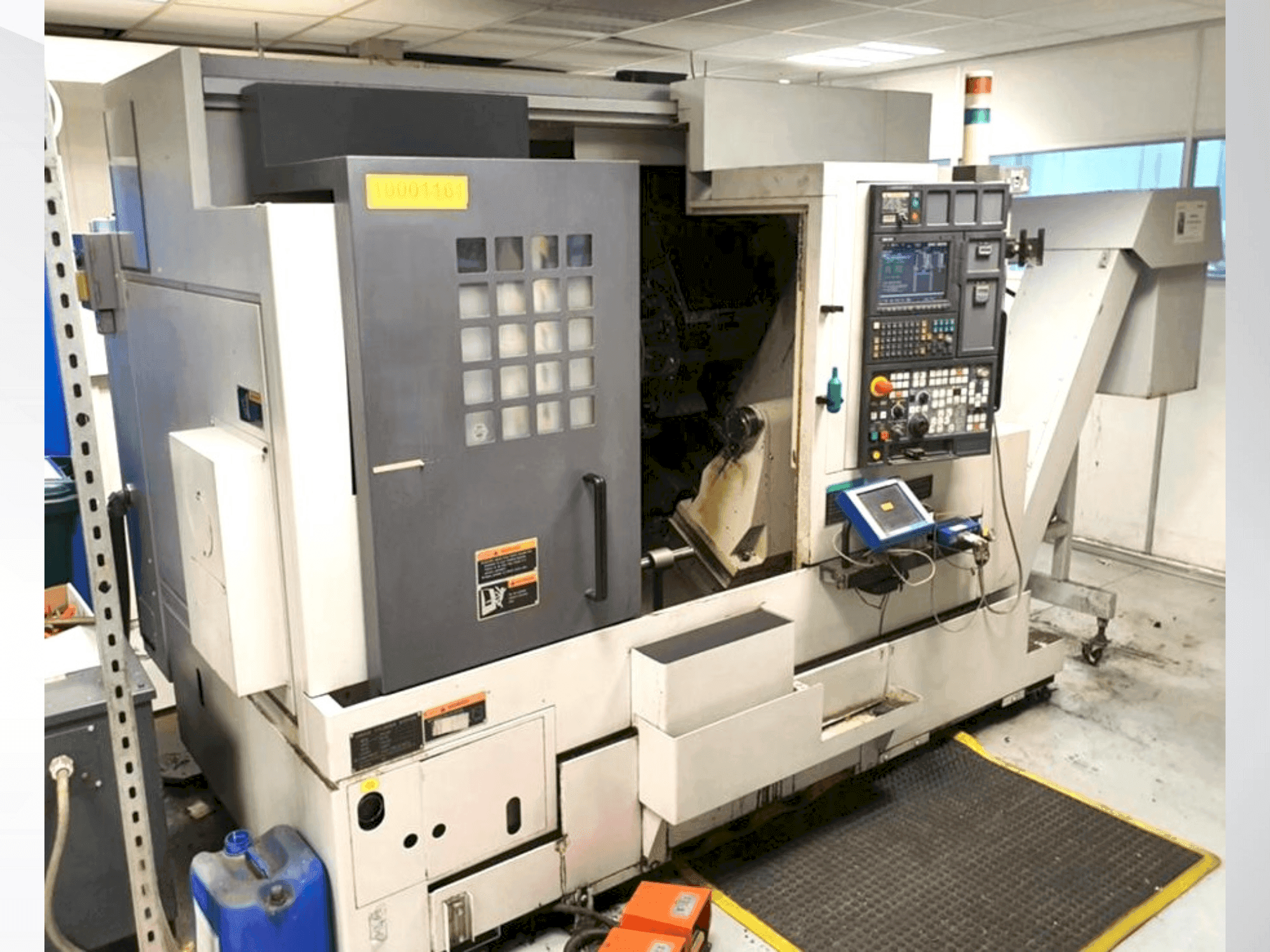

This 4-axis MORI SEIKI NL2000Y/500 horizontal turning machine was manufactured in 2009. It features a CNC Control MSX 850II, with X-axis travel of 260mm, Z-axis travel of 590mm, and a maximum turning diameter of 356mm. The spindle speed reaches up to 6,000 rpm, supported by a spindle power of 11 kW. Includes a chip conveyor, 3-color status lamp, and fixed tool holders. If you are looking to get high-quality turning capabilities consider the MORI SEIKI NL2000Y/500 machine we have for sale. Contact us for more information.

Overview

brand: MORI SEIKI
year: 2009
MODEL: NL2000Y/500
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - MORI SEIKI NL2000Y/500

General Data

Measurements width: 1922 mm
Measurements depth: 2695 mm
Measurements height: 2120 mm
Machine weight: 5700 kg

Main drive

Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 11 / 7.5 kw
Number of axis: 4

Movement

X-AXIS Movement: 260 MM
Y-AXIS Movement: 100 (+/-50) MM
Z-AXIS Movement: 590 MM
C-AXIS Movement: 0.001 MM

Media

Chip conveyor: Yes

Additional Equipment

- Upper Turret Positions: 16
- Rotating Tool Stations (Per Turret): 16 / Rotating Tool Speed (rpm): 6000 / Rotary Tool Power (kW): 5.5 / Main Spindle Nose: A2-8
- Upper Turret Positions: 16 / Rotating Tool Stations (Per Turret): 16 / Rotating Tool Speed (rpm): 6000 / Rotary Tool Power (kW): 5.5
- 3-Color Status Lamp
- Fixed Tool Holders
- Parts Extractor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter (mm): 356
- - Max. Turning length (mm): 510
- - Swing over bed (mm): 923. 8
- - Swing over cross slide (mm): 755
- - Bar work capacity (mm): 65 (main)
- - Rapid traverse (mm/min, x, z, y): 30000 / 10000
- - Main spindle nose: a2-8

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
