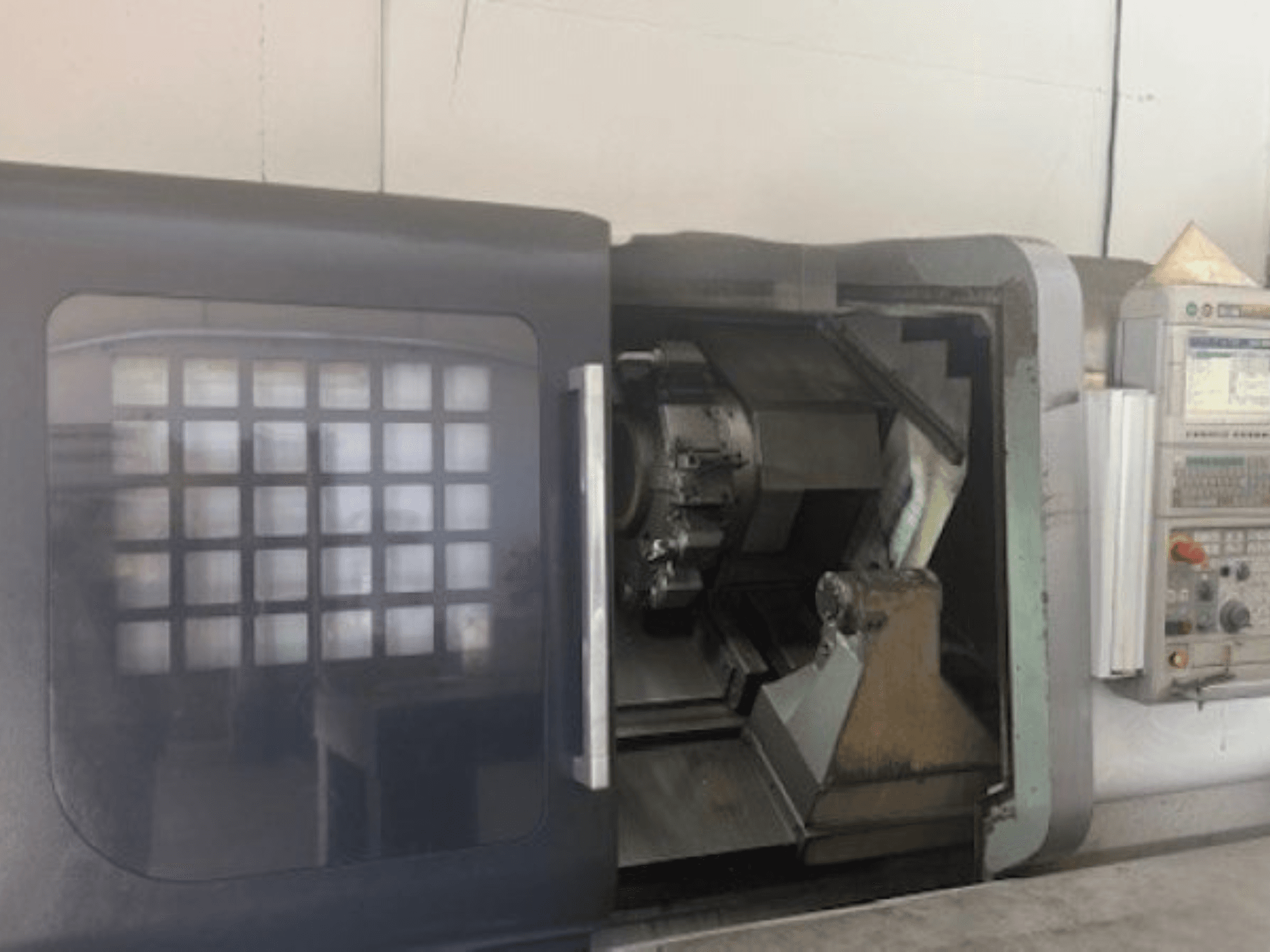

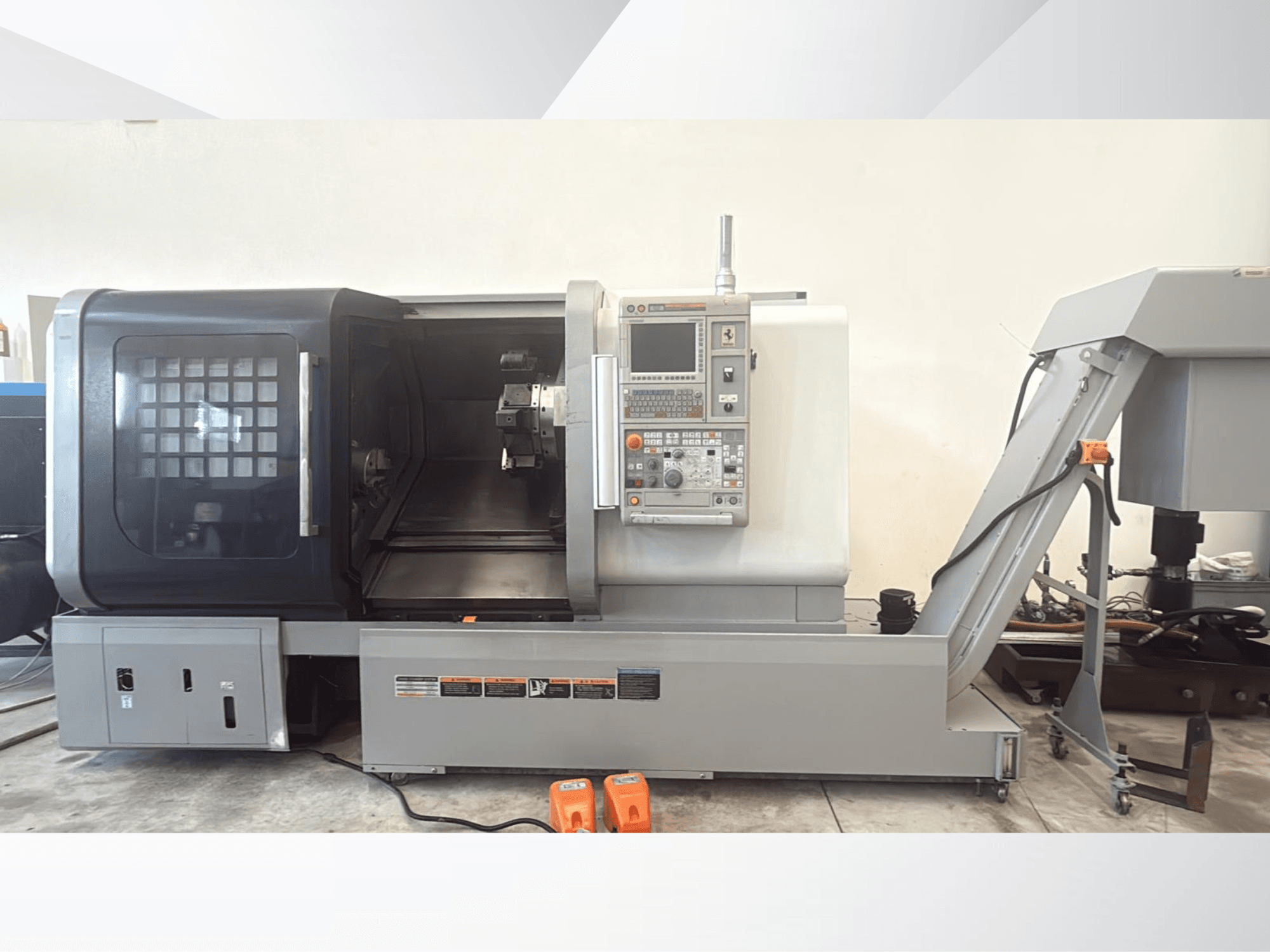

This 3-axis MORI SEIKI NLX 2500M was manufactured in 2011. It features a maximum turning diameter of 366 mm and a maximum turning length of 705 mm. The machine is equipped with a powerful spindle motor of 18.5 kW and a turret with 12 positions for enhanced productivity. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NLX 2500M horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 2011
- MODEL: NLX 2500M
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - MORI SEIKI NLX 2500M
Dimensions
- Machine Weight: 5500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 260 mm
- Z-axis Travel: 795 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 18.5 kW
- Spindle Speed: 4000 RPM
Additional Information
Control unit: MSX-853IV
Maximum swing over bed: 787 mm
Maximum turning diameter: 366 mm
Maximum turning length: 705 mm
Maximum bar capacity: 80 mm
Spindle nose: ASA 8"
Tailstock: MT5, 80 mm quill diameter, 734 mm travel
Turret stations: 12
Motorized/live tool positions: 12
Turret interface: BMT
Turning tool size: 25 × 25 mm
Boring bar capacity: 50 mm
Maximum live tool speed: 6,000 rpm
Live tool motor power: 5.5 / 7.5 kW
Operating time: 212 h 39 min
Cutting time: 140 h 19 min
Power-on time: 15,408 h 57 min
Additional equipment
Chip conveyor
Various/assorted tool holders
