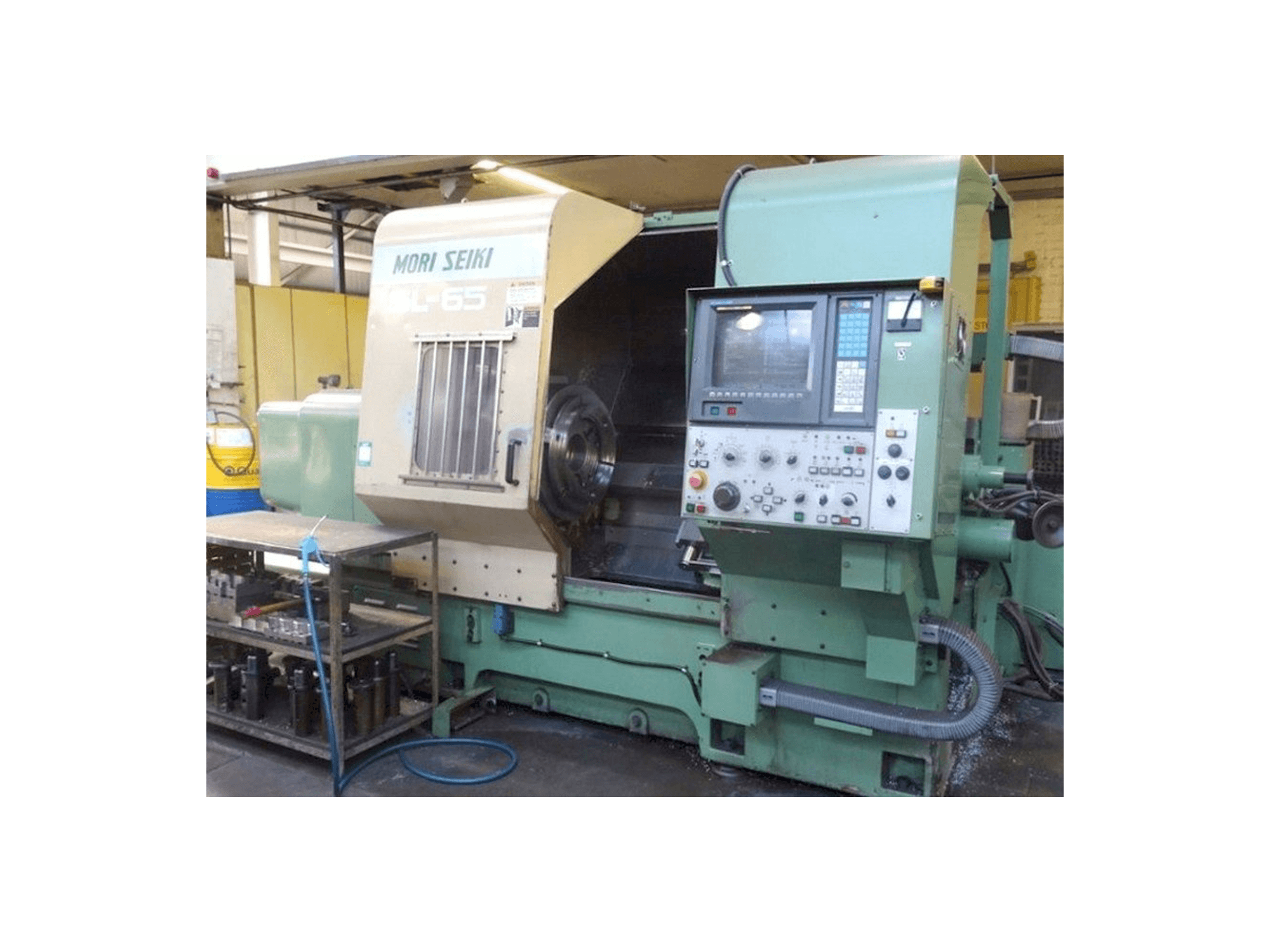

Front view of MORI SEIKI Sl65  machine

MORI SEIKI Sl65

MORI SEIKI - Sl65

1991

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

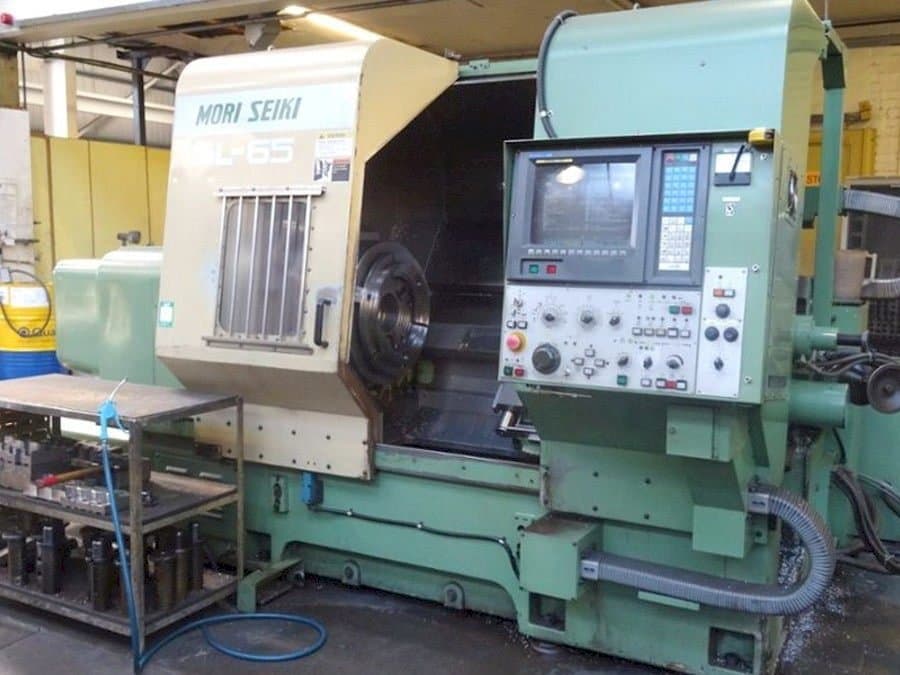

This Mori seiki Sl65 Lathe was manufactured in the year 1991 in Japan. It is equipped with Moric T5F control unit. The machine has a spindle speed of 10-1010 rpm.

Overview

  • brand: MORI SEIKI
  • year: 1991
  • MODEL: Sl65
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Moric
  • GINDUMAC ID: DE-TUR-MOR-1991-00001

Technical Information

General Data

  • Measurements width: 6000 mm
  • Measurements depth: 3000 mm
  • Measurements height: 2600 mm
  • Machine weight: 9200 kg

Control Unit

  • Brand: Moric
  • Model: T5F

Main drive

  • Number of spindles: 2
  • Spindle speed range: 4 - 1010 1/MIN
  • Spindle motor power: 37 / 30kW
  • Spindle bore: 168 mm
  • Tool taper: JIS A2-11

Movement

  • X-AXIS Movement: 350 (25 + 325) mm
  • Y-AXIS Movement: 860 mm

Tools

  • Slots in storage: 12

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Turning diameter: 650 mm
      • - Turning length: 790 mm
      • - Steering: moric t5f
      • - Turning diameter over bed: 890mm
      • - Turning diameter over cross guide: 560 mm
      • - Peak width: 900 mm
      • - Max. Torque: 3870 nm
      • - Spindle bearing diameter: 240 mm
      • - Max rod diameter: 144 mm
      • - Usable rod diameter: 120 mm
    • Qualitative Machine Benefits:
      • - Chuck diameter: 610 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
