MTcut - V220PDE-MIL-MTC-2016-00001
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- MTcut V220P

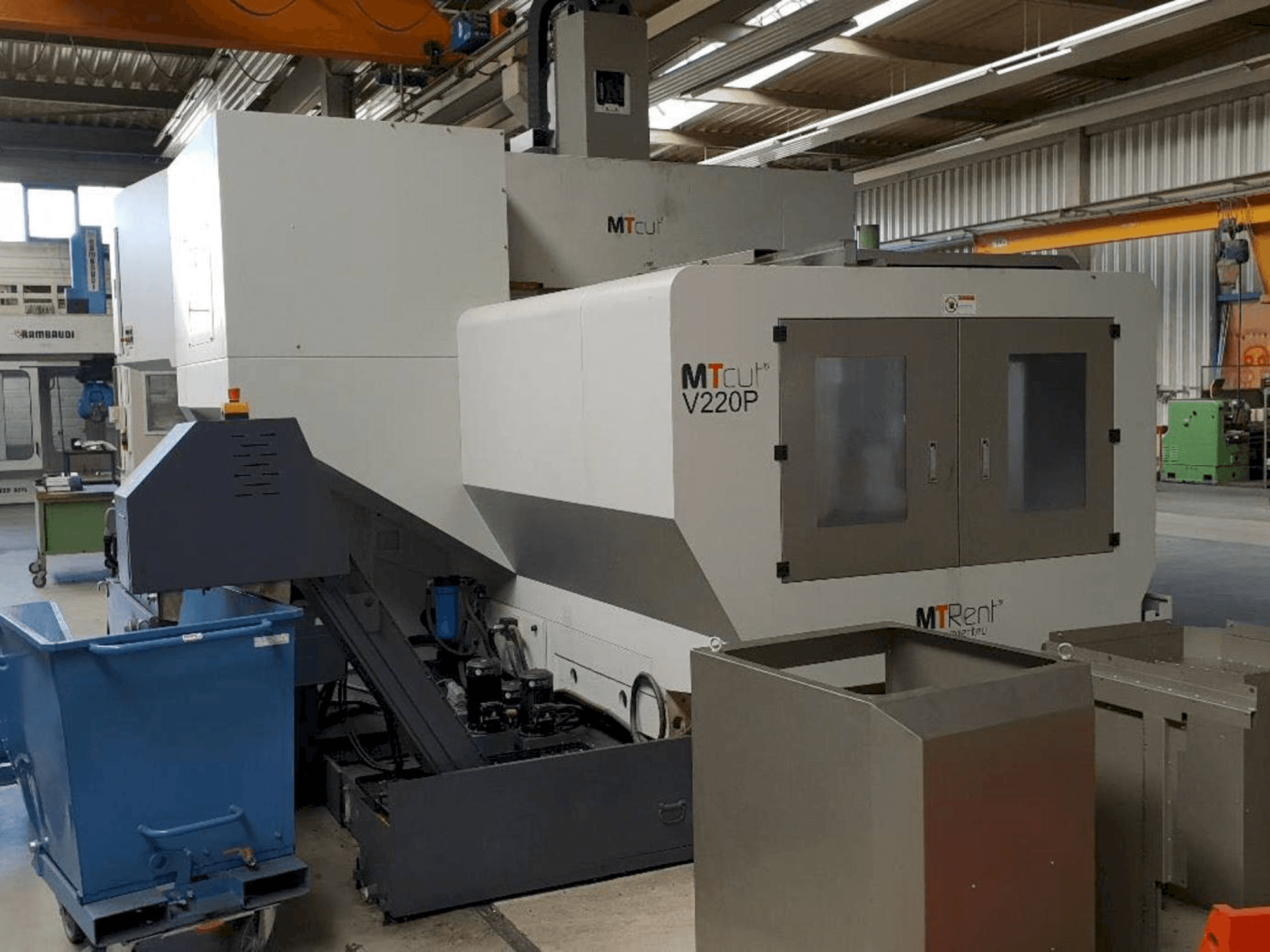

This MTcut V220P milling machine was manufactured in the year 2016. It has been on for 20112 hours, of which 4860 are spindle hours. It is operated with a Heidenhain iTnc 530 SmarT.NC HSCI control unit. This 3 axis machine has a spindle speed up to 18000 rpm and a max tool length 250 mm. It is fully functional. It includes a Heidenhain workpiece and tool measurement.
Overview
- brand: MTcut
- year: 2016
- MODEL: V220P
- production hours: 4860
- application type: Milling
- Location: Germany
- machine type: Milling Machine
- availability: Sold
- control unit brand: Heidenhain
Technical Information - MTcut V220P
General Data
- Machine weight: 20000 kg
Control Unit
- Brand: Heidenhain
- Model: iTnc 530 SmarT.NC HSCI
Main drive
- Spindle speed range: 18000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 2200 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 1750 mm
- Y-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 750 mm
- Z-AXIS Rapid traverse: 30 m/min
Table
- Outer length: 2100 MM
- Outer width: 1600 MM
- TSlots size: 18mmH8
- Number of tslots: 9
- Table load: 6000 kg
Tools
- Number of stations: 40
- Max weight: 7 kg
- Max tool length: 250 mm
- Type of tool holder: HSK-63A
Media
- Main electronic connection: 400 v 50/60 hz
- Power consumption: 40 kva
Additional Equipment
- - Heidenhein Workpiece and tool measurement
Additional Information
- Technical Machine Benefits:
- - T-slot spacing 180 mm
- - Change time 3sek
- - Max tool 80 mm
- - Max tool with free magazine space 130 mm
- Qualitative Machine Benefits:
- - The machine is fully functional
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
