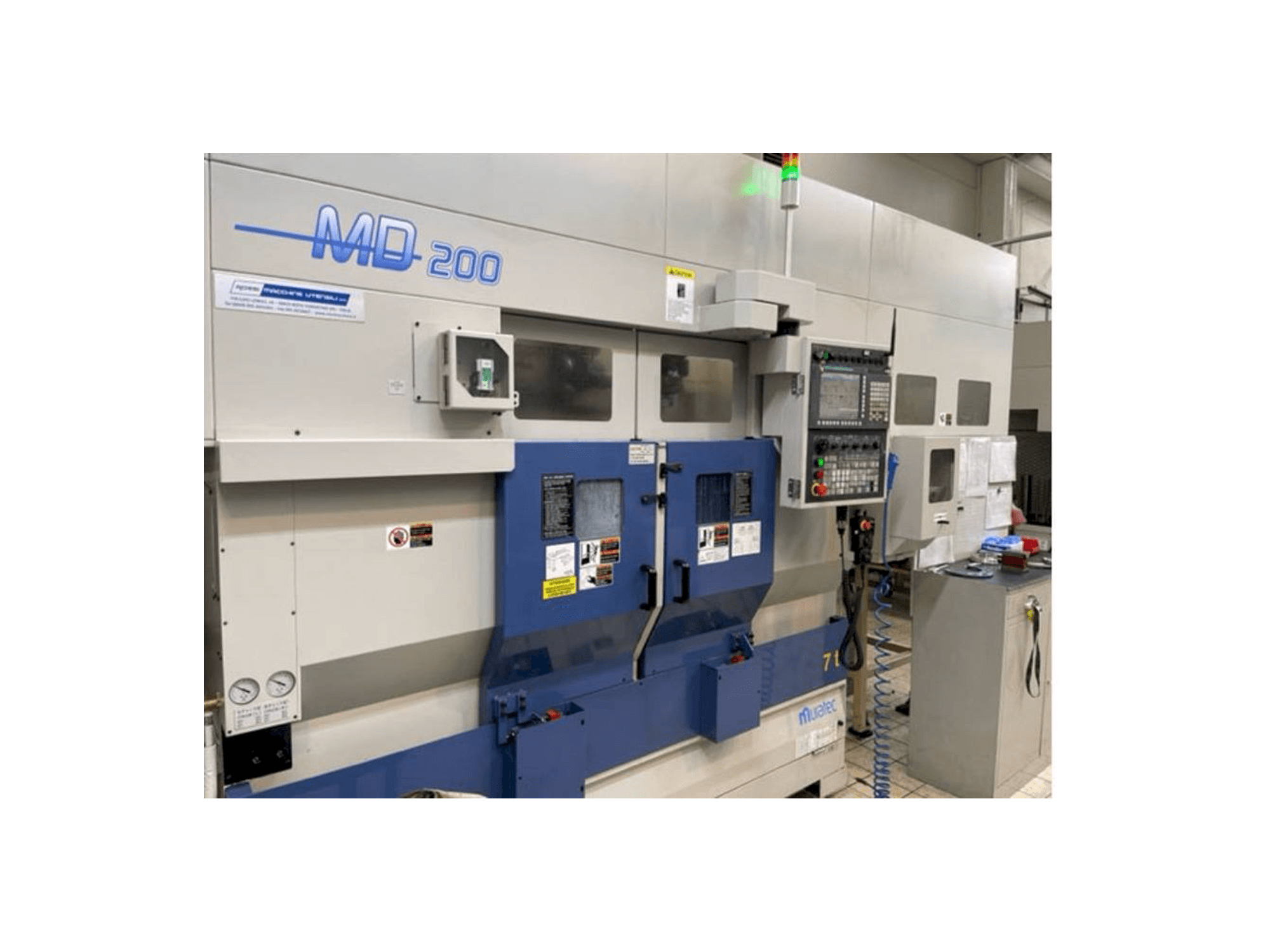

Muratec MD 200

Machine Benefits

• Technical Machine Benefits:
  • - Spindle nose asa 6
  • - Turnable diameter 200 mm
  • - Self-centering diameter 254 mm
  • - Distance between spindles 440 mm
  • - Bar passage 65 mm
  • - Turnable length 100 mm
  • - Number of secondary spindle revolutions 2000
  • - Number of tool places in the first turret 12
  • - Motorized number of first turret 12
  • - X axis travel first turret 190 mm z axis travel first turret 170 mm
• Qualitative Machine Benefits:
  • - Number of second turret tool places 12 second turret motorized number 12
  • - X axis travel second turret 190 mm, z axis travel second turret 170 mm
  • - Rapid feeds linear axes x y z 18 m / min
  • - Gantry loader yes
  • - Maximum capacity of the gantry 8 x 2 kg
  • - Maximum diameter of the piece that can be transported 200 mm
  • - Maximum transportable piece length 100 mm
  • - Stoker or blanks warehouse yes
  • - Pallet number 14
  • - Chip conveyor belt
