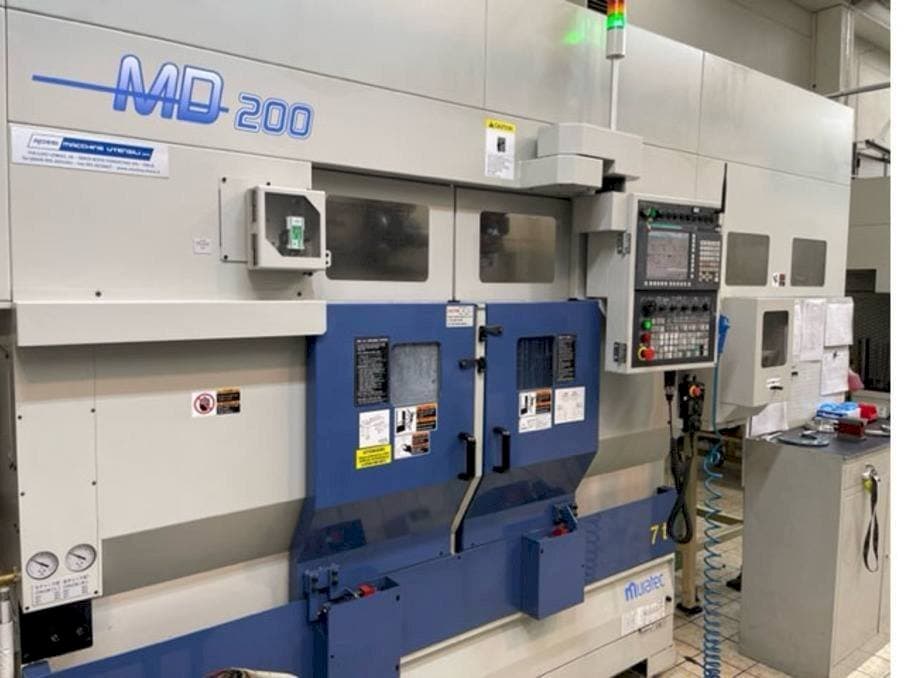

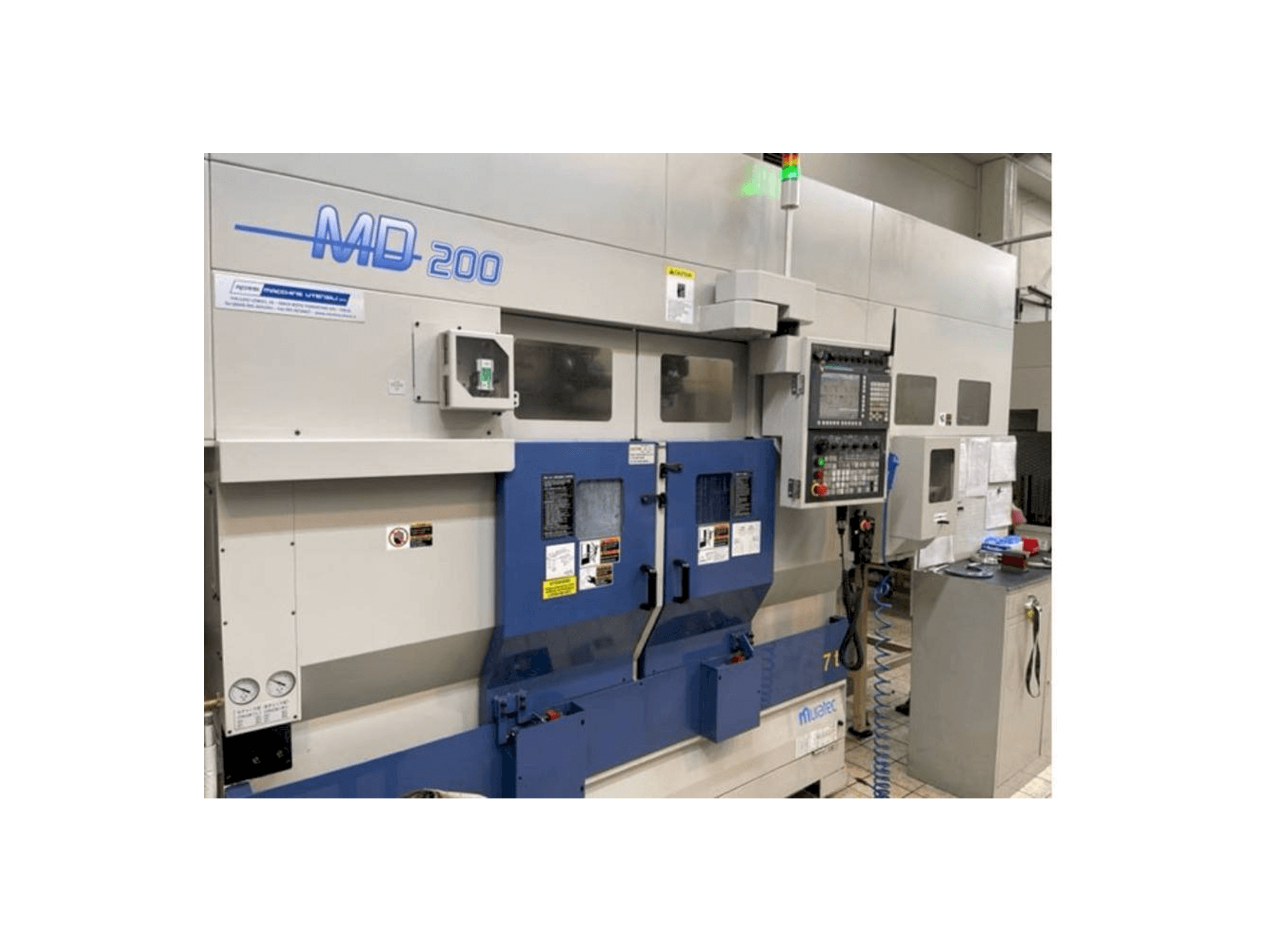

Muratec MD 200

Machine Benefits

• Technical Machine Benefits:
  • - Spindle nose asa 6
  • - Spindle power 11 kw
  • - Turnable diameter 200 mm
  • - Self-centering diameter: 254 mm
  • - Distance between spindles : 440 mm
  • - Bar passage :65 mm
  • - Turnable length: 100 mm
  • - Number of secondary spindle revolutions :2000
  • - Number of tool places in the first turret 12
  • - Motorized number of first turret 12
• Qualitative Machine Benefits:
  • - Number of second turret tool places 12
  • - Second turret motorized number 12
  • - Rapid feeds linear axes x y z 18 m / min
  • - Gantry loader
  • - Maximum capacity of the gantry 8 x 2 kg
  • - Maximum diameter of the piece that can be transported :200 mm
  • - Maximum transportable piece length: 100 mm
  • - Stoker or blanks warehouse yes
  • - Pallet number 14
  • - Chip conveyor belt
