NAKAMURA - WT 150 IIIT-TUR-NAK-2013-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- NAKAMURA WT 150 II Lathe

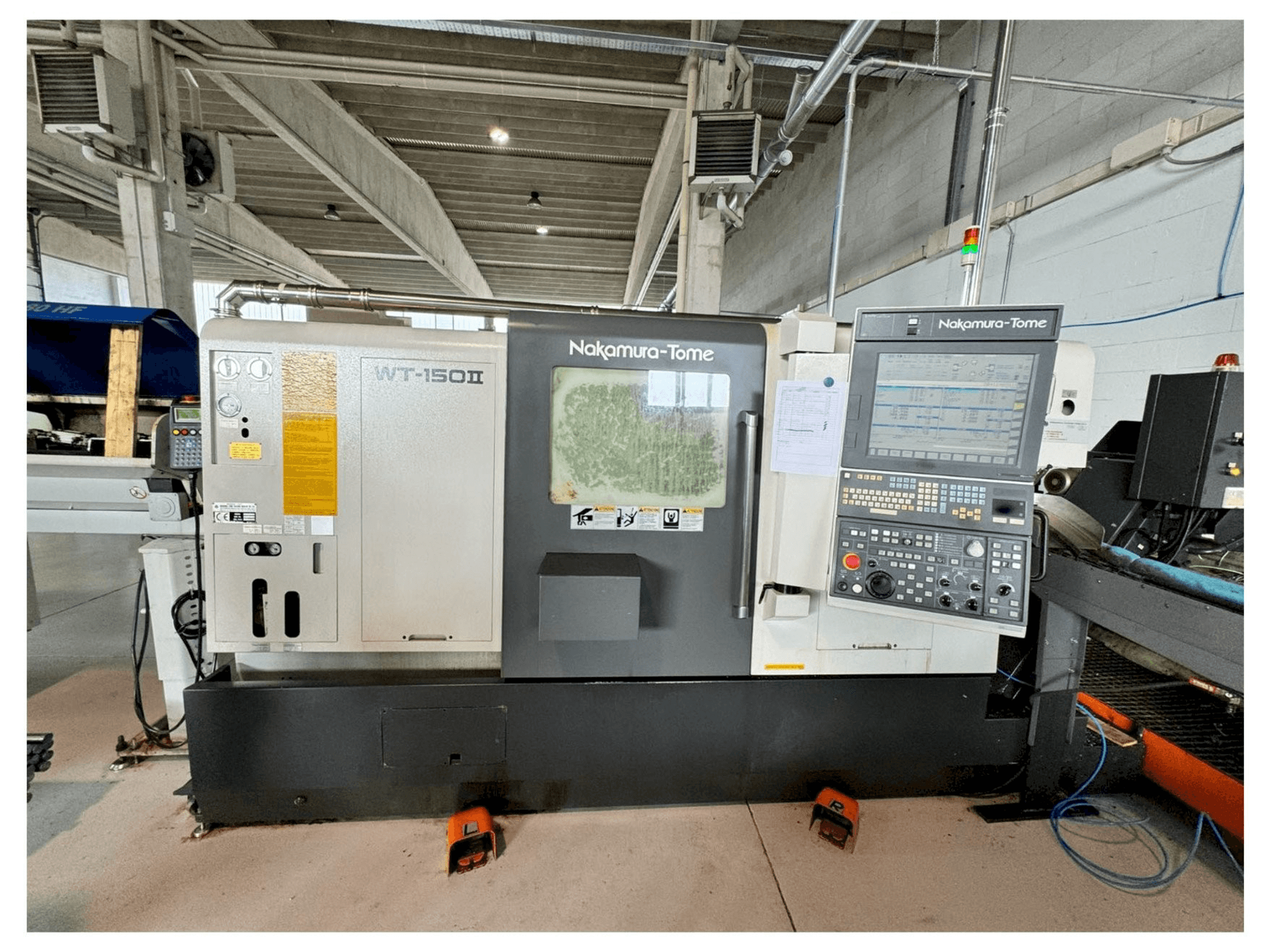

This NAKAMURA WT 150 II Lathe was made in 2013 and ahs 6023 production hours. It is equipped with a Fanuc Series 31 iB control unit and has 5 axis. The machine has a spindle speed of 59-5000 rpm.
Overview
- brand: NAKAMURA
- year: 2013
- MODEL: WT 150 II
- production hours: 6023
- application type: Turning
- Location: Italy
- machine type: Lathe
- availability: Immediately
- control unit brand: FANUC
Technical Information - NAKAMURA WT 150 II
General Data
- Machine weight: 9500 kg
Control Unit
- Brand: FANUC
- Model: Series 31 iB
Main drive
- Spindle speed range: 59 - 5000 1/MIN
- Number of axis: 8
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Bar capacity. 65 mm
- - Spindles distance: 800 mm.
- - Lower turret 12 positions with live tools
- - Turning dia: 190 mm
- - C axis // x1/x2 axis // z1/z2 axis // y and b2 axis
- - Spindle and subspindle
- - Part catcher type g
- Qualitative Machine Benefits:
- - Air and water jet
- - Upper turret 12 positions with live tools
- - Year 5-2013 installed in 2014
- - Full equipment included
- - Collets, driven tools, toolholders
- - 2 x high pressure pumps
- - Excellent conditions
- - Cnc Multi Axis Turning Center NAKAMURA WT 150 II Cnc FANUC 31 iB Y axis Working hours 6023 CE Bar Loader IEMCA MASTER 80 HF Year 2014 CE With full equipment
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
