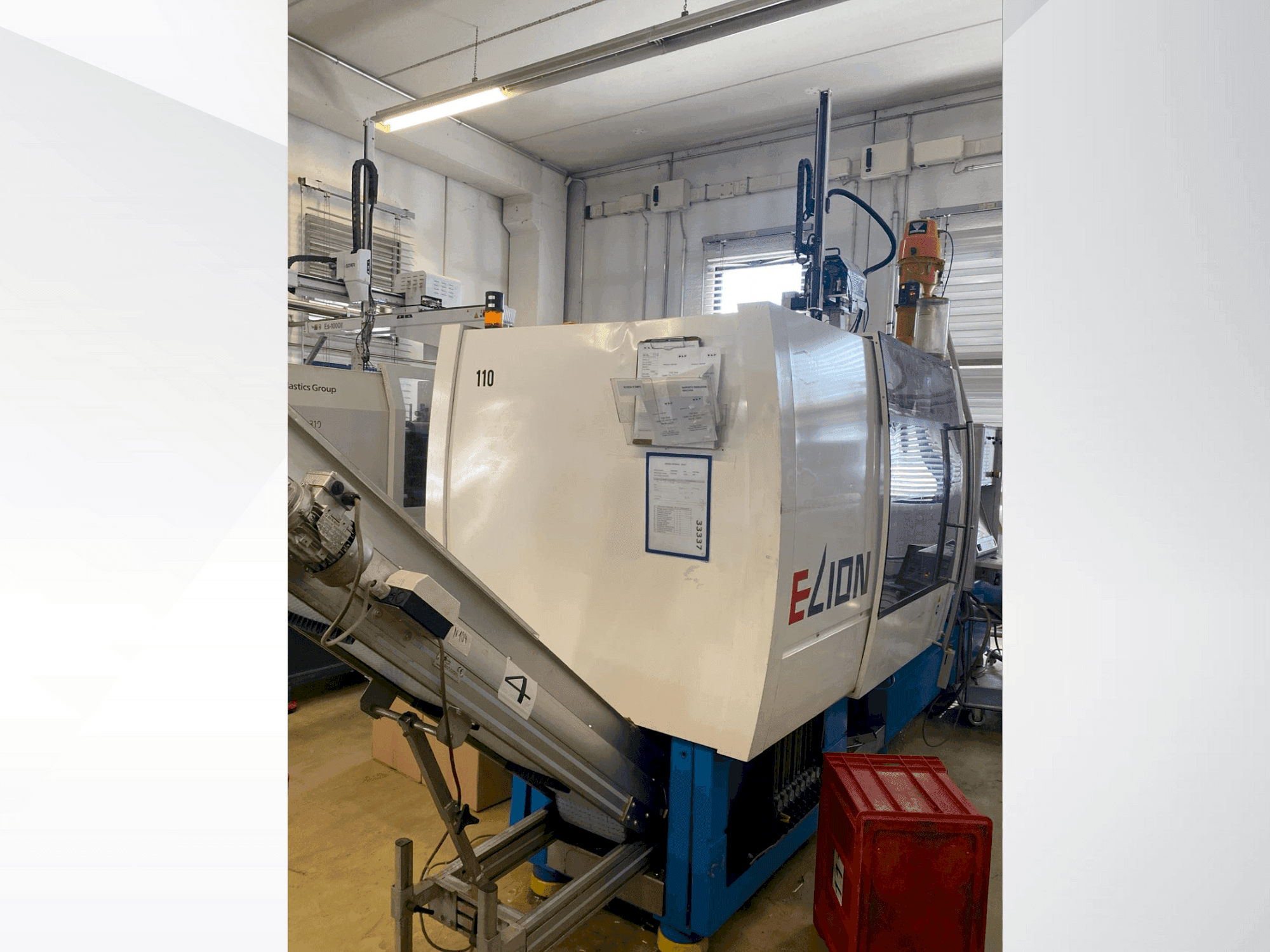

Front view of Netstal ELION 800-270F machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Netstal ELION 800-270F

Photo Gallery

Netstal - ELION 800-270FCH-INJ-NET-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Netstal ELION 800-270F For Sale | gindumac.com

This Netstal ELION 800-270F was manufactured in 2009. A robust hydraulic injection moulding machine featuring a clamping force of 800 KN and a screw diameter of 40 mm. It supports a maximum shot volume of 160.8 cm³ and a shot weight of 154.3 g. Dimensions are 4776 mm in length, 1711 mm in width, and 2042 mm in height, weighing approximately 8.30 tons. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: Netstal
year: 2009
MODEL: ELION 800-270F
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine

Technical Information - Netstal ELION 800-270F

Dimensions

Machine Depth: 4776 mm
Machine Height: 2042 mm
Machine Weight: 8300 kg

Technical Specification

Clamping Force: 800 kN
Max. Shot Weight: 154.3 g
Screw Diameter: 40 mm

Additional Information

Additional equipment

Core pull: 0 units

Machine Benefits

Qualitative Machine Benefits

High injection pressure: 1690 bar
High injection flow rate: 314. 2 cm³/s (standard), 565. 5 cm³/s (power)

Technical Machine Benefits

Max metering stroke: 128 mm
Max shot volume: 160. 8 cm³
Standard injection flow rate: 314. 2 cm³/s // power injection flow rate: 565. 5 cm³/s
Max injection speed standard/power: 250 / 450 mm/s // max screw speed force/speed/master: 400 / 530 / 550 rpm
Max torque force: 480 nm // max torque speed: 330 nm // max torque master: 480 nm
Heating capacity: 17. 7 kw
Opening force: 800 kn // max retraction force: 27 kn
Max mold weight: 1174 kg
Dry cycle stroke: 1. 3 – 287 s – mm
Nozzle contact force: 25 / 50 kn // nozzle retraction stroke: 510 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
