Netstal - Elion 800-270DE-INJ-NET-2021-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Netstal Elion 800-270 For Sale | gindumac.com

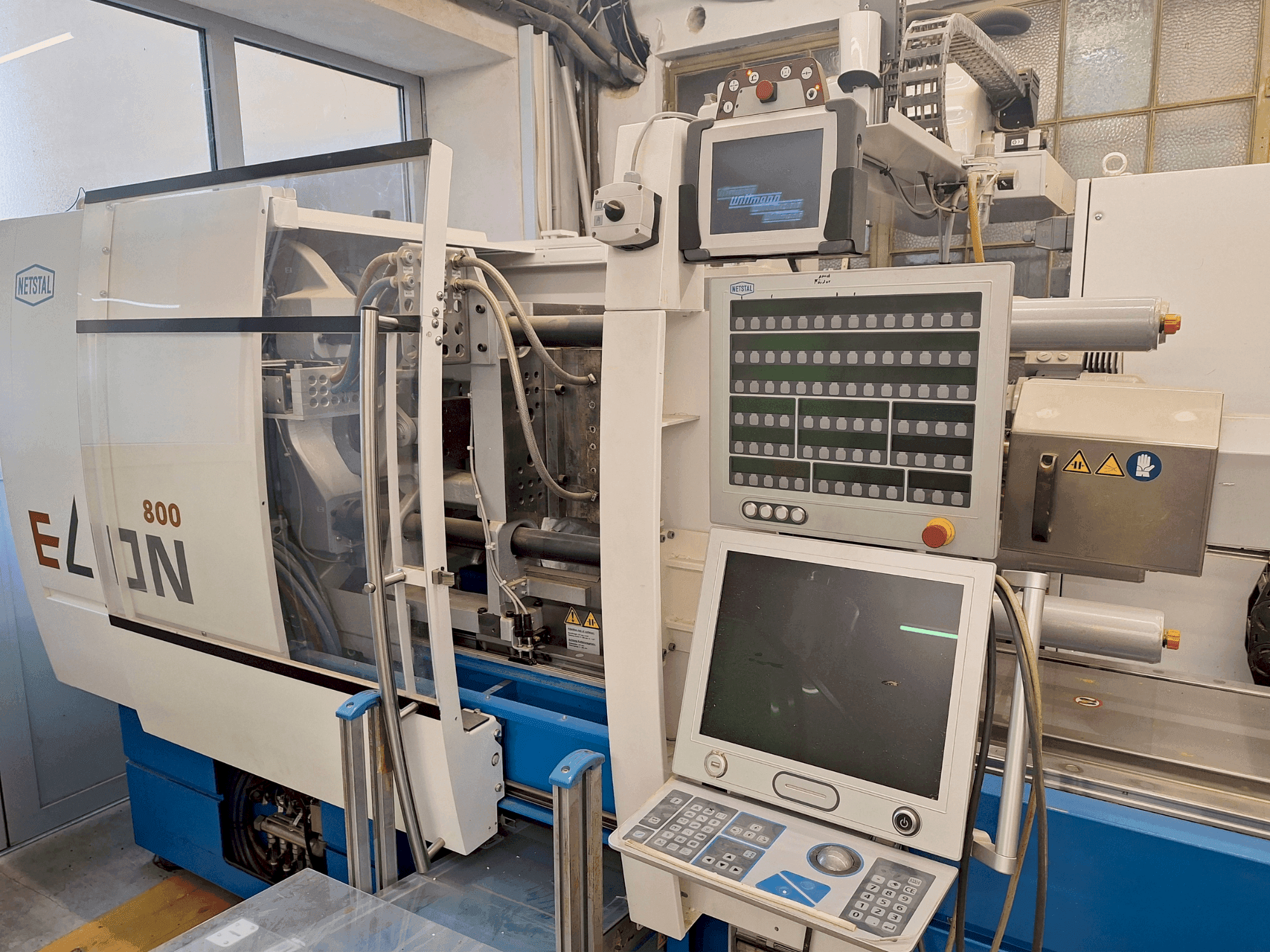

This Netstal Elion 800-270 was manufactured in 2021. It features a robust AXOS control system and a high-speed injection unit capable of 450 mm/s. The machine includes a screw diameter of 40 mm and a fully integrated 9 kW hydraulic unit. It supports a tool installation height range of 200–500 mm and is equipped with a Euromap 67 robot interface. If you are looking to get high-quality injection molding capabilities, consider the Netstal Elion 800-270 machine we have for sale. Contact us for more information.
Overview
- brand: Netstal
- year: 2021
- MODEL: Elion 800-270
- production hours: 5797
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Additional Information
Additional information
Injection Unit: 270 Powermaster with injection speed of up to 450 mm/s
Screw Diameter: 40 mm, type B, 3-zone screw
Nozzle Type: Pneumatically controlled needle valve nozzle with additional heating zone
Minimum Installation Height: 200 mm
Maximum Installation Height: 500 mm
Clamping Force: 800 kN
Minimum Installation Height: 200 mm
Maximum Installation Height: 500 mm
Hydraulic Unit: Fully integrated hydraulic unit 9 kW with 140 bar operating pressure
Pneumatics: 1 Air valve to 890 Liter, 1 additional Air valve to 890 Liter
Safety Cover Execution: Locked doors, top
Operator Identification: User recognition via PIN
EUROMAP 67: Standard + dynamic retraction
Interfaces: Colour feeder, Freely Configurable DIO: 4x Output/2x InputTool Monitoring: Available on DFP
Voltage Fluctuation Compensation: UPS present
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
